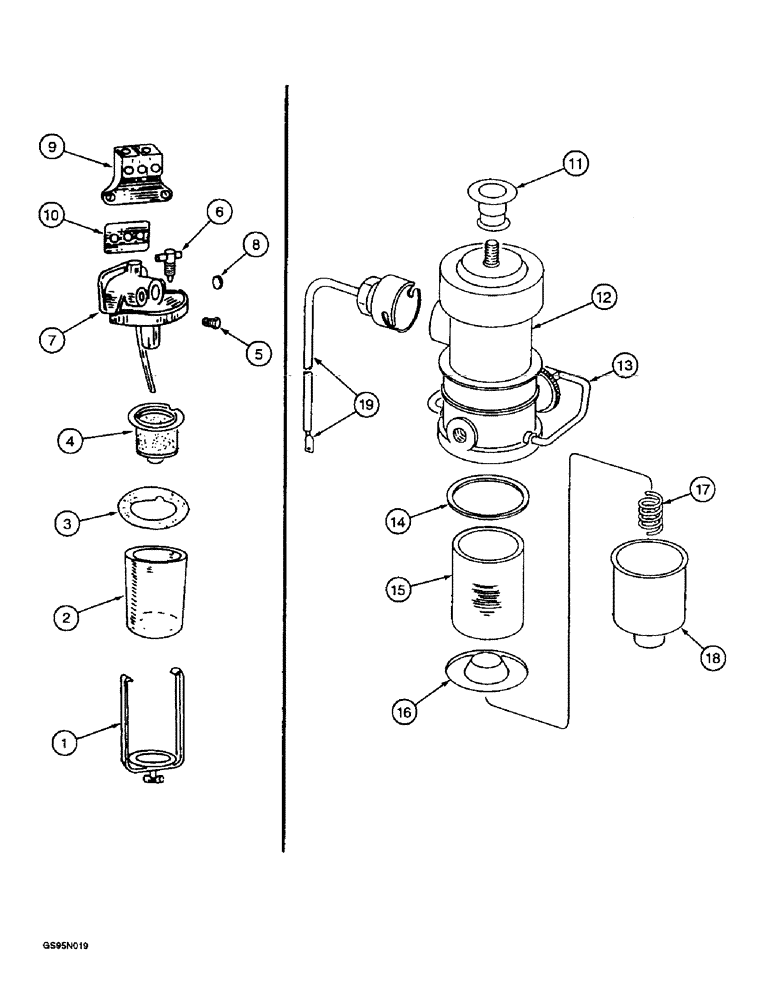

Запчасти Case IH D-301 (3-64) - WATER TRAP AND ELECTRIC FUEL PUMP 403 COMBINES, WATER TRAP

251355R91

TRAP

ASSEMBLY - water, Includes: Ref. 1 - 8, no longer available

1шт.

1

60878DX

BALL

BAIL - water trap, includes thumb screw

1шт.

2

60877D

BOWL

- water trap

1шт.

3

260708R2

GASKET

- water trap bowl

1шт.

4

251348R91

SCREEN

- water trap

1шт.

5

60871DA

SCREW - water trap vent, no longer available

1шт.

6

279173R1

CAPSCREW,3/8" x 1 5/32"

SCREW - water trap drain

1шт.

7

251380R91

TOP

- water trap, no longer available

1шт.

8

24805D

PLUG

- expansion, 3/8 inch, type no. 1

1шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, used with top 251380R91, item 7 (Replaces screw 179893)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with top 251380r91, item 7 (Replaces washer 103323) 1/2"

1шт.

9

9311D

BRACKET - water trap, no longer available

1шт.

10

51527DC

GASKET

- water trap

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

891588C91

PUMP

ASSEMBLY - electric, 12 volt (Replaces pump assembly 306274R91, Includes: Ref. 11 - 19

1шт.

11

313602R1

COVER - rubber pulse chamber, no longer available

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - pump, order pump assembly 891588C91 above

1шт.

13

313603R91

BAIL - pump

1шт.

14

313604R1

GASKET

- fuel pump, no longer available

1шт.

15

313606R1

FILTER CARTRIDGE

FILTER - fuel bowl

1шт.

16

313607R1

BASE

- fuel bowl, no longer available

1шт.

17

313608R1

SPRING - fuel filter base, no longer available

1шт.

18

313605R1

BOWL - fuel filter pump

1шт.

19

306396R1

CONNECTOR - terminal, no longer available

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

(Replaces screw 180034) Hex, 1/4"-20 x 1 1/2", G5

1шт.

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex jam, 1/4 inch NC

1шт.
