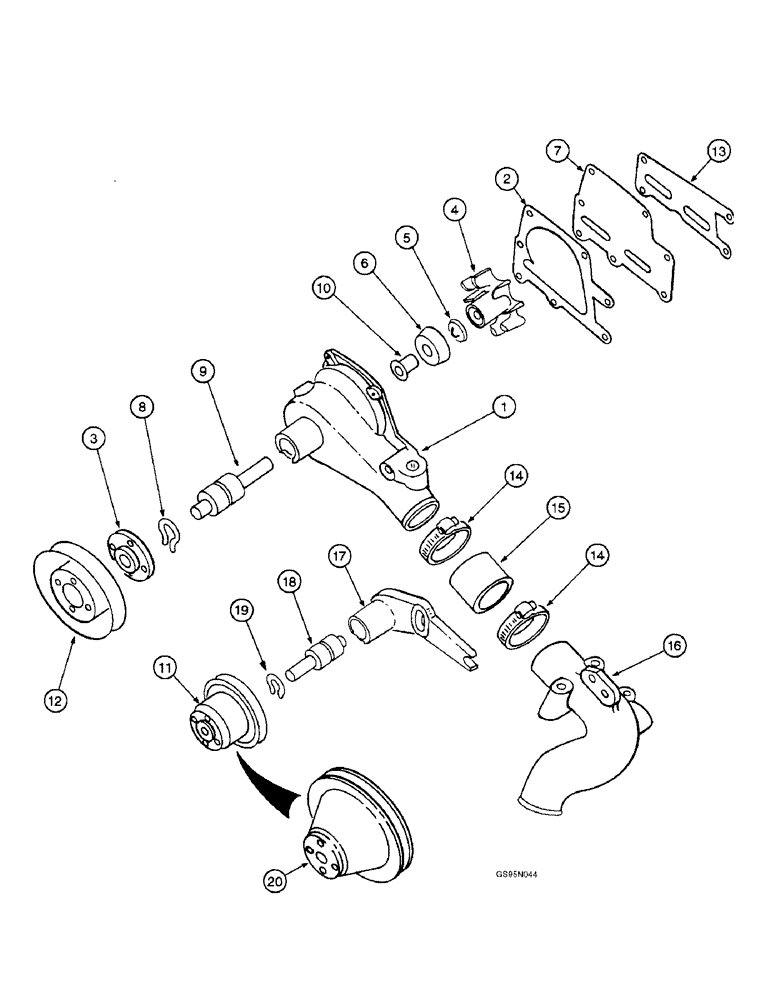

Запчасти Case IH D-301 (3-62) - WATER PUMP, ALL MACHINES WITH ENGINE SERIAL NUMBERS PRIOR TO 5680

601816C92

PUMP

PUMP ASSEMBLY - water, new, Includes: Ref. 1 - 10B

1шт.

749170C91

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

1928129C1

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - water pump, order pump assembly

1шт.

2

69674R1

GASKET

GASKET - water pump plate

1шт.

3

368501R2

HUB CAP

HUB - pulley

1шт.

4

387931R1

TORQ CONV IMPELLER

IMPELLER - water pump, also order seal kit 687161C92 below

1шт.

687161C92

KIT

KIT - seal, water pump (Replaces kits 687366C91 and 701331C93), Includes: Ref. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT - water pump, order kit 687161C92

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - water pump, order kit 687161C92

1шт.

7

69675R1

PLATE

PLATE - water pump

1шт.

441444

SPARE PART

SCREW - machine, slotted pan head, 1/4 NC x 1/2 inch, no longer available

3шт.

8

102069H

RING

RING - bearing retainer

1шт.

9

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT ASSEMBLY - water pump, includes bearing, Includes: Ref. 10

1шт.

10

151207R1

SLINGER

SLINGER - water pump (Replaces slinger 71351R1)

1шт.

10a

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket, 3/8 inch PT (Replaces plug 444660), Not Shown

1шт.

10b

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

PLUG - hex socket, 1/2 inch PT (Replaces plug 444788), Not Shown

3шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT - hex, 3/8 NC x 2-1/4 inch (Replaces screw 179848)

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT - hex, 3/8 NC x 2-1/2 inch (Replaces screw 179849)

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

11

372724R1

PULLEY

PULLEY - fan, engine serial numbers, Serial Range: prior-5680

1шт.

12

368502R1

PULLEY

PULLEY - water pump

1шт.

26080R1

BOLT,Hex, 1/4" - 28 x 1/2", Gr 8

SCREW - hex, 1/4 NC x 1/2 inch (Replaces screw 181309)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

4шт.

13

69676R2

GASKET

GASKET - water pump

1шт.

14

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Water pump inlet hose, Adjustable (Replaces clamp 279038R91) #32, 1.56/2.50 Type F Worm

2шт.

15

407008R1

HOSE,50.8mm ID x 914.4mm L

HOSE - water pump inlet, 1-3/4 x 2 x 3/16 inch

1шт.

16

312501R1

SPARE PART ELBOW - water inlet

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - hex, 3/8 NC x 2-3/4 inch (Replaces bolt 179850)

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.

17

379654R3

BRACKET

ADJUSTER - fan pulley, engine serial numbers prior to 5680, no longer available

1шт.

17

601751C2

SPARE PART ADJUSTER - fan pulley, not used with 453 or 715 combines, engine serial number 5680 and after, no longer available

1шт.

169071R1

PLUG

PLUG - adjuster cup, used with adjuster 601751C2

1шт.

18

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

SHAFT - fan adjuster, includes bearing, engine serial numbers prior to 5680

1шт.

18

324117R91

SHAFT

SHAFT - fan adjuster, includes bearing, not used with 453 or 715 combines, engine serial number 5680 and after, no longer available

1шт.

19

306630R1

RING

RING - bearing retainer, not used with 453 or 715 combines, engine serial number 5680 and after, no longer available

1шт.

19

102069H

RING

RING - bearing retainer, engine serial numbers, Serial Range: prior-5680

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

BOLT, , Engine serial numbers prior to 5680 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

BOLT, , Engine serial numbers prior to 5680 Hex, 1/2"-13 x 3 3/4", G5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

1шт.

495-21056

WASHER,1/2"

WASHER - flat, 9/16 x 1-3/8 x 7/64 inch (Replaces washer 446229)

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT, , Engine S/N 5680 and after Hex, 1/2"-13 x 1 3/4", G5

1шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

BOLT - hex, 1/2 NC x 4 inch, engine serial number 5680 and after

1шт.

20

152534C11

SPARE PART PULLEY - fan, not used with 453 or 715 combines, engine serial number 5680 and after, no longer available

1шт.
