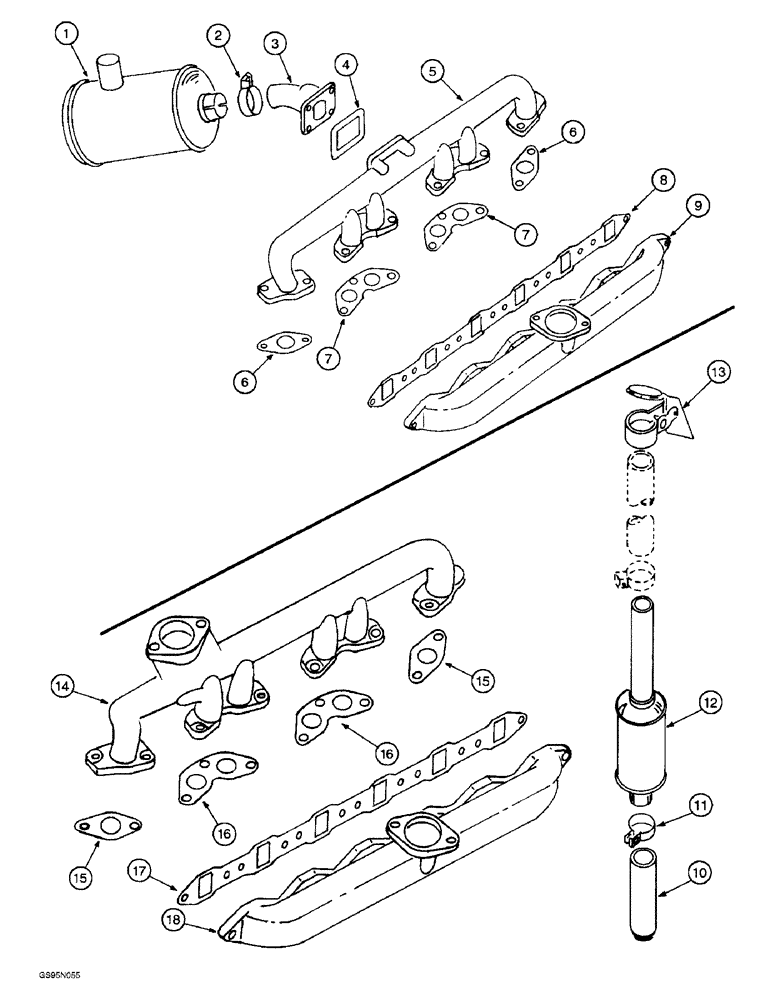

Запчасти Case IH D-301 (3-58) - INTAKE MANIFOLDS AND EXHAUST SYSTEMS

1

379370R92

MUFFLER

- exhaust

1шт.

2

31790DA

CLAMP

- exhaust muffler

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

1шт.

3

379934R1

ELBOW - exhaust pipe, no longer available

1шт.

133757R1

SCREW,Hex, 3/8" - 16 x 1 1/4"

- hex, 3/8 NC x 1-1/4 inch

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

4

228462R1

GASKET

- exhaust pipe elbow

1шт.

5

312650R1

MANIFOLD

- exhaust, no longer available

1шт.

39524DA

NUT

- stud, manifold

10шт.

113934H

WASHER

- stud, manifold

4шт.

6

278313R3

MANIFOLD GASKET

- exhaust manifold, end

2шт.

7

278314R1

MANIFOLD GASKET

- exhaust manifold, center

2шт.

8

305804R1

MANIFOLD GASKET

- air intake manifold

1шт.

9

332110R11

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 9A, no longer available

1шт.

403 Combines with Engine Serial Numbers 2196 to 7223 and 403 Hillside Combine with Engine Serial Number prior to 641

1шт.

9a

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 445684), Not Shown

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

12шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

12шт.

10

664386R1

PIPE

- exhaust, no longer available

1шт.

11

1502294C1

CLAMP

- exhaust muffler (Replaces clamp 350602R1)

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch (Replaces bolt 179842)

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

1шт.

12

403551R1

MUFFLER

- exhaust (Replaces muffler 384346R92)

1шт.

12

403551R1GV

MUFFLER

Value, Muffler

1шт.

13

D28028

CAP

- exhaust (Replaces exhaust cap 321574R91)

1шт.

14

278643R2

PIPE

MANIFOLD - exhaust

1шт.

39524DA

NUT

- exhaust manifold

10шт.

113934H

WASHER

- exhaust manifold

4шт.

15

278313R3

MANIFOLD GASKET

- exhaust manifold, end

2шт.

16

278314R1

MANIFOLD GASKET

- exhaust manifold, center

2шт.

17

305804R1

MANIFOLD GASKET

- intake manifold

1шт.

18

332110R11

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 18A, no longer available

1шт.

403 Combines with Engine Serial Numbers 7224 and After and 403 Hillside Combine with Engine Serial Number 641 and After

1шт.

18a

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 445684), Not Shown

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

12шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

12шт.
