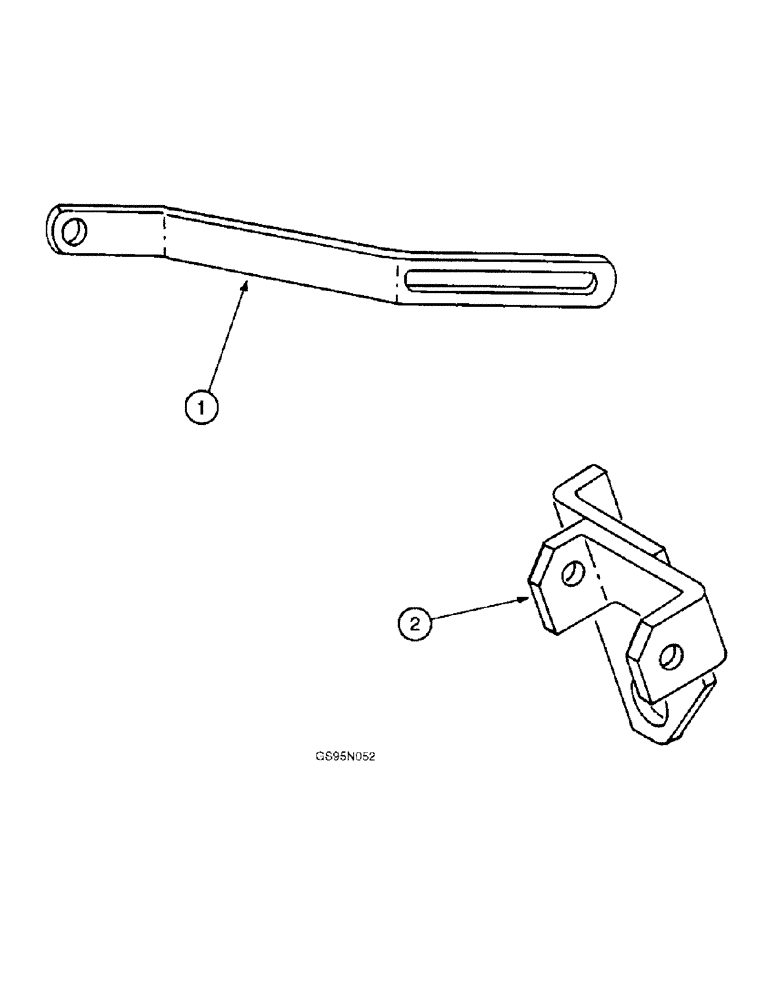

Запчасти Case IH D-301 (3-56) - ALTERNATOR-GENERATOR MOUNTING BRACKETS

1

393775R1

BRACE - alternator-generator

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch (Replaces screw 179819)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

95-81070

WASHER,.344" x 3/4" x .120"

- generator brace, flat, 11/32 x 3/4 x 1/8 inch (Replaces washer 557264R1)

1шт.

2

393774R22

BRACKET

- alternator mounting

1шт.

113-184

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

(Replaces screw 179819) Hex, 5/16"-18 x 1 1/8", G5, Full Thd

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces screw 179881) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

1шт.
