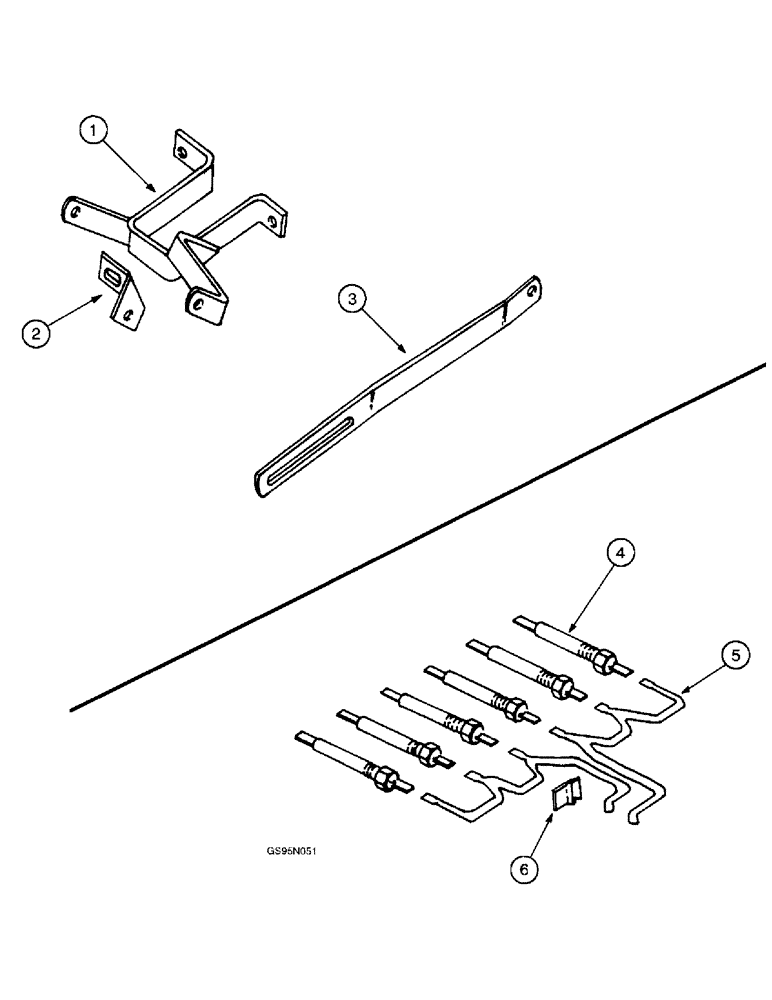

Запчасти Case IH D-301 (3-54) - ALTERNATOR-GENERATOR MOUNTING BRACKETS / GLOW PLUGS

1

379982R91

BRACKET - generator, no longer available

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

(Replaces 179858) Hex, 7/16"-14 x 1", G5, Full Thd

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

2шт.

2

379986R1

STIFFENER - generator

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces screw 179881) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

1шт.

3

379987R1

SUPPORT

BRACER - generator

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 179818)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

95-81070

WASHER,.344" x 3/4" x .120"

- generator brace, flat, 11/32 x 3/4 x 1/8 inch (Replaces washer 557264R1)

1шт.

4

304131R3

GLOW PLUG

PLUG - glow (Replaces plugs 343894R1 and 343977R1)

6шт.

4

343894R1

GLOW PLUG

PLUG - glow, no longer used, order plug 304131R3

6шт.

4

343977R1

GLOW PLUG

PLUG - glow, no longer used, order plug 304131R3

6шт.

5

319965R91

HARNESS

- glow plug cable

2шт.

6

1998754

BLOCK

- junction (Replaces junction block 42915D)

1шт.
