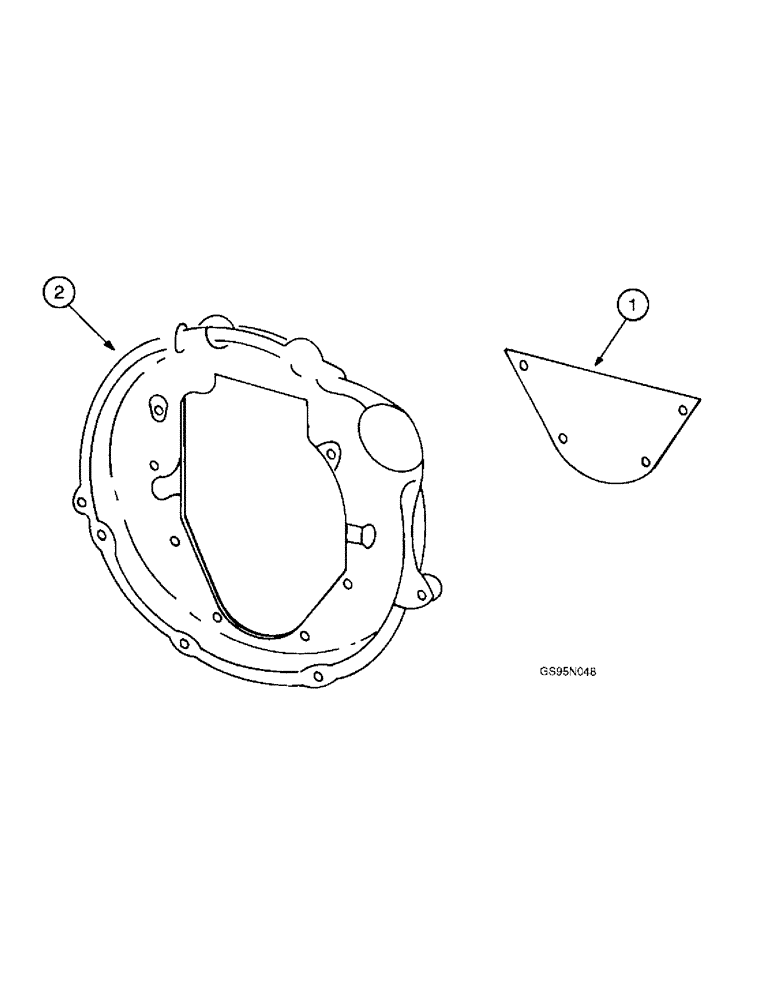

Запчасти Case IH D-301 (3-52) - CLUTCH HOUSING ADAPTER

1

367225R1

BAR

SEAL - housing adapter dust

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

2шт.

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch (Replaces washer 103340)

2шт.

2

376595R1

ADAPTER

- clutch housing

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces screw 179883)

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Replaces screw 179887) Hex, 1/2"-13 x 1 3/4", G5

2шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch (Replaces screw 179890)

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 102637) 1/2"-13, G5

4шт.

98051R1

COVER - timing indicator, no longer used

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan Phillips, 1/4 NC x 1/2 inch (Replaces screw 113955)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

95-11028

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch (Replaces washer 103339)

1шт.
