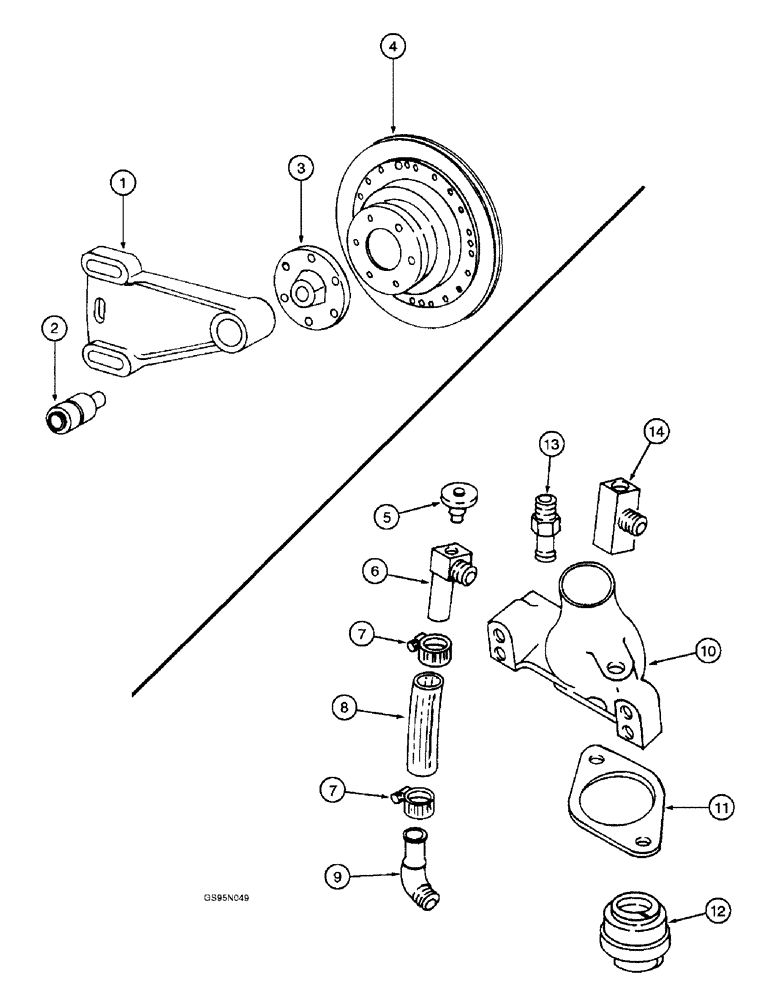

Запчасти Case IH D-301 (3-50) - ADJUSTER ASSEMBLY, 453 & 715 COMBINES / THERMOSTAT & HOUSING, WATER PUMP BY-PASS VALVE & CONNECTIONS

1

533837R91

ADJUSTER

- fan pulley

1шт.

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex, 7/16 NC x 2-1/4 inch (Replaces screw 179867)

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

2шт.

2

533840R91

SHAFT

- adjuster, includes bearing

1шт.

3

607328C11

HUB

- fan pulley, no longer available

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

6шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

6шт.

4

691562C1

PULLEY

- fan, and water pump (Replaces pulleys 671807C1 and 537071R1)

1шт.

5

538V

STEM - water pump by-pass valve, used with all machines except 453 and 715 combines

1шт.

6

320275R1

ELBOW UNION

VALVE - water pump by-pass, will work for 303483R11, used with all machines except 453 and 715 combines

1шт.

7

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable, Water pump by-pass (Replaces clamp 274085R91) #10, 0.56/1.06 Type F Worm

2шт.

8

673821C1

HOSE

- water pump by-pass, 3-1/4 inch (8.25 mm) long, cut from bulk hose 364359C1 below, used with 453 and 715 combines

1шт.

8a

437575C3

HOSE,0.63" ID x 6.50", SAE 30R1

Elbow, , Water Pump By-Pass, used with all Machines Except 453 and 715 Combines, Not Shown, Replaces Elbow 169192R1 0.63" ID x 6.50", SAE 30R1

1шт.

9

278089R1

FITTING

ELBOW - water pump by-pass hose, 45 degree

1шт.

10

278279R2

HOUSING

- thermostat, no longer available

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

(Replaces 179869) Hex, 7/16"-14 x 2 3/4", G5

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

2шт.

11

278280R2

GASKET

- thermostat housing (Replaces gasket 278280R1)

1шт.

12

313942R92

THERMOSTAT

ASSEMBLY - 170 - 190 degree Fahrenheit

1шт.

262882R1

GASKET

- thermostat

1шт.

13

320182R1

HOSE - water inlet hose, used with 453 and 715 combines, no longer available

1шт.

14

444138

TEE,1/2"-12 NPTF Fem Run x 1/2"-14 NPTF Male Br

- pipe, 1/2 inch NPT, used with 453 and 715 combines

1шт.

364359C1

HOSE

- bulk, 50 foot (15240 mm) long

1шт.
