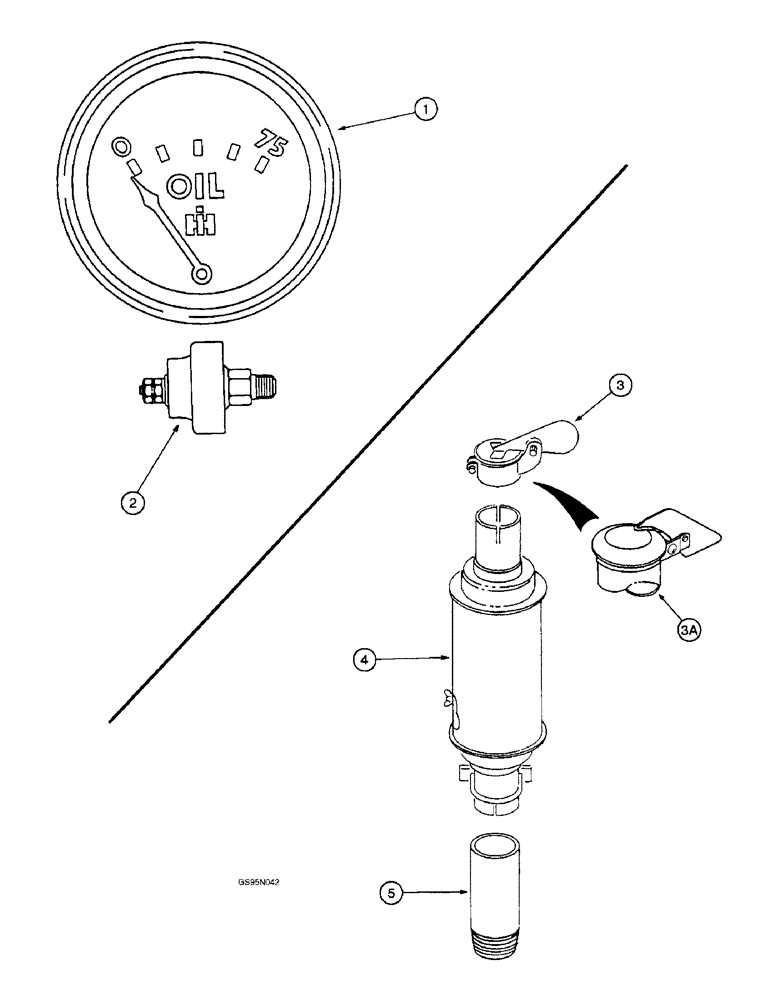

Запчасти Case IH D-301 (3-48) - OIL PRESSURE GAUGE AND SWITCH / SPARK ARRESTER, 403 AND 403 HILLSIDE COMBINES

1

629031R91

GAUGE

- oil pressure, used with 403 combines with serial numbers prior to 7224 and 403 hillside combines with engine serial numbers prior to 806, no longer available, order gauge 939263R91

1шт.

1

939263R91

GAUGE ASSY.

GAUGE - oil pressure, used with 403 combines with engine serial numbers 7224 and after and 403 hillside combines with engine serial numbers 806 and after

1шт.

2

104342A1

SENDER UNIT

SWITCH - engine oil pressure (Replaces switch 665014R91)

1шт.

3

321574R91

PLUG

CAP - exhaust, no longer available, order exhaust cap D28028

1шт.

3a

D28028

CAP

- exhaust (Replaces cap 321574R91)

1шт.

4

531815R1

ARRESTER

- spark, also order clamp 1502294C1 (Replaces arrester 391970R91)

1шт.

4a

1502294C1

CLAMP

- spark arrester, not shown

1шт.

5

664386R1

PIPE

- exhaust, no longer available

1шт.
