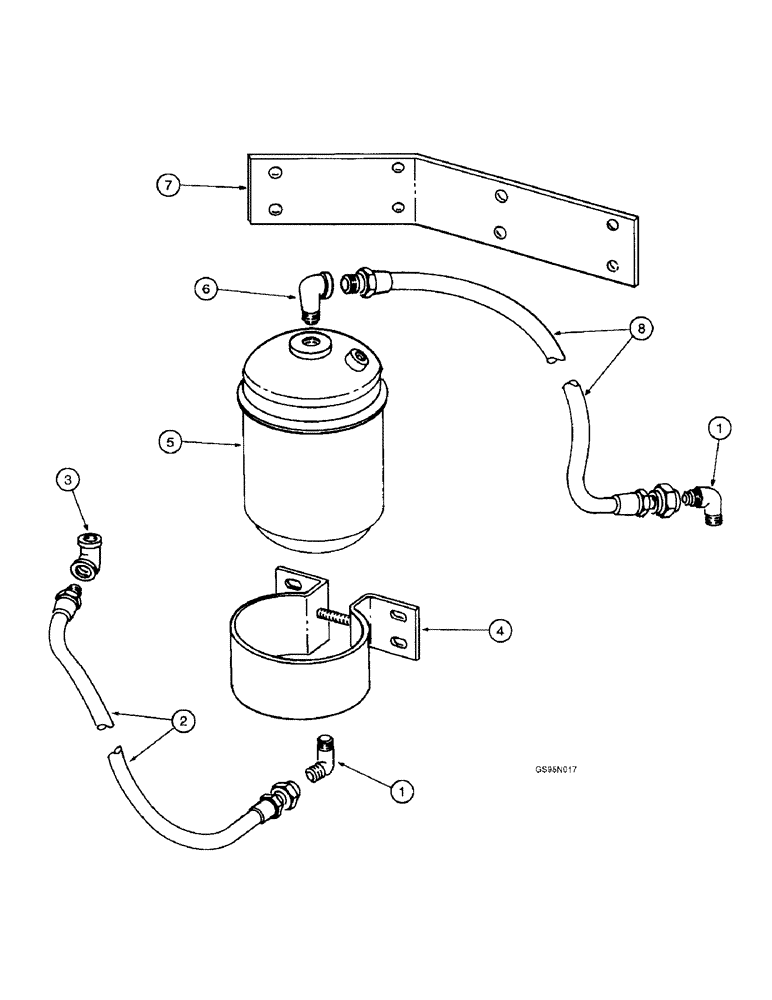

Запчасти Case IH D-301 (3-36) - WATCHDOG FUEL FILTER

384877R91

ATTACHMENT - watchdog fuel filter

1шт.

1

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- 90 degree x 5/8 inch x 1/4 inch NPT (Replaces elbow 118755)

2шт.

2

317805R91

HOSE ASSY.

HOSE - fuel filter inlet, no longer available

1шт.

3

137538

YOKE

ELBOW - pipe, 90 degree, 1/4 inch

1шт.

4

304104R91

HOLDER

BRACKET - fuel filter

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC (Replaces nut 102634).

4шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch (Replaces washer 103340)

4шт.

5

277025R94

FILTER CARTRIDGE

FILTER - watchdog fuel, no longer available

1шт.

6

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street (Replaces elbow 120499) 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

7

384878R1

BRACKET - fuel filter mounting

1шт.

8

275946R91

HOSE,7.92mm ID x 368.3mm L, SAE 30R2

- fuel filter outlet

1шт.
