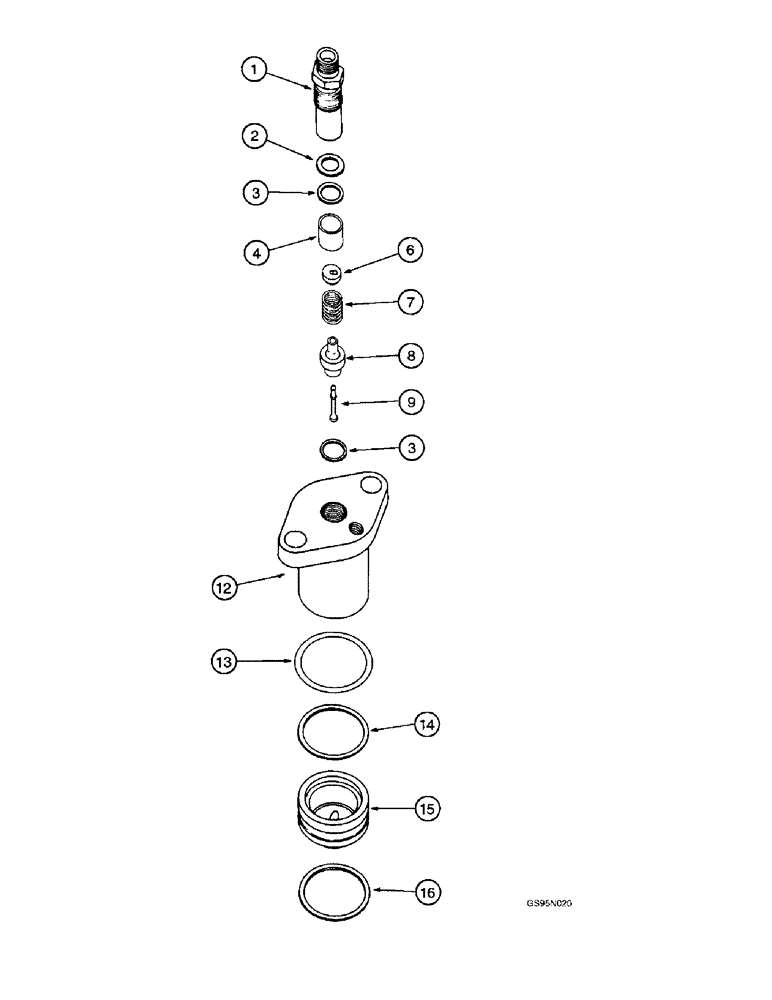

Запчасти Case IH D-301 (3-32) - INJECTION NOZZLE, IH

332495R91

NOZZLE INJECTION

NOZZLE ASSEMBLY - injection, Includes: Ref. 1 - 13

1шт.

1

278321R1

SOCKET

FITTING - nozzle

1шт.

2

279274R1

GASKET

- nozzle

1шт.

3

279274R1

GASKET

- nozzle valve

2шт.

4

310402R1

SPACER

SLEEVE - nozzle valve

1шт.

332496R91

NOZZLE CAP

VALVE ASSEMBLY - nozzle, Includes: Ref. 6 - 9

1шт.

6

310394R1

SEAT

- nozzle spring, 0.101, 0.102 inch

1шт.

6

310395R1

SEAT

- nozzle spring, 0.103, 0.104 inch

1шт.

6

310396R1

SEAT - nozzle spring, 0.105, 0.106 inch

1шт.

6

310397R1

SEAT

- nozzle spring, 0.107, 0.108 inch

1шт.

6

310398R1

SEAT

- nozzle spring, 0.109, 0.110 inch

1шт.

6

310399R1

SEAT

- nozzle spring, 0.111, 0.112 inch, no longer available

1шт.

6

310400R1

SEAT

- nozzle spring, 0.113, 0.114 inch, no longer available

1шт.

6

310401R1

SEAT

- nozzle spring, 0.115, 0.116 inch

1шт.

7

310393R1

SPRING

- nozzle valve

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT- nozzle valve, order valve assembly 332496R91 above

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle, order valve assembly 332496R91 above

1шт.

12

310389R1

BODY

- nozzle

1шт.

13

251044R2

O-RING,4.32mm Thk x 43.26mm ID

SEAL - dust, nozzle body

1шт.

14

260879R4

GASKET

- nozzle body

1шт.

15

278275R3

CHAMBER

- precombustion

1шт.

16

260879R4

GASKET

- precombustion chamber

1шт.
