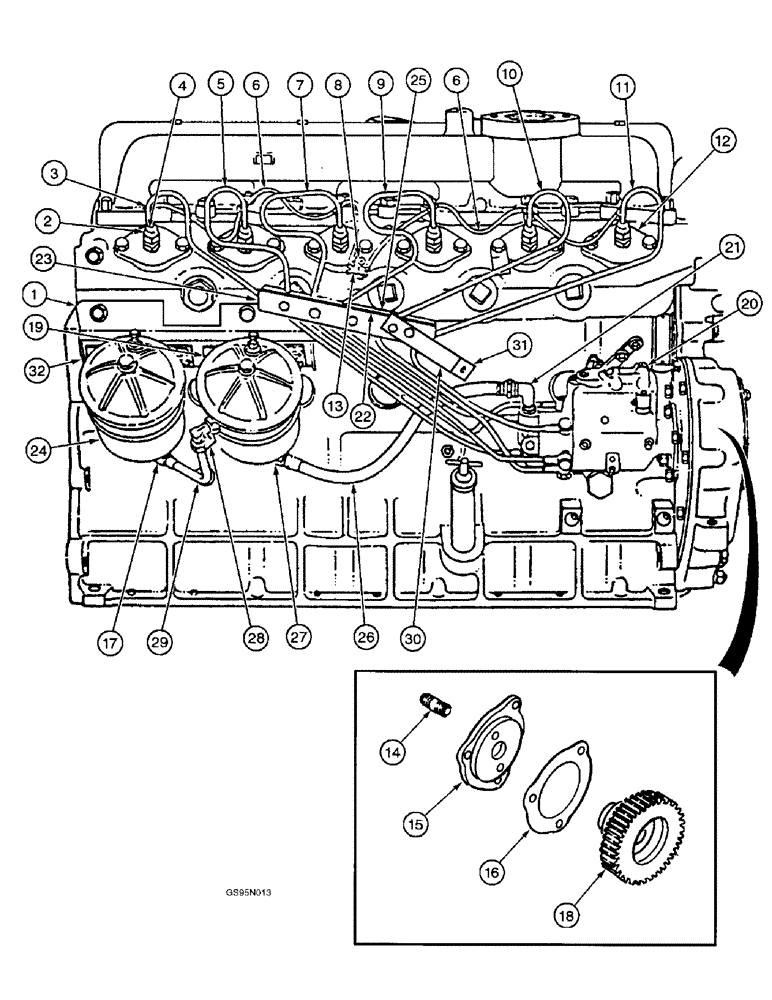

Запчасти Case IH D-301 (3-28) - FUEL INJECTION PUMP AND CONNECTIONS

1

316325R1

BRACKET - fuel filter, no longer available

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

(Replaces 179858) Hex, 7/16"-14 x 1", G5, Full Thd

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

2шт.

2

250617R1

NUT

- injection pipe, nozzle end

6шт.

3

278707R11

FUEL TUBE

PIPE - injection, cylinder no. 6

1шт.

4

250610R2

GUARD

SLEEVE - injection pipe

6шт.

5

278706R11

FUEL TUBE

PIPE - injection, cylinder no. 5

1шт.

6

319965R91

HARNESS

- glow plug cable

2шт.

7

278705R11

FUEL TUBE

PIPE - injection, cylinder no. 4

1шт.

8

304313R1

BRACKET

- junction block mounting

1шт.

9

278704R11

FUEL TUBE

PIPE - injection, cylinder no. 3

1шт.

10

278703R11

FUEL TUBE,28.33" Length

PIPE - injection, cylinder no. 2

1шт.

11

278702R21

INJECTION PIPE

PIPE - injection, cylinder no. 1

1шт.

12

332495R91

NOZZLE INJECTION

NOZZLE ASSEMBLY - injection, parts list Figure 3-32

6шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Replaces screw 179849)

12шт.

13

1998754

BLOCK

- junction (Replaces junction block 42915D)

1шт.

225-14210

NUT,#10-32

(Replaces nut 103088) #10-32

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw 100764)

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer 106497) #10

1шт.

14

303463R1

STUD

- injection pump adapter, no longer available

1шт.

15

303462R11

ADAPTER - injection pump, no longer available

1шт.

16

278347R1

GASKET

- injection pump adapter

1шт.

17

65834D

ELBOW

- auxiliary fuel filter outlet

1шт.

18

612084C1

GEAR

- injection pump, 54 teeth, will work for gear 278315R1, hub 278316R1 and washer 278317R1

1шт.

114497

NUT - hex jam, 9/16 inch NC, no longer used

1шт.

WASHER - lock, 9/16 inch (Replaces washer 103324)

1шт.

19

610932C91

FILTER CARTRIDGE

FILTER ASSEMBLY - final fuel, parts list page 3-35

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch (Replaces washer 103340)

2шт.

20

REF

INSTRUCTION

PUMP ASSEMBLY - injection, parts list Figures 3-20 - 3-26

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch, injection pump (Replaces washer 142619H)

2шт.

21

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- injection pump, 90 degree x 5/8 inch x 1/4 inch PT (Replaces elbow 118755)

1шт.

22

332491R2

PAD

- injection pipe clamp, order kit 701127C91, see Figrure 3-30

2шт.

Included in Pipe Clamp Service Kit 701127C91

1шт.

23

332489R1

CLAMP - injection pipe, drilled, order kit 701127C91 below

1шт.

Included in Pipe Clamp Service Kit 701127C91

1шт.

23

670004C11

CLAMP

ASSEMBLY - injection pipe, drilled, order kit 701127C91 below

1шт.

Included in Pipe Clamp Service Kit 701127C91

1шт.

19387R1

PIN - slotted spring, 7/16 x 3/4 inch

3шт.

26258R1

BOLT,Hex, 1/4" - 28 x 1 1/4", Gr 8

SCREW - hex, 1/4 NC x 1-1/8 inch, no longer available (Replaces screw 181316)

5шт.

95-11028

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch (Replaces washer 103339)

3шт.

Included in Pipe Clamp Service Kit 701127C91

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

3шт.

Included in Pipe Clamp Service Kit 701127C91

1шт.

24

REF

INSTRUCTION

FILTER ASSEMBLY - primary fuel, parts list page 3-35

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch (Replaces washer 103340)

4шт.

25

332490R1

CLAMP

- injection pipe, tapped

1шт.

26

275946R91

HOSE,7.92mm ID x 368.3mm L, SAE 30R2

- final fuel filter to injection pump

1шт.

27

137538

YOKE

ELBOW - final fuel filter outlet, 90 degree x 1/4 inch

1шт.

28

22510D

ELBOW UNION

ELBOW - final fuel filter inlet

1шт.

29

278335R11

TUBE

PIPE - auxiliary, fuel filter to final fuel filter

1шт.

30

312588R11

BRACKET ASSEMBLY - engine shut off wire, Includes: Ref. 31, no longer available

1шт.

31

275965R1

CLAMP

- engine shut off wire bracket, no longer available

1шт.

103101

CLEVIS

NUT - square, No. 10, no longer used

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw 100764)

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer 106497) #10

1шт.

32

674087C1

PLATE - fuel filter mounting

1шт.

701127C91

STRIPPER PACKAGE

KIT - pipe clamp service

1шт.
