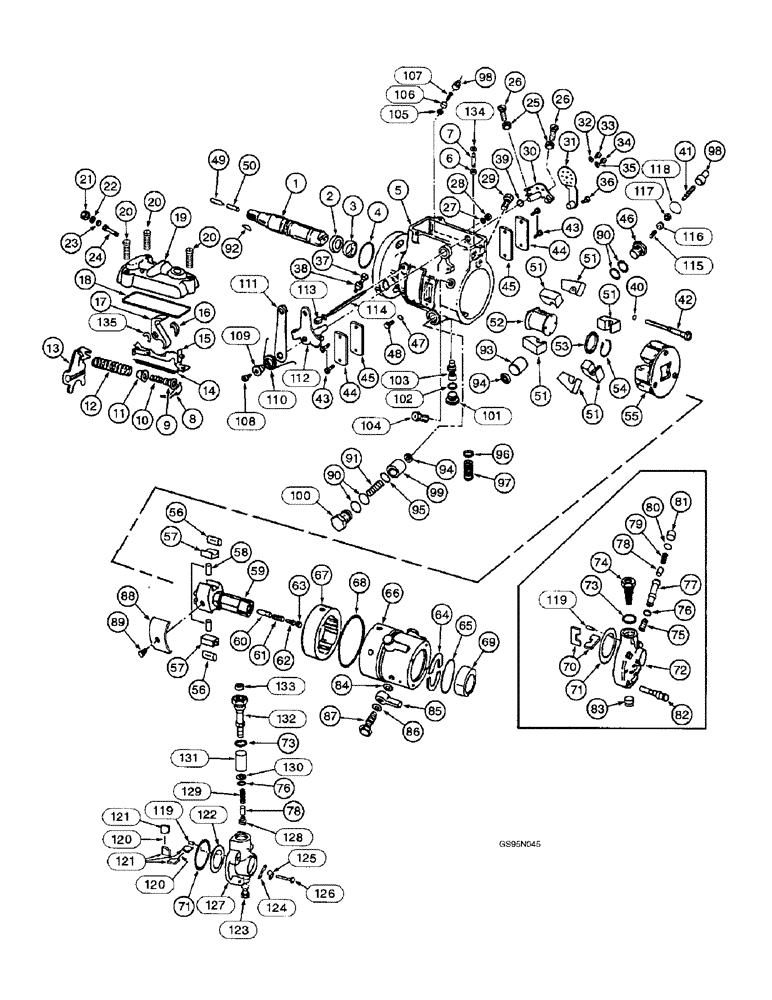

Запчасти Case IH D-301 (3-20) - FUEL INJECTION PUMP

749544C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured (North America only), component parts do not apply to the remanufactured assembly (Replaces pump assemblies 324339R91, 627544C91 and 702152C91)

1шт.

1934035C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

749545C91

PUMP

ASSEMBLY - fuel injection, remanufactured, used with 403 combines with gear drive or hydrostatic transmission, no longer available (Replaces pump assemblies 343681R91 and 702153C91)

1шт.

702652C91

PUMP ASSEMBLY - fuel injection, new, used with 403 hillside, 503 gear drive, 503 hydrostatic transmission and 715 combines, Includes: Ref. 1 - 135, no longer available

1шт.

1

A44710

SHAFT

- drive (Replaces shaft 304715R1)

1шт.

2

R14711

SEAL

- oil, drive shaft (Replaces seal 313288R1)

1шт.

3

R14711

SEAL

- oil, drive shaft (Replaces seal 313288R1)

1шт.

4

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- pilot tube, 1-1/16 ID x 1/8 inch (Replaces seal 304720R1)

1шт.

5

702858C91

HOUSING

ASSEMBLY - fuel injection pump, Includes: Ref. 5A

1шт.

5a

619449C1

BUSHING

- housing, Not Shown, no longer available

2шт.

6

304746R1

VALVE SPRING

SPRING - fuel metering valve

1шт.

7

630224C1

PUSH BUTTON

VALVE - fuel metering

1шт.

8

324188R91

ARM

- fuel metering valve

1шт.

9

368015R1

RETAINER - governor idling spring

1шт.

10

304810R1

SPRING

- governor idling, no longer available

1шт.

11

367998R1

GUIDE

- governor idling spring

1шт.

12

313699R1

VALVE SPRING

SPRING - governor control

1шт.

13

321367R1

ARM

- governor

1шт.

14

367995R1

VALVE SPRING

SPRING - governor linkage

1шт.

15

702350C1

LINKAGE

HOOK - governor linkage (Replaces hook 313241R91)

1шт.

16

368023R1

CAM

- fuel shut-off, no longer available

1шт.

17

304794R1

LEVER

- throttle shaft

1шт.

18

368012R1

SEAL

RING - seal, governor control cover

1шт.

19

304744R1

COVER ASSY

COVER - governor control

1шт.

20

319674R1

SCREW

- governor control cover hold-down, no longer available

3шт.

319676R1

WASHER

- cover hold down screw

3шт.

138534

LOCK WASHER,Int Tooth, #10

WASHER - lock, internal tooth, No.10

3шт.

21

51200274

NUT

- idle adjusting screw lock, cover (Replaces nut 368009R1)

1шт.

22

304728R1

WASHER

- idle adjusting screw cover

1шт.

23

304721R1

SEAL

- idle adjusting screw oil, cover (Replaces seal 304729R1)

1шт.

24

304788R1

SET SCREW

- idle adjusting, cover

1шт.

25

51200274

NUT

- shut-off lever adjusting screw (Replaces nut 368009R1)

2шт.

26

51200273

SCREW

- shut-off lever adjusting (Replaces screw 368002R1)

2шт.

27

304721R1

SEAL

- governor arm pivot shaft retaining nut

1шт.

28

368018R1

NUT

- governor arm pivot shaft retaining

1шт.

29

368810R1

SCREW - hydraulic head locking

1шт.

30

1802101C91

SHAFT AND LEVER - shut-off, no longer used (Replaces shaft and lever 368022R91 and 702394C1)

1шт.

R22936

WASHER

- shut-off shaft (Replaces washer 319744R1)

1шт.

31

G45337

ARM

- adjustable shut-off (Replaces arm 304748R91)

1шт.

32

138534

LOCK WASHER,Int Tooth, #10

WASHER - lock, internal tooth, No.10, shut-off lever positioning (Replaces washer 115545)

1шт.

33

217920

COVER

SCREW - hex socket, No.10-32 x 3/8 inch, shut-off lever retaining, no longer available

1шт.

34

368026R1

SCREW - shut-off lever positioning

1шт.

35

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - lock, internal tooth, No. 8, shut-off lever positioning screw (Replaces washer 115544)

1шт.

36

463-1086

SCREW,Hex Hd, #8-32 x 3/8"

- machine hex, No. 8 NC x 3/8 inch, shut-off arm fitting (Replaces screw 450643)

1шт.

37

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- throttle high idle adjustment (Replaces screw 304789R1)

1шт.

38

51200274

NUT

- throttle high idle adjusting screw lock (Replaces nut 368009R1)

2шт.

39

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Throttle shaft torque screw seal unit (Replaces seal 352219R1)

2шт.

40

368014R1

WASHER

- guide stud

1шт.

41

319691R1

CAPSCREW,1/4" x 1.385"

SCREW - advance adjusting

1шт.

42

313677R1

STUD

- governor idling spring guide

1шт.

43

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

- machine, slotted oval head, No. 8 x 5/16 inch, used with timing line cover

4шт.

44

304740R1

COVER ASSY

COVER - timing line

2шт.

45

NLS

NO LONGER SERVICED

- timing line cover (Replaces gasket 367979R1)

2шт.

46

680209C1

PLUG

- piston hole, no longer available

1шт.

47

324791R1

SEAL ASSY.

WASHER - torque screw hole plug

1шт.

48

20789R1

SCREW - torque hole plug, 1/4 NF x 1/2 inch, no longer used

1шт.

49

304716R1

KNOB

BUTTON - drive shaft thrust

1шт.

50

G48502

SPRING

- drive shaft thrust button (Replaces spring 304717R1)

1шт.

51

319669R1

WEIGHT

- governor

6шт.

52

321369R1

ARM

SLEEVE - governor thrust, no longer available

1шт.

53

368342R1

THRUST WASHER

- governor thrust

1шт.

54

100-1193

SNAP RING,#93, Ext

Ring, Snap, , governor weight (Replaces ring 368345R1) #93, Ext

1шт.

55

627946C91

RETAINER

ASSEMBLY - (Replaces retainer assembly 702586C91), Includes: Ref. 55A

1шт.

55a

615768C1

CLIP

RING - flexible retaining, Not Shown

1шт.

56

368805R1

ROLLER

- plunger actuating cam

2шт.

57

368804R1

SHOE (ASSY)

SHOE - plunger actuating cam

2шт.

304719R91

ROTOR

HEAD AND ROTOR ASSEMBLY - hydraulic, Includes: Ref. 58 - 66

1шт.

58

NSS

NOT SOLD SEPARAT

PLUNGER - rotor, order head and rotor assembly 304719R91

1шт.

59

NSS

NOT SOLD SEPARAT

ROTOR - order head and rotor assembly 304719R91

1шт.

60

606141C1

LOCK VALVE

VALVE - distributor rotor delivery, standard

1шт.

60

606142C1

LOCK VALVE

VALVE - distributor rotor delivery, oversize

1шт.

61

606144C1

VALVE SPRING

SPRING - distributor rotor delivery valve

1шт.

62

606145C1

LOCK ASSY

STOP - distributor rotor delivery valve

1шт.

63

317901R1

CAPSCREW,3/25" x 7/32"

SCREW - distributor rotor delivery valve retaining

1шт.

64

304800R1

WASHER

RETAINER - distributor rotor

2шт.

65

304801R1

RING

- distributor rotor retainer

1шт.

66

NSS

NOT SOLD SEPARAT

HEAD - hydraulic, order head and rotor assembly 304719R91

1шт.

67

613560C1

RING

- cam

1шт.

68

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

69

304745R1

GUIDE

LINER - transfer pump

1шт.

70

319991R1

WIPER BLADE

BLADE - transfer pump

2шт.

71

367982R1

O-RING,0.154" Width

SEAL - transfer pump, no longer available

1шт.

72

367985R91

COVER ASSY

PLATE - injection pump end

1шт.

73

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Cap and filter fuel inlet strainer

1шт.

74

368029R91

SIEVE

STRAINER - cap and filter fuel inlet

1шт.

75

367986R1

VALVE SPRING

SPRING - fuel pressure regulating valve plunger retaining

1шт.

76

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Regulating valve plunger sleeve seal

1шт.

77

319677R1

SLEEVE - end plate

1шт.

78

367988R1

PLUNGER

PISTON - fuel pressure regulating

1шт.

79

367989R1

VALVE SPRING

SPRING - fuel pressure regulating

1шт.

80

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Regulating valve plunger sleeve seal

1шт.

81

367990R1

PLUG - end plate sleeve retaining

1шт.

81

305139R1

PLUG

- end plate sleeve retaining, 0.020 inch

1шт.

81

367991R1

PLUG - end plate sleeve retaining, 0.030 inch, no longer available

1шт.

81

305140R1

PLUG - end plate sleeve retaining, 0.040 inch

1шт.

81

367992R1

PLUG - end plate sleeve retaining, 0.050 inch

1шт.

81

305141R1

PLUG

- end plate sleeve retaining, 0.060 inch

1шт.

81

305142R1

PLUG - end plate sleeve retaining, 0.070 inch

1шт.

81

317957R1

PLUG - end plate sleeve retaining, 0.080 inch, no longer available

1шт.

81

305144R1

PLUG

- end plate sleeve retaining, 0.090 inch

1шт.

82

304790R1

SCREW

- injection pump end plate, no longer available

4шт.

83

603936C1

PLUG

- injection pump end plate pipe

1шт.

84

367984R1

SEALING WASHER

WASHER - fuel line connector

6шт.

85

NSS

NOT SOLD SEPARAT

CONNECTOR - injection pipe, furnished as part of injection pipe

1шт.

86

367984R1

SEALING WASHER

WASHER - fuel line connector

6шт.

87

73613

SCREW

- fuel line connector (Replaces screw 367983R1)

6шт.

88

304797R1

VALVE SPRING

SPRING - plunger limiting leaf

1шт.

89

368806R1

SCREW - plunger limiting leaf spring adjusting

1шт.

90

319687R1

WIPER SEAL

- piston hole plug

4шт.

91

346653R1

VALVE SPRING

SPRING - advance, inner, no longer available

1шт.

91

346654R1

SPRING - advance, outer, no longer available

1шт.

92

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Drive shaft (Replaces key 124546) #6, 5/32" x 5/8", HT

1шт.

93

603920C1

PISTON - power

1шт.

94

368035R1

WASHER

- automatic advance slide

2шт.

95

372617R1

SHIM - advance spring, 0.0155 - 0.0175 inch

1шт.

95

368575R1

SHIM

- advance spring, 0.004 - 0.006 inch

1шт.

95

372618R1

SHIM

- advance spring, 0.032 - 0.034 inch

1шт.

96

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Heat locating screw

2шт.

97

1802905C1

SCREW

- head locating (Replaces screws 346648R91 and 627207C1)

1шт.

98

313287R1

COVER ASSY

CAP - advance adjusting screw

2шт.

99

319986R1

PISTON - load advance spring, no longer available

1шт.

627885C1

RING

- advance piston (Replaces ring 346659R1)

1шт.

100

319684R1

PLUG - piston hole, no longer available

1шт.

101

346742R1

PLUG - advance screw hole, no longer available (Replaces plug 319688R1)

1шт.

102

319689R1

WIPER SEAL

- advance screw hole

1шт.

103

347316R1

SCREW

- cam advance

1шт.

104

368810R1

SCREW - hydraulic head locking

1шт.

105

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Metering valve controlling torque screw seal nut (Replaces seal 352219R1)

1шт.

106

321313R1

NUT

- metering valve controlling torque screw lock

1шт.

107

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW - metering valve controlling torque

1шт.

108

217921

SCREW - hex socket, No.10 x 5/8 inch, throttle arm spring retainer, no longer available

1шт.

109

G49621

RETAINER

- throttle arm spring (Replaces retainer 304743R1)

1шт.

110

G48505

SPRING

- throttle arm (Replaces spring 304739R1)

1шт.

111

304738R91

LEVER

- throttle

1шт.

112

691471C1

SHAFT

- throttle (Replaces shafts 304749R91 and 702393C1)

1шт.

R22936

WASHER

- throttle shaft (Replaces washer 319744R1)

1шт.

113

368018R1

NUT

- governor arm pivot shaft retaining

1шт.

114

368016R1

SHAFT

- governor arm pivot

1шт.

115

319683R1

SPRING

- advance trimmer

1шт.

116

319692R1

GUIDE

- advance adjusting spring

1шт.

117

321313R1

NUT

- advance adjusting screw lock

1шт.

118

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Advance adjusting screw (Replaces seal 352219R1)

1шт.

119

368812R1

DOWEL

PIN - roll, end plate location

1шт.

120

346724R1

SPRING

- transfer blade

2шт.

121

619761C1

BLADE

- transfer pump

4шт.

122

346725R1

PLATE ASSY.

PLATE - thrust

1шт.

123

615695C1

PLUG

- end plate, also order seal 340214R1 below (Replaces plug 346712R1)

1шт.

123

340241R1

SEAL - end plate plug, not shown

1шт.

124

615489C1

LOCK ASSY

STRAP - end plate

2шт.

125

615733C1

CLIP

- screw retaining

4шт.

126

615491C1

SCREW

- end plate retaining

4шт.

127

346704R1

PLATE ASSY.

PLATE - end

1шт.

128

615142C1

SEAL

SEAL - regulating piston, order sleeve 1808814C1, item 132

1шт.

129

A43867

SPRING

- regulating (Replaces spring 346707R1)

1шт.

130

A43871

SEAL

- filter element (Replaces seal 346709R1)

1шт.

131

A43870

FILTER, FUEL

ELEMENT - filter (Replaces element 346708R1)

1шт.

132

1808814C1

SPOOL

SLEEVE - end plate

1шт.

133

346705R91

PLUG

- end plate adjusting

1шт.

134

313286R1

WASHER

SHIM - metering valve

1шт.

135

313690R1

LOCK ASSY

CLIP - shaft retaining

1шт.

1806929C91

GASKET KIT

- fuel injection pump overhaul gasket (Replaces kit 347784R91)

1шт.

12736D

ELECTRICAL WIRE

WIRE - enclosed seal, lead pump and sealing

5шт.

606491C1

PLATE ASSY.

PLATE - name

1шт.

168-1

DRIVE SCREW,Rnd Hd, #10 x 1/8"

- name plate, drive, round head, No. 10 x 1/8 inch (Replaces screw 145362)

2шт.
