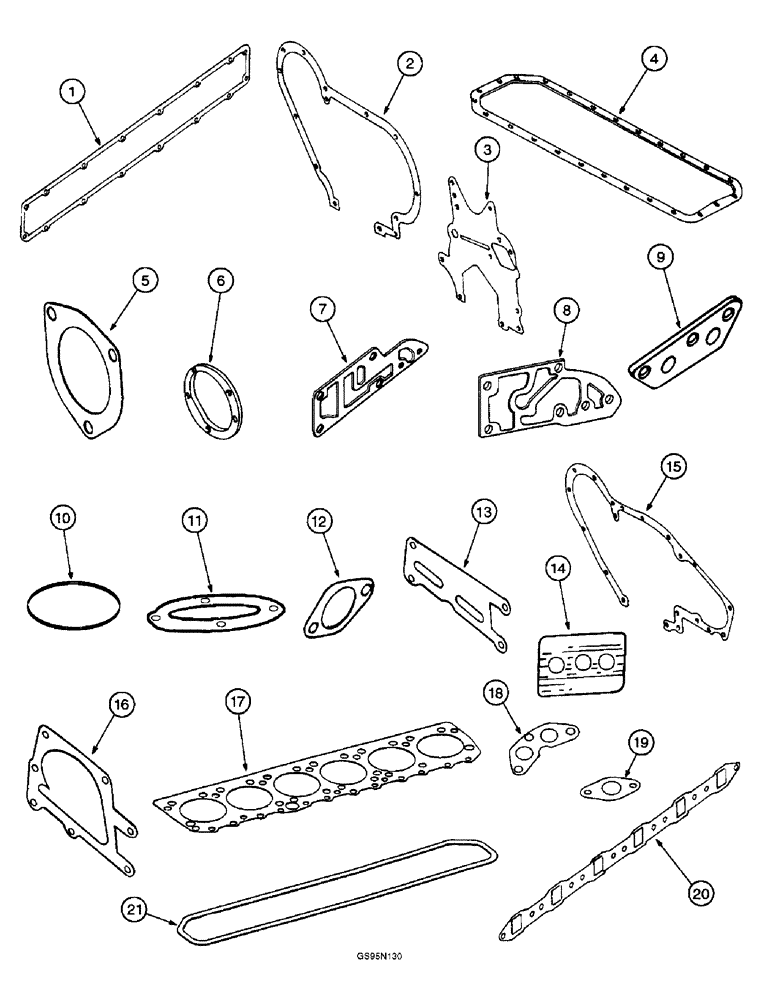

Запчасти Case IH D-301 (3-16) - SHORT BLOCK ENGINE, SERVICE KITS

749552C91

ENGINE - block, short, remanufactured (For North America only), no longer vailable

1шт.

1928047C1

CORE-ENGINE

RETURN NUMBER - For N.A. Only

1шт.

316204R91

ENGINE - block, short, new, consists of: camshaft, crankcase, crankshaft and bearings, connecting rods and bearings, pistons with pins and rings, valve tappets, no longer available

1шт.

When block 316204R91 is ordered, replace front cover plate with plate 312504R11 and short dowel pin in crankshaft flange with longer dowel pin 323752R1 from old crankcase.

1шт.

530035R91

PACKAGE

KIT - crankcase gasket, no longer available as a kit, order components (Replaces kit 332652R91), Includes: Ref. 1 - 16A

1шт.

1

369982R1

GASKET

- push rod cover

1шт.

2

278268R1

GASKET

- crankcase front cover

1шт.

3

278265R1

GASKET

- crankcase front plate

1шт.

4

369984R1

GASKET

- crankcase oil pan

1шт.

5

278347R1

GASKET

- injection pump adapter

1шт.

6

278270R3

GASKET

- injection pump gear cover

1шт.

7

349039R1

GASKET

- lubricating oil filter base

1шт.

8

601790C2

GASKET

- lubricating oil filter base

1шт.

3405HA

GASKET

- lubricating oil pressure relief valve plug

1шт.

9

349038R2

MANIFOLD GASKET

- oil cooler manifold

1шт.

10

304854R1

RING

GASKET - oil filter case

1шт.

3405HA

GASKET

- oil pan drain plug

1шт.

353936R3

GASKET

- oil pan shaft support

1шт.

11

69607R1

GASKET

- oil pump body

1шт.

12

369981R1

GASKET

- breather pipe flange

1шт.

251403R1

GASKET

- relief valve plug

1шт.

13

69676R2

GASKET

- water pump

1шт.

14

51527DC

GASKET

- water trap

1шт.

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Oil cooler to manifold -210, 70 Duro, .734" ID x .139" Thk

2шт.

304012R1

GASKET

- center tube

1шт.

15

312506R1

GASKET

- crankcase front cover

1шт.

632851R1

GASKET

- hydraulic gear pump

1шт.

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- pump adapter, 1-1/16 ID x 1/8 inch (Replaces O-ring 254954R1)

1шт.

16

69674R1

GASKET

- water pump plate

1шт.

16a

310665R1

PLUG

- rear bearing cap filler, Not Shown

2шт.

134403A1

GASKET KIT

KIT - gasket, valve grinding (Replaces kit 310446R95), Includes: Ref. 17 - 21A

1шт.

17

134400A1

CYLINDER HEAD GASKET

- cylinder head (Replaces gasket 601509C1)

1шт.

18

278314R1

MANIFOLD GASKET

- exhaust manifold center

2шт.

19

278313R3

MANIFOLD GASKET

- exhaust manifold ends

2шт.

20

305804R1

MANIFOLD GASKET

- intake manifold

1шт.

278280R2

GASKET

- thermostat housing

1шт.

21

278308R3

GASKET,1.19mm Thk

- valve cover

1шт.

21a

446210

WASHER

- valve cover, Not Shown

4шт.
