Запчасти Case IH D-282 (2-006) - CRANKCASE FRONT COVER AND IDLER GEAR, FOR 706 AND 2706 TRACTORS

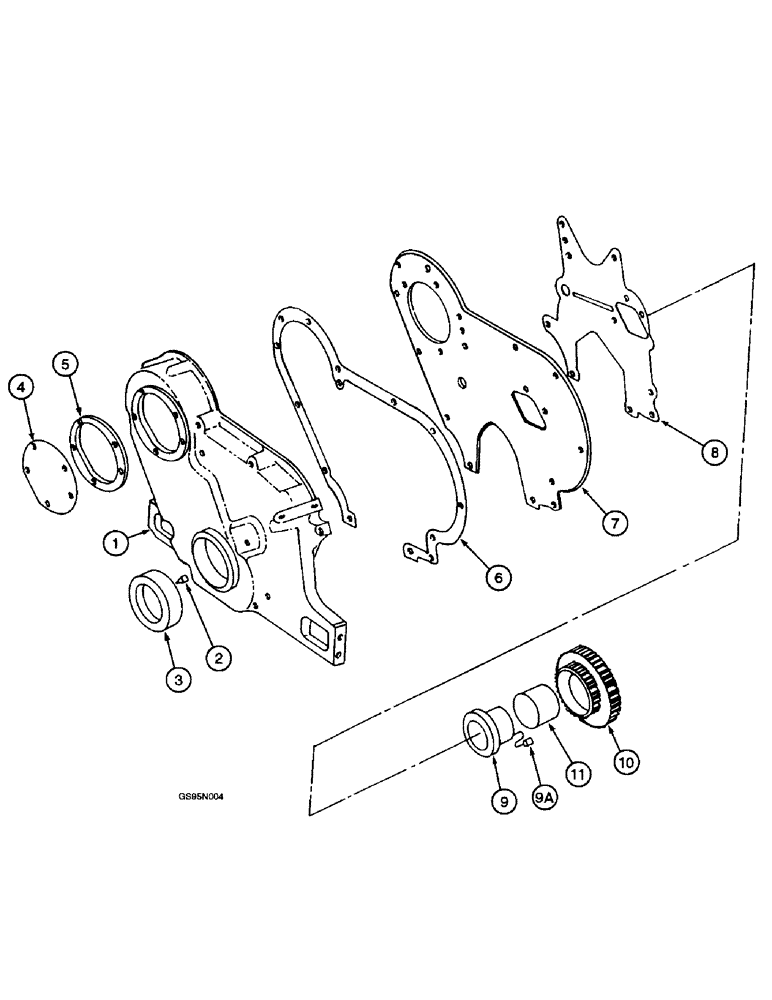

Схема запчастей Case IH D-282 - (2-006) - CRANKCASE FRONT COVER AND IDLER GEAR, FOR 706 AND 2706 TRACTORS
5
11
7
1
8
3
10
6
4
9a
2
9

Артикул

Название

Примечание

Количество

1

345263R11

COVER ASSEMBLY - crankcase front, used with 656 and 706 tractors, Includes: Ref. 2

1шт.

2

367572R1

INDICATOR

POINTER - timing

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces screw 179839)

6шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch (Replaces screw 179893)

6шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

6шт.

3

317549R91

OIL SEAL,58.22mm ID x 85.27mm OD x 12.27mm Thk

- crankshaft oil, no longer available, order seal 606750C91

1шт.

3

606750C91

SEAL

- crankshaft oil (Replaces seal 317549R91)

1шт.

4

278269R1

COVER ASSY

COVER - injection pump gear, no longer available

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

5шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

5шт.

5

278270R3

GASKET

- injection pump gear cover

1шт.

6

278268R1

GASKET

- crankcase front cover

1шт.

7

612151C11

PLATE - crankcase front, used with 656 tractors having engine serial number 77500 and after, no longer available

1шт.

7

278264R11

PLATE - crankcase front, used with 706 tractors and 656 tractors having engine serial numbers prior to 77500, no longer available

1шт.

674295C1

NUT - spline, used with plate 278264R11, item 7 above, no longer available

3шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

8

278265R1

GASKET

- crankcase front plate

1шт.

9

367580R11

HUB

SHAFT ASSEMBLY - idler gear, Includes: Ref. 9A, no longer available

1шт.

9a

NLS

NO LONGER SERVICED

DOWEL - idler gear shaft, 3/16 x 17/16 inch

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch (Replaces screw 179890)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

4шт.

10

278263R11

PINION

GEAR ASSEMBLY - idler, no longer available

1шт.

11

367578R1

BUSHING

- idler gear

1шт.

Выбрано товаров: 25
