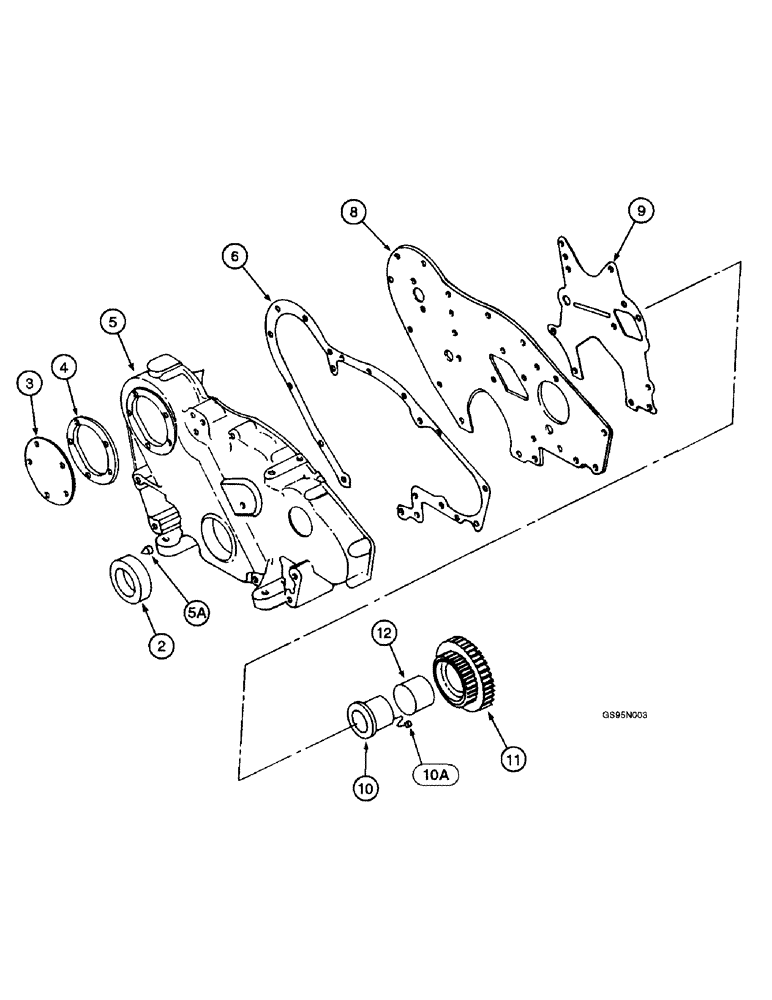

Запчасти Case IH D-282 (2-004) - CRANKCASE FRONT COVER AND IDLER GEAR, FOR 403 AND 615 COMBINES, 416 & 422 COTTON PICKERS

2

317549R91

OIL SEAL,58.22mm ID x 85.27mm OD x 12.27mm Thk

- crankshaft oil (Replaces seal 606750C91)

1шт.

2

606750C91

SEAL

- crankshaft oil , no longer available, order seal 317549R91

1шт.

3

278269R1

COVER ASSY

COVER - injection pump gear, no longer available

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

5шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

5шт.

4

278270R3

GASKET

- injection pump gear cover

1шт.

5

312505R31

COVER

ASSEMBLY - crankcase front, Includes: Ref. 5A, no longer available

1шт.

5a

367572R1

INDICATOR

POINTER - timing

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces screw 179883)

3шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch (Replaces screw 179893)

5шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces screw 179839)

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

8шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

6шт.

6

312506R1

GASKET

- crankcase front cover

1шт.

7

674295C1

NUT - spline, one used with plate 612181C11, four used with plate 312504R11, not shown, no longer available

1шт.

8

312504R11

COVER - crankcase front, no longer available, order cover 612181C11 below

1шт.

8

612181C11

COVER - crankcase front, will work in place of plate 312504R11, no longer available

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

9

278265R1

GASKET

- crankcase front plate

1шт.

10

367580R11

HUB

SHAFT ASSEMBLY - idler gear, Includes: Ref. 10A, no longer available

1шт.

10a

NLS

NO LONGER SERVICED

DOWEL - gear shaft, 3/16 x 7/16 inch (Replaces dowel 141150)

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch (Replaces screw 179890)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

1шт.

11

278263R11

PINION

GEAR ASSEMBLY - idler, no longer available

1шт.

12

367578R1

BUSHING

- idler gear

1шт.
