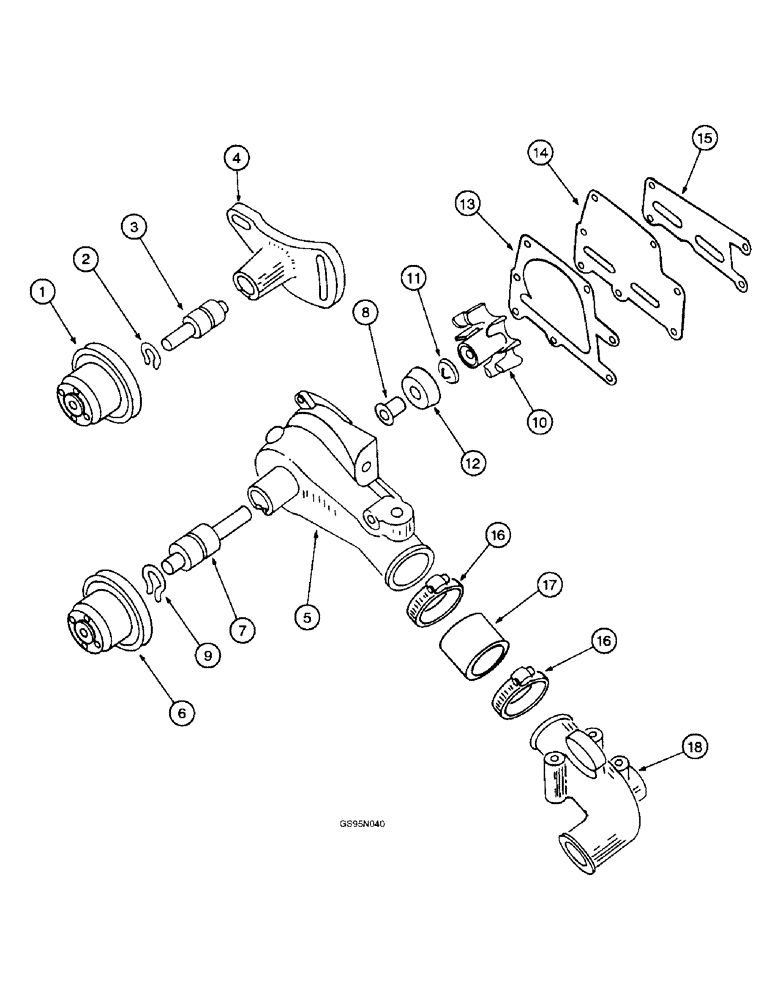

Запчасти Case IH D-282 (2-128) - WATER PUMP, INTERNATIONAL 656 TRACTORS

1

372724R1

PULLEY

PULLEY - fan

1шт.

2

327316R1

SNAP RING,1.188", Int, #118

Ring, Snap, , brg 1.188", Int, #118

2шт.

3

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

SHAFT - fan adjuster, includes bearing (Replaces shaft 399402R91)

1шт.

4

395818R2

ADJUSTER

ADJUSTER - fan pulley

1шт.

304016R1

BOLT (SPREADER)

SCREW - fan adjuster, no longer available

1шт.

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

BOLT - hex, 7/16 NC x 1-1/4 inch (Replaces bolt 179860)

1шт.

495-21050

WASHER,7/16"

WASHER - flat, 1/2 x 1-1/4 x 5/64 inch (Replaces washer 106264)

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

2шт.

701128C94

PUMP

PUMP ASSEMBLY - water, new, Includes: Ref. 5 - 14

1шт.

749610C93

REMAN-WATER PUMP

Remanufactured PUMP ASSEMBLY - water, component parts do not apply to the remanufactured assembly

1шт.

1928139C1

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - water pump

1шт.

6

395814R1

PULLEY

PULLEY - water pump, no longer available, order pulley 395815R2

1шт.

6

395815R2

PULLEY

PULLEY - water pump, sheet metal (Replaces pulley 395814R1)

1шт.

7

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT ASSEMBLY - water pump, includes bearing

1шт.

8

151207R1

SLINGER

SLINGER - water pump (Replaces slinger 71351R1)

1шт.

9

395816R1

RING

RING - retaining, no longer available

1шт.

10

387931R1

TORQ CONV IMPELLER

IMPELLER - water pump, also order water pump seal kit 687161C92 below

1шт.

687161C92

KIT

KIT - seal, water pump (Replaces kits 687366C91 and 701331C93), Includes: Ref. 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAT - water pump seal, order kit 687161C92

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - water pump, order kit 687161C92

1шт.

13

69674R1

GASKET

GASKET - water pump plate

1шт.

14

69675R1

PLATE

PLATE - water pump

1шт.

441444

SPARE PART

SCREW - machine, slotted pan head, 1/4 NC x 1/2 inch, no longer used

3шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT - hex, 3/8 NC x 2-1/2 inch (Replaces screw 179849)

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT - hex, 3/8 NC x 2-1/4 inch (Replaces screw 179848)

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT - hex, 3/8 NC x 2-1/2 inch (Replaces screw 179849)

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.

15

69676R2

GASKET

GASKET - water pump

1шт.

16

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Water pump inlet hose, Adjustable (Replaces clamp 279038R91) #32, 1.56/2.50 Type F Worm

2шт.

17

407008R1

HOSE,50.8mm ID x 914.4mm L

HOSE - water pump inlet

1шт.

18

278278R2

SPARE PART ELBOW - water inlet, no longer available

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - hex, 3/8 NC x 2-3/4 inch (Replaces screw 179850)

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.
