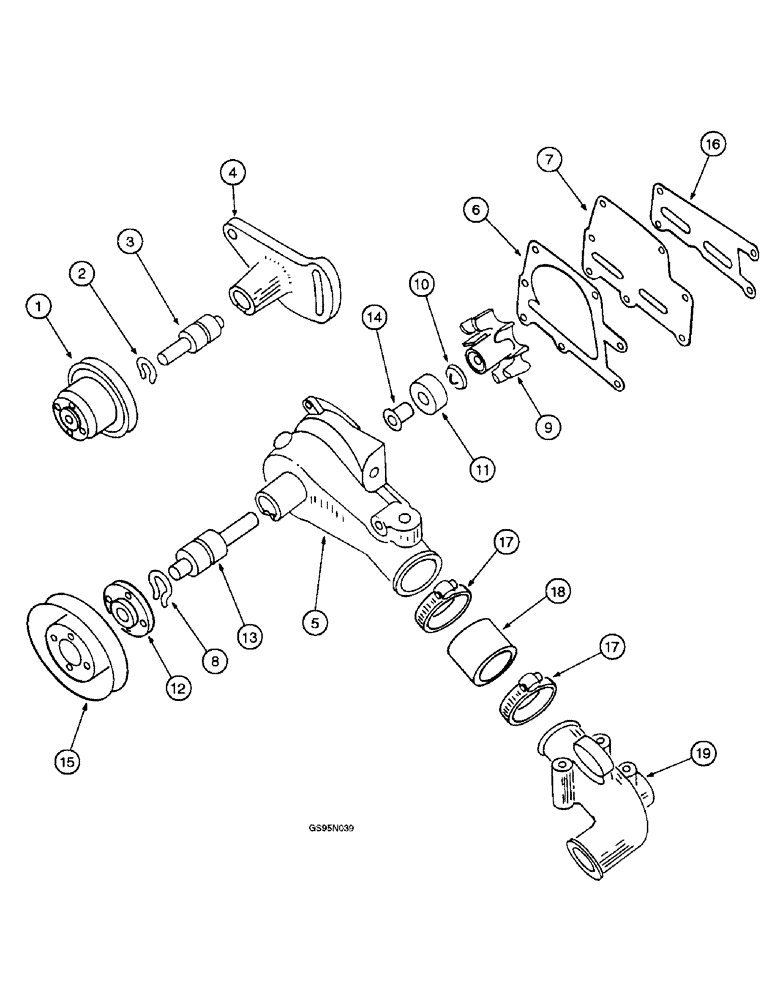

Запчасти Case IH D-282 (2-126) - WATER PUMP, 706 AND FARMALL 656 TRACTORS

1

378609R1

PULLEY

PULLEY - fan, machines with serial numbers 46441 to 49663 and Farmall 656 tractors with gear drive

1шт.

1

372724R1

PULLEY

PULLEY - fan, machines with serial number 49664 and after

1шт.

2

102069H

RING

RING - bearing retainer

2шт.

3

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

SHAFT - fan adjuster, includes bearing (Replaces shaft 399402R91)

1шт.

4

609400C1

ADJUSTER

ADJUSTER - fan pulley, will work for adjuster 368508R1

1шт.

304016R1

BOLT (SPREADER)

SCREW - fan adjuster, no longer available

1шт.

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

BOLT - hex, 7/16 NC x 1-1/4 inch (Replaces bolt 179860)

1шт.

M86687

SPARE PART WASHER - fan adjuster, no longer used

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

2шт.

601816C92

PUMP

PUMP ASSEMBLY - water, new, Includes: Ref. 5 - 14

1шт.

749170C91

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

1928129C1

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - water pump, order pump assembly

1шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket, 3/8 inch PT (Replaces plug 444660)

1шт.

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

PLUG - hex socket, 1/2 inch PT (Replaces plug 438159)

2шт.

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

PLUG - hex socket, 1/2 inch PT (Replaces plug 444788)

1шт.

6

69674R1

GASKET

GASKET - water pump plate

1шт.

7

69675R1

PLATE

PLATE - water pump

1шт.

441444

SPARE PART

SCREW - machine, slotted pan head, 1/4 NC x 1/2 inch, no longer used

3шт.

8

102069H

RING

RING - bearing retainer

1шт.

9

387931R1

TORQ CONV IMPELLER

IMPELLER - water pump, also order water pump seal kit 687161C92 below

1шт.

687161C92

KIT

KIT - seal, water pump (Replaces kits 687366C91 and 701331C93), Includes: Ref. 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT - water pump, order kit 687161C92

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - water pump, order kit 687161C92

1шт.

12

368501R2

HUB CAP

HUB - pulley (Replaces hub392713R1)

1шт.

13

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT ASSEMBLY - water pump, includes bearing, Includes: Ref. 14

1шт.

14

151207R1

SLINGER

SLINGER - water pump (Replaces slinger 71351R1)

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT - hex, 3/8 NC x 2-1/4 inch (Replaces screw 179848)

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT - hex, 3/8 NC x 2-1/2 inch (Replaces screw 179849)

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

15

368502R1

PULLEY

PULLEY - water pump, cast

1шт.

26080R1

BOLT,Hex, 1/4" - 28 x 1/2", Gr 8

SCREW - hex, 1/4 NC x 1/2 inch (Replaces screw 181309)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

4шт.

16

69676R2

GASKET

GASKET - water pump

1шт.

17

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Water pump inlet hose, Adjustable (Replaces clamp 279038R91) #32, 1.56/2.50 Type F Worm

2шт.

18

407008R1

HOSE,50.8mm ID x 914.4mm L

HOSE - water pump inlet, 1-3/4 x 2 x 3/16 inch

1шт.

19

278278R2

SPARE PART ELBOW - water inlet, no longer available

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - hex, 3/8 NC x 2-3/4 inch (Replaces bolt 179850)

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.
