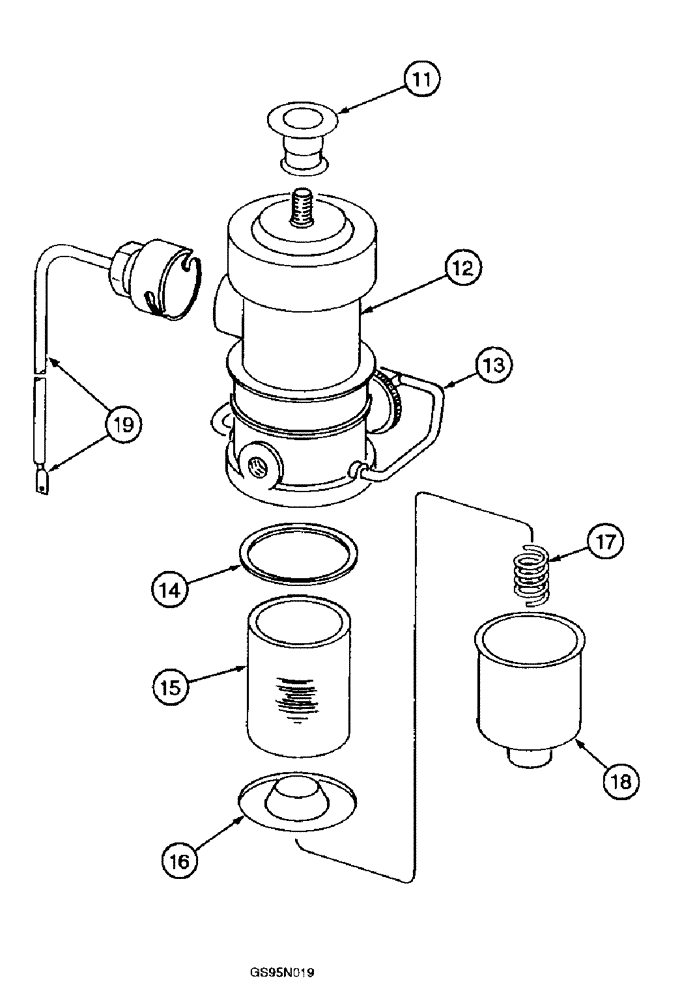

Запчасти Case IH D-282 (2-122[B]) - ELECTRIC FUEL PUMP, 403 COMBINES

891588C91

PUMP

ASSEMBLY - electric, 12 volt (Replaces pump assembly 306274R91), Includes: Ref. 11 - 19

1шт.

11

313602R1

COVER - rubber pulse chamber, no longer available

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - pump, order pump assembly 891588C91 above

1шт.

13

313603R91

BAIL - pump

1шт.

14

313604R1

GASKET

- fuel pump, no longer available

1шт.

15

313606R1

FILTER CARTRIDGE

FILTER - fuel bowl

1шт.

16

313607R1

BASE

- fuel bowl, no longer available

1шт.

17

313608R1

SPRING - fuel filter base

1шт.

18

313605R1

BOWL - fuel filter pump

1шт.

19

306396R1

CONNECTOR - terminal, no longer available

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

(Replaces screw 180034) Hex, 1/4"-20 x 1 1/2", G5

1шт.

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex jam, 1/4 inch NC

1шт.
