Запчасти Case IH D-282 (2-122[A]) - WATER TRAP, 403 COMBINES

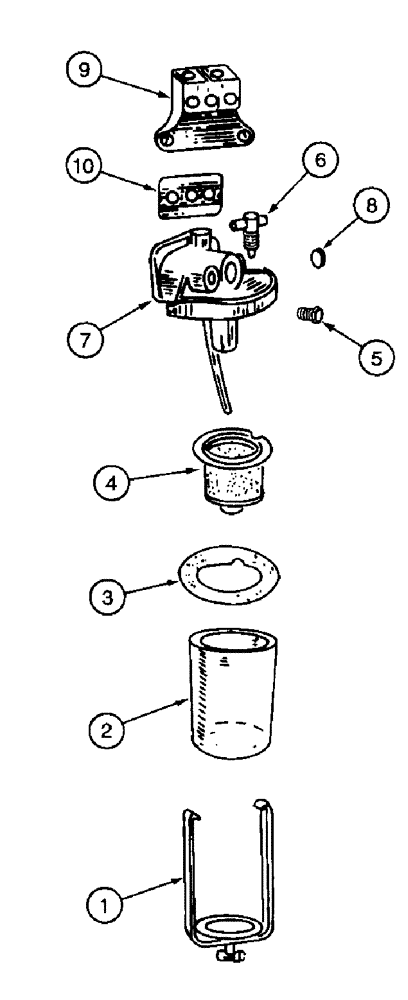

Схема запчастей Case IH D-282 - (2-122[A]) - WATER TRAP, 403 COMBINES
6
4
8
10
1
3
7
2
5
9

Артикул

Название

Примечание

Количество

251355R91

TRAP

ASSEMBLY - water, no longer available, Includes: Ref. 1 - 8

1шт.

1

60878DX

BALL

BAIL - water trap, includes thumb screw

1шт.

2

60877D

BOWL

- water trap

1шт.

3

260708R2

GASKET

- water trap bowl

1шт.

4

251348R91

SCREEN

- water trap

1шт.

5

60871DA

SCREW - water trap vent, no longer available

1шт.

6

279173R1

CAPSCREW,3/8" x 1 5/32"

SCREW - water trap drain

1шт.

7

251380R91

TOP

- water trap, no longer available

1шт.

8

24805D

PLUG

- expansion, 3/8 inch, type no. 1

1шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch, used with top 251380R91, item 7 above (Replaces screw 179893)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with top 251380R91, item 7 above (Replaces washer 103323) 1/2"

1шт.

9

9311D

BRACKET - water trap, no longer available

1шт.

10

51527DC

GASKET

- water trap

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

Выбрано товаров: 16
