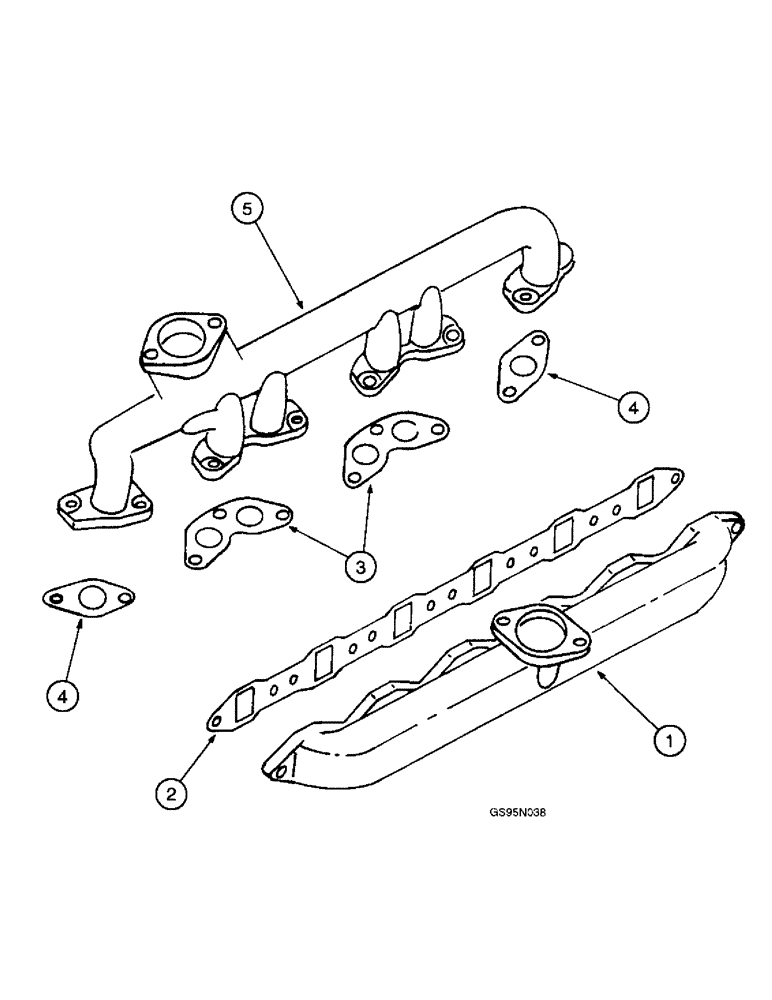

Запчасти Case IH D-282 (2-120) - INTAKE AND EXHAUST MANIFOLD, ALL MACHINES EXCEPT 403 COMBINES

1

332110R11

MANIFOLD

ASSEMBLY - intake, Includes: Plug, no longer available

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 445684)

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

12шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

12шт.

2

305804R1

MANIFOLD GASKET

- intake manifold

1шт.

3

278314R1

MANIFOLD GASKET

- exhaust manifold center

2шт.

4

278313R3

MANIFOLD GASKET

- exhaust manifold end

2шт.

5

278643R2

PIPE

MANIFOLD - exhaust

1шт.

39524DA

NUT

- exhaust manifold

10шт.

113934H

WASHER

- exhaust manifold

10шт.
