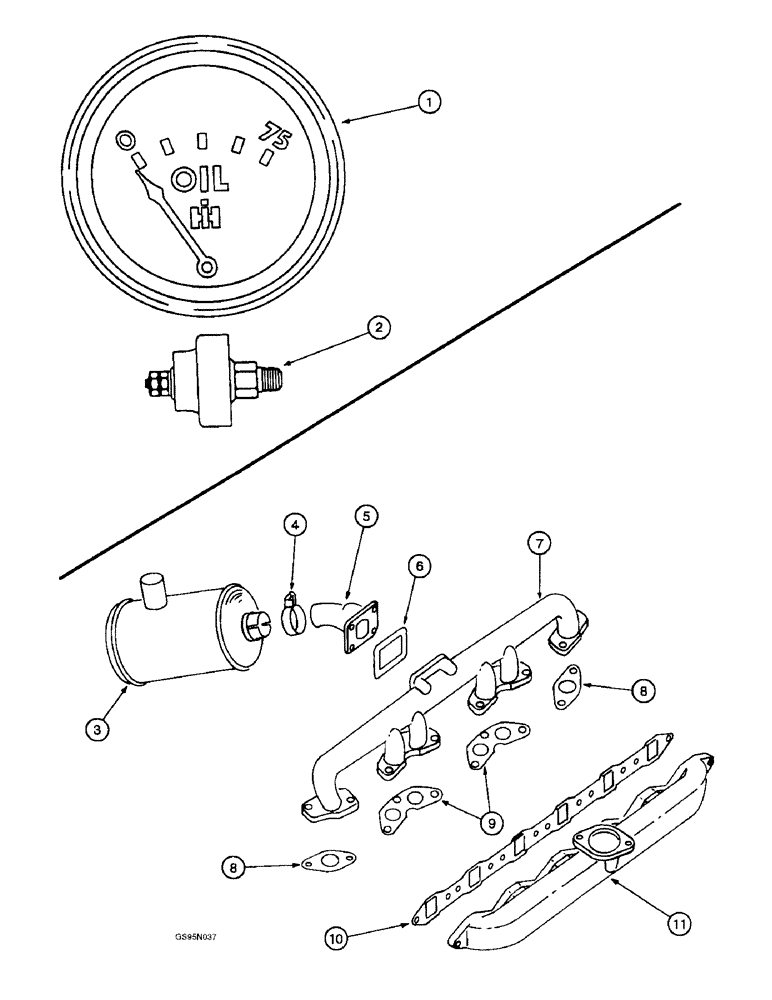

Запчасти Case IH D-282 (2-118) - OIL PRESSURE GAUGE AND SWITCH / INTAKE MANIFOLD AND EXHAUST SYSTEM, 403 COMBINES

1

939263R91

GAUGE ASSY.

GAUGE - oil pressure (Replaces gauge 629031R91)

1шт.

2

104342A1

SENDER UNIT

SWITCH - engine oil pressure, used with 403 combines (Replaces switch 665014R91)

1шт.

2

392249R92

SWITCH

- low engine oil pressure lamp, used with 706 tractors

1шт.

3

379370R92

MUFFLER

- exhaust

1шт.

4

31790DA

CLAMP

- exhaust muffler

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch (Replaces bolt 179841)

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

1шт.

5

379934R1

ELBOW - exhaust pipe, no longer available

1шт.

133757R1

SCREW,Hex, 3/8" - 16 x 1 1/4"

- hex, 3/8 NC x 1-1/4 inch

4шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

WASHER - lock, 3/8 inch (Replaces washer 103321)

4шт.

6

228462R1

GASKET

- exhaust pipe elbow

1шт.

7

312650R1

MANIFOLD

- exhaust, no longer available

1шт.

39524DA

NUT

- exhaust manifold

10шт.

113934H

WASHER

- exhaust manifold

4шт.

8

278313R3

MANIFOLD GASKET

- exhaust manifold, end

2шт.

9

278314R1

MANIFOLD GASKET

- exhaust manifold, center

2шт.

10

305804R1

MANIFOLD GASKET

- air intake manifold

1шт.

11

332110R11

MANIFOLD

ASSEMBLY - intake, Includes: Plug, no longer available

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 445684)

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

12шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

12шт.
