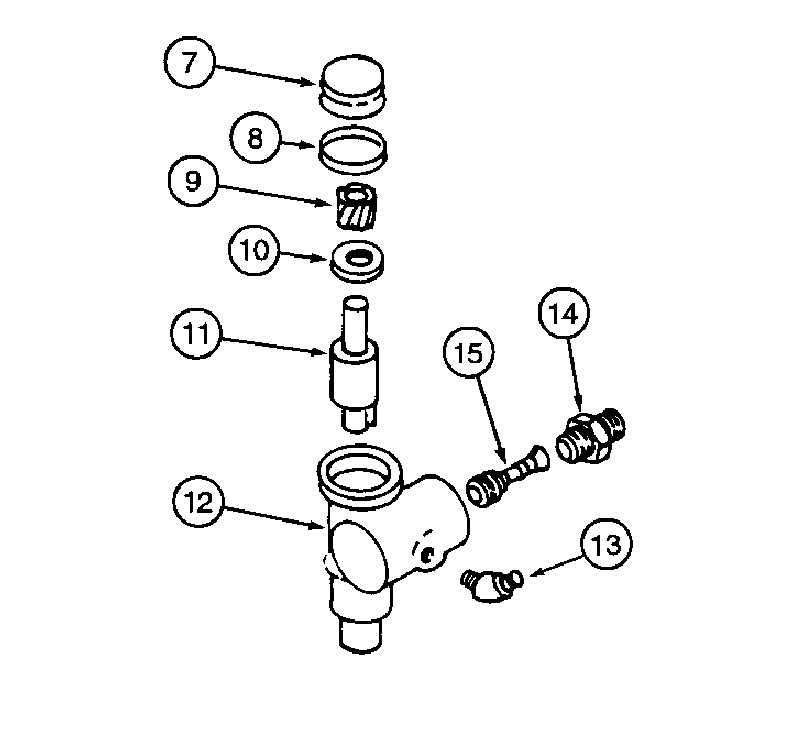

Запчасти Case IH D-282 (2-116[C]) - OIL PUMP SUPPORT, 656 AND 706 TRACTORS

670186C91

SUPPORT ASSEMBLY - oil pump shaft, Includes: Ref. 7 - 15, no longer available (Replaces support assembly 349384R91)

1шт.

7

A42013

PLUG

- oil pump shaft support housing (Replaces plug 172557)

1шт.

8

312162R1

PLATE ASSY.

PLATE - tachometer thrust

1шт.

312159R11

SHAFT

ASSEMBLY - tachometer drive, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - tachometer drive, order shaft assembly 312159R11

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - tachometer thrust, order shaft assembly 312159R11

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - tachometer drive, order shaft assembly 312159R11

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - oil pump shaft support, for service order support assembly 670186C91

1шт.

13

62055R91

FITTING - lubrication, no longer available

1шт.

14

368246R1

CONNECTION

HOUSING - tachometer connection

1шт.

15

368245R12

PINION

GEAR - tachometer drive

1шт.
