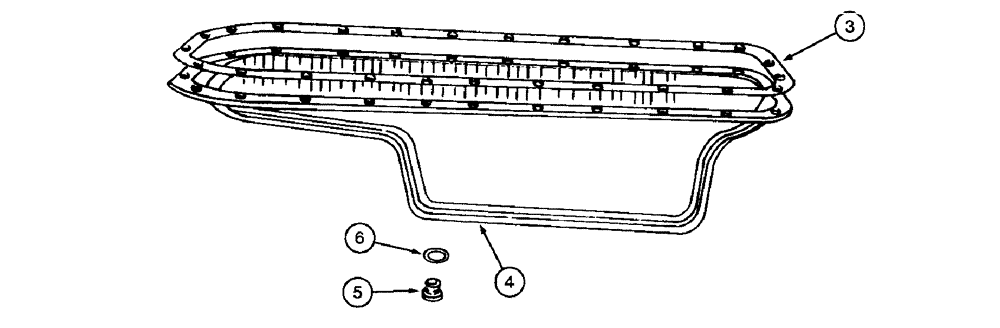

Запчасти Case IH D-282 (2-116[B]) - OIL PAN AND GASKET, ALL MACHINES EXCEPT 403 AND 615 COMBINES

3

369984R1

GASKET

- crankcase pan

1шт.

4

367575R92

PAN ASSY.

PAN - crankcase oil, all machines except 416 and 422 cotton pickers

1шт.

4

381137R91

PAN

- crankcase oil, used with 416 and 422 cotton pickers

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

25шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

25шт.

5

688067C1

PLUG

- crankcase oil pan drain (Replaces plug 445096)

1шт.

6

3405HA

GASKET

- oil pan drain plug

1шт.
