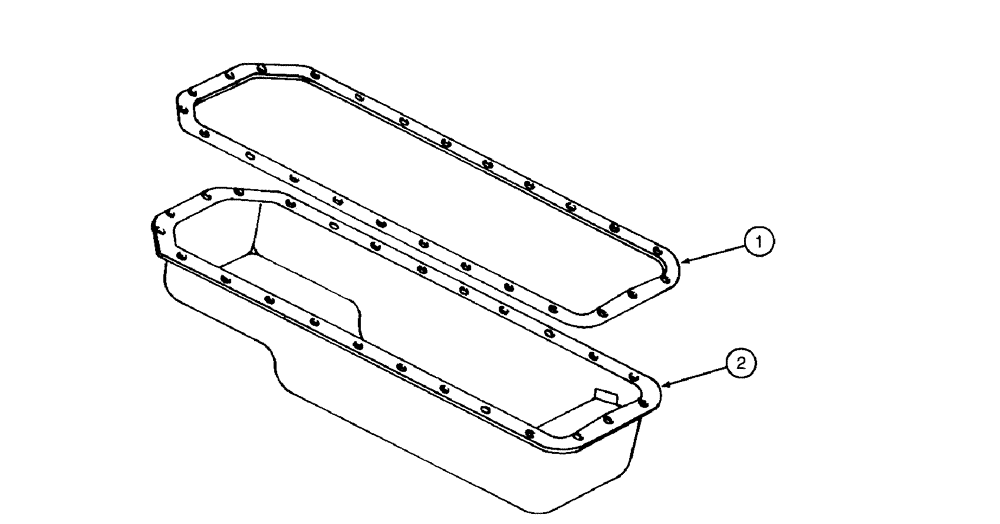

Запчасти Case IH D-282 (2-116[A]) - OIL PAN AND GASKET, 403 AND 615 COMBINES

1

369984R1

GASKET

- oil pan

1шт.

2

356260R42

PAN - crankcase oil, used with 403 combines, no longer available

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- oil pan, hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

25шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

25шт.

2

601380C11

OIL RESERVOIR

PAN - crankcase oil, used with 615 combines

1шт.

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket, 1/2 inch PT (Replaces plug 438159)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- oil pan, hex, 5/16 NC x 3/4 inch (Replaces bolt 179816)

25шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

25шт.
