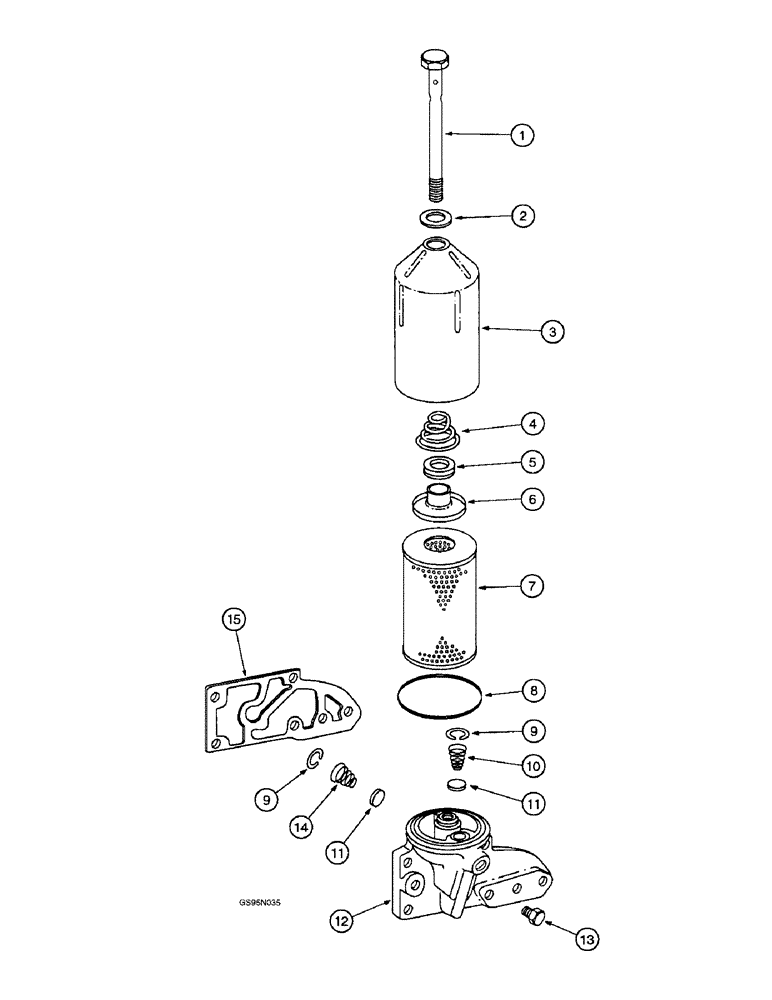

Запчасти Case IH D-282 (2-112) - LUBRICATING OIL FILTER, CARTRIDGE TYPE - 706 TRACTORS, 656 TRACTORS

REF

INSTRUCTION

FILTER ASSEMBLY - oil, for items 8, 9, and 11 - 15, order filter assembly 674085C91, parts list Figure 2-114, Includes: Ref. 1 - 7

1шт.

1

REF

INSTRUCTION

TUBE - oil filter center, order kit 538837R91 below and oil filter element 675616C91, see Figure 2-114

1шт.

2

384532R1

GASKET

- center tube

1шт.

3

384529R1

CASE

HOUSING - oil filter, no longer available, order filter 3136046R93 and kit 538837R91

1шт.

3a

3136046R93

FILTER, ENGINE OIL

FILTER - oil, not shown

1шт.

4

384536R1

SPRING - element hold-down, no longer available

1шт.

5

384535R1

WASHER

GROMMET - element retaining washer

1шт.

6

384533R91

RETAINER

- element

1шт.

7

323827R91

ENGINE OIL FILTER

ELEMENT - oil filter

1шт.

8

304854R1

RING

GASKET - oil filter housing, includes instructions

1шт.

9

100-21100

SNAP RING,1.00", Int, #100

Ring, Snap, (Replaces ring 303322R1) 1.00", Int, #100

2шт.

10

384525R1

SPRING

- check valve

1шт.

11

534180R1

VALVE

- oil filter base (Replaces valve 384528R2)

2шт.

12

601789C11

BASE

ASSEMBLY - oil filter, Includes: Ref. 12A, no longer available

1шт.

12a

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- oil filter, hex socket, 3/8 inch PT (Replaces plug 445673)

1шт.

138225

BEARING

SCREW - hex socket, 5/16 NC x 1-3/4 inch, no longer used

2шт.

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch (Replaces bolt 179860)

3шт.

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch (Replaces bolt 179866)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

3шт.

13

221-841

PLUG

- hex socket, 1/4 inch PT, drain (Replaces plug 444618)

1шт.

14

384527R1

SPRING

- element by-pass

1шт.

15

601790C2

GASKET

- oil filter

1шт.

304854R1

RING

GASKET - adapter, includes instructions

1шт.

538837R91

KIT

- spin-on oil filter conversion

1шт.
