Запчасти Case IH D-282 (2-110) - LUBRICATING OIL FILTER, CARTRIDGE TYPE - 706 TRACTORS, 656 TRACTORS

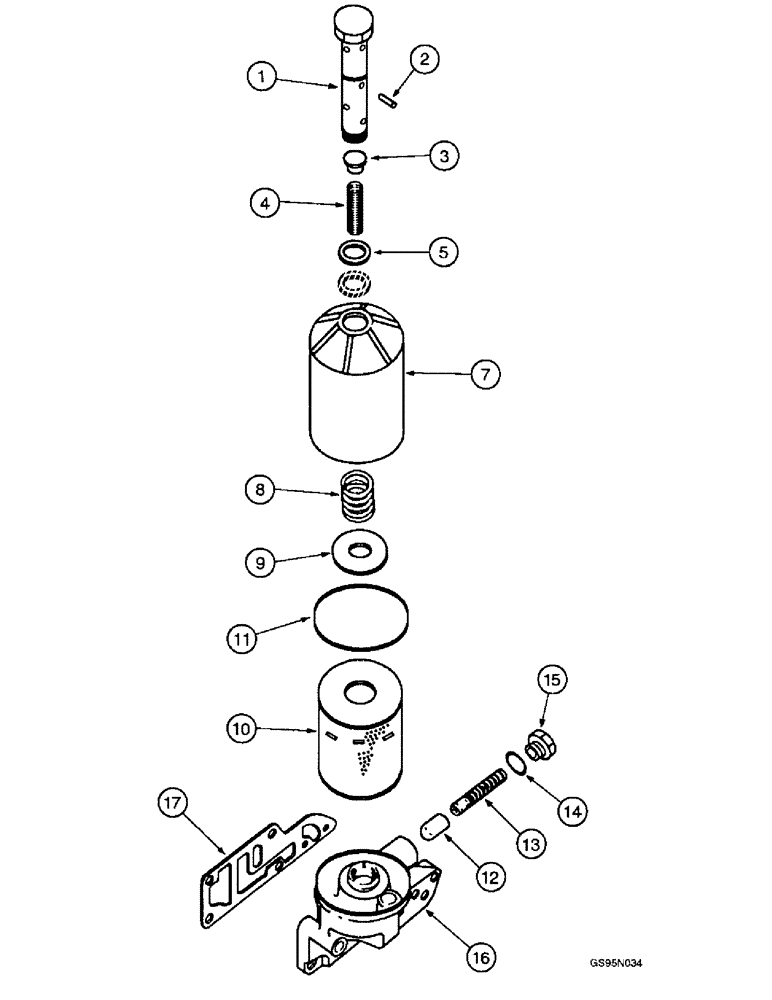

Схема запчастей Case IH D-282 - (2-110) - LUBRICATING OIL FILTER, CARTRIDGE TYPE - 706 TRACTORS, 656 TRACTORS
1
12
5
7
4
14
11
16
10
8
13
17
2
9
3
15

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

FILTER ASSEMBLY - oil, order components parts

1шт.

1

304005R91

FILTER CARTRIDGE

TUBE ASSEMBLY - oil filter, Includes: Ref. 2 - 4

1шт.

2

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, , by-pass valve and spring retainer (Replaces pin 17141R1) 5/32" x 1", Slotted

1шт.

32-432

COTTER PIN,1/16" x 2"

PIN, SPLIT (COTTER), (Replaces pin 103364) 1/16" x 2"

1шт.

3

304008R1

VALVE

- by-pass, no longer available

1шт.

4

304009R1

VALVE SPRING

SPRING - by-pass valve

1шт.

5

304012R1

GASKET

- center tube

1шт.

7

303998R1

BODY

HOUSING - lubricating oil filter, no longer available, order filter 3136046R93 and kit 538837R91

1шт.

7a

3136046R93

FILTER, ENGINE OIL

FILTER - oil, not shown

1шт.

8

304011R1

SPRING

- element hold down

1шт.

9

304010R1

WASHER

- element retaining

1шт.

10

323827R91

ENGINE OIL FILTER

ELEMENT ASSEMBLY - lubricating oil filter, Includes: Ref. 11

1шт.

11

304854R1

RING

GASKET - oil filter housing

1шт.

12

61261VA

LOCK VALVE

VALVE - relief

1шт.

13

49946HA

VALVE SPRING

SPRING - relief valve

1шт.

14

3405HA

GASKET

- relief valve plug

1шт.

15

61263VA

PLUG

- relief valve

1шт.

16

320285R11

BASE

ASSEMBLY - lubricating oil filter, Includes: Ref. 16A, no longer available

1шт.

16a

445668

COVER

PLUG - lubricating oil filter, not shown, no longer available

1шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket, 3/8 inch PT (Replaces plug 445686)

1шт.

221-841

PLUG

- hex socket, 1/4 inch NT, drain (Replaces plug 444618)

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

(Replaces 179858) Hex, 7/16"-14 x 1", G5, Full Thd

1шт.

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

- hex, 7/16 x 3 inch (Replaces screw 179870)

2шт.

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 x 2 inch (Replaces bolt 179866)

1шт.

138225

BEARING

SCREW - hex, 5/16 x 1-3/4 inch, no longer used

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

3шт.

17

349039R1

GASKET

- lubricating oil filter base

1шт.

538837R91

KIT

- spin-on oil filter conversion

1шт.

Выбрано товаров: 28
