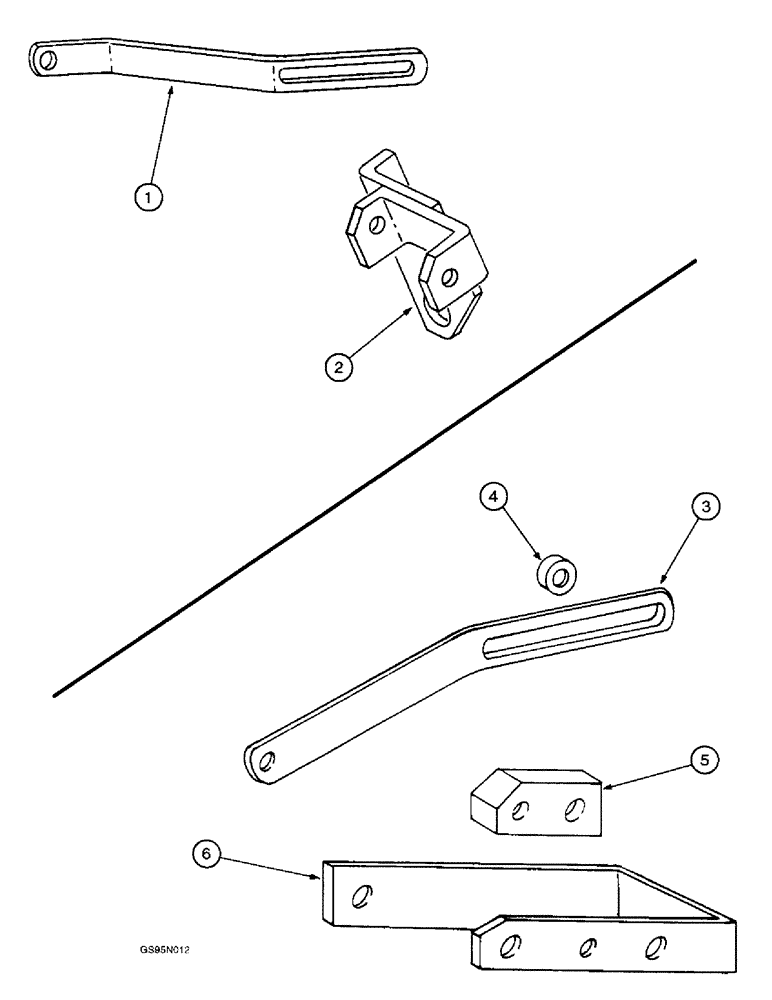

Запчасти Case IH D-282 (2-106) - ALTERNATOR-GENERATOR MOUNTING BRACKET, 615 COMBINES, 706 TRACTORS

1

393775R1

BRACE - alternator-generator (Replaces brace 534897R1)

1шт.

326-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/8 inch (Replaces bolt 180080)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch (Replaces washer 21496R1)

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 180079)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

2

393774R22

BRACKET

- alternator mounting

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

326-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/8 inch (Replaces bolt 180080)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

384997R1

BRACE

- alternator-generator

1шт.

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch (Replaces screw 179819)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

4

280185R1

SPACER

- alternator-generator brace

1шт.

5

384996R1

BAR

SPACER - alternator-generator mounting bracket

1шт.

6

384995R1

BRACKET

- alternator-generator mounting

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch (Replaces bolt 179824)

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Replaces 179845)

1шт.

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch (Replaces screw 186282)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.
