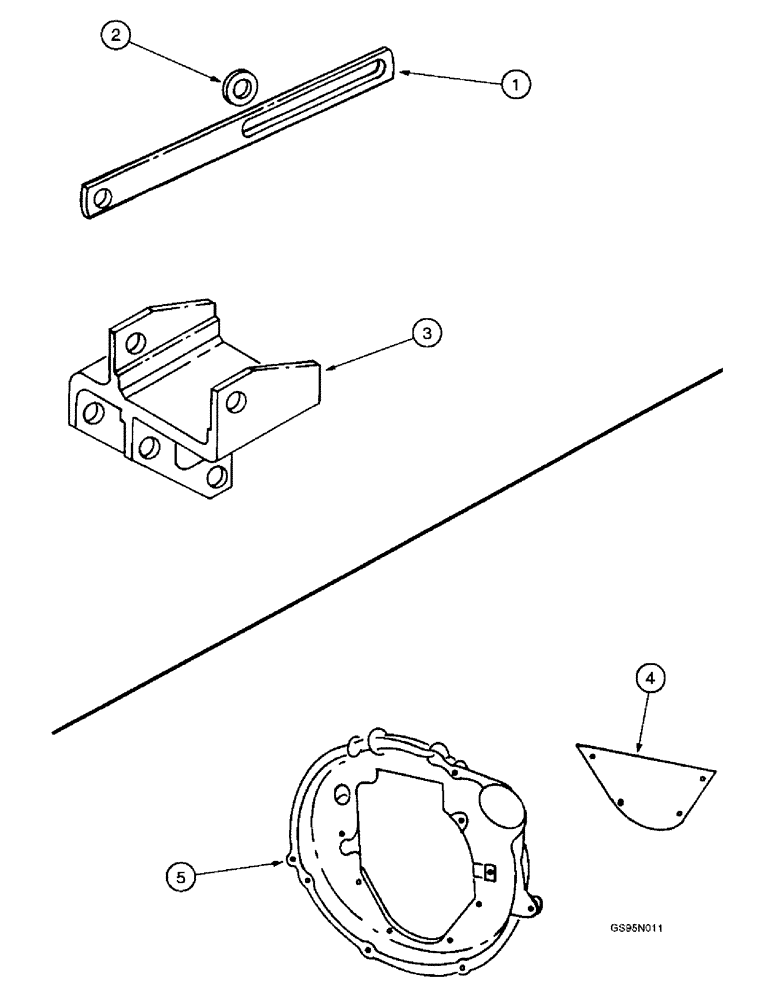

Запчасти Case IH D-282 (2-104) - ALTERNATOR BRACKET, 706 TRACTORS / CLUTCH HOUSING ADAPTOR, 416 & 422 CORN PICKERS

1

396359R2

BAR

BRACE - alternator-generator

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (Replaces screw 179820)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.

2

280185R1

SPACER

- alternator-generator brace

1шт.

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch (Replaces screw 179820)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

3

3139173R91

BRACKET

- alternator-generator, will work for 3056886R11, no longer available (Replaces bracket 3132268R12)

1шт.

16073R1

SCREW - hex, 5/16 NC x 2-3/8 inch, no longer available

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

4

367225R1

BAR

SEAL - housing adapter dust

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

2шт.

432-840

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

2шт.

5

376595R1

ADAPTER

- clutch housing

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces screw 179883)

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

6шт.

98051R1

COVER - timing indicator, no longer used

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan Phillips, 1/4 NC x 1/2 inch (Replaces screw 113955)

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

1шт.

95-11028

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch (Replaces washer 103339)

1шт.
