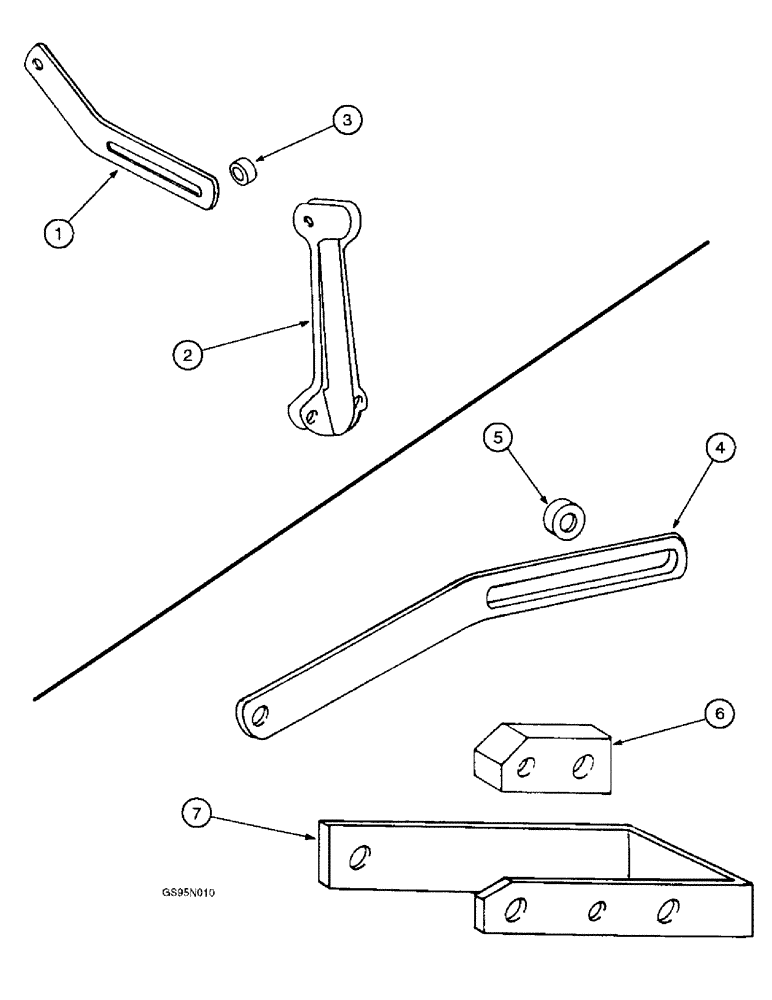

Запчасти Case IH D-282 (2-102) - GENERATOR BRACE, 656 AND 706 TRACTORS / ALTERNATOR BRACKET, 656 TRACTORS

1

304018R1

BRACE

- generator, 656 and 706 Tractors

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

1шт.

2

304317R1

BRACKET - generator rear mounting, no longer available

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 179818)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

2шт.

3

280185R1

SPACER

- generator brace

1шт.

4

384997R1

BRACE

- alternator-generator, 656 Tractors

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Replaces nut 271500)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

1шт.

5

280185R1

SPACER

- alternator-generator brace

1шт.

6

384996R1

BAR

SPACER - alternator-generator mounting bracket, tractors without air conditioning

1шт.

6

351549R1

WASHER

SPACER - alternator-generator mounting bracket, tractors with air conditioning, no longer available

1шт.

7

384995R1

BRACKET

- alternator-generator mounting, tractors without air conditioning

1шт.

7

395454R1

BRACKET - alternator-generator mounting, tractors with air conditioning, no longer available

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut 102635) 3/8"-16, G5

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch (Replaces bolt 179824)

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch (Replaces 179845)

1шт.

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch (Replaces screw 186282)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.
