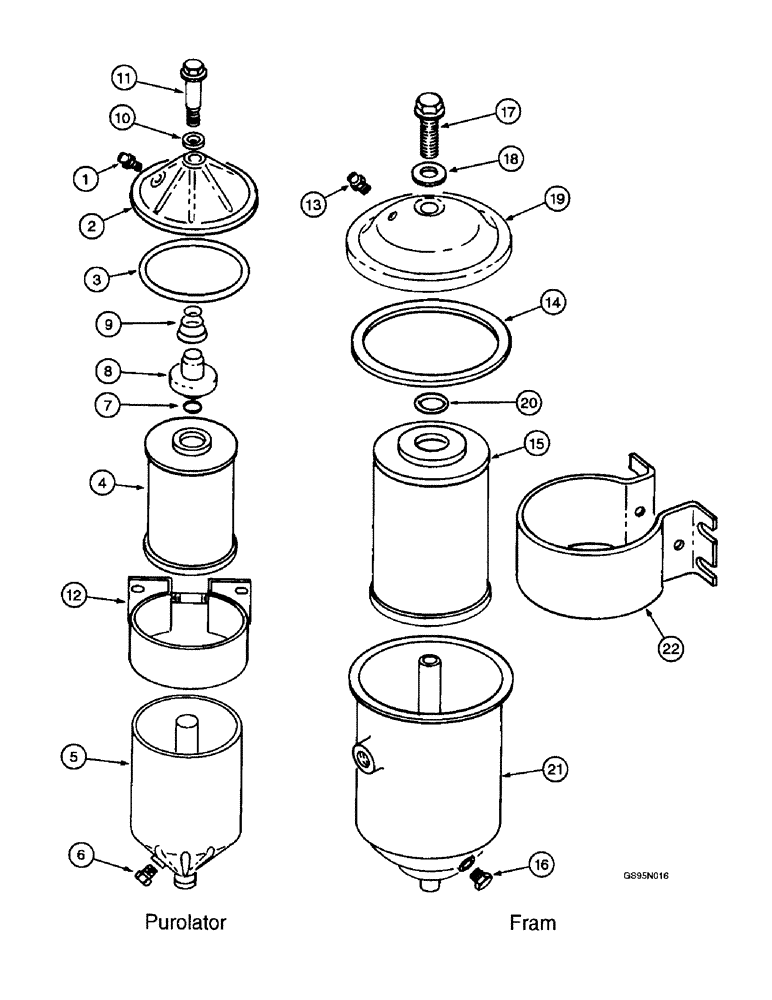

Запчасти Case IH D-282 (2-094) - FUEL FILTER, 403 AND 615 COMBINES, 656 AND 706 TRACTORS

347066R91

HOSE ASSY.

FILTER ASSEMBLY - final fuel, Purolator, no longer used, order filter assembly 610932C91

1шт.

610932C91

FILTER CARTRIDGE

FILTER ASSEMBLY - primary fuel, Purolator, (Replaces filter assembly 347066R91), Includes: Ref. 1 - 11

1шт.

1

39677DA

VALVE

- bleeder, fuel filter

1шт.

2

321720R91

END ASSY.

COVER - filter, no longer available

1шт.

3

304102R1

GASKET

- element cover

1шт.

4

304101R91

FILTER, ELEMENT

ELEMENT - final fuel filter

1шт.

4

306353R91

ELEMENT

- primary fuel filter

1шт.

5

304100R91

BODY

CASE ASSEMBLY - filter, Includes: Ref. 6, no longer available

1шт.

6

258995R91

PLUG - filter drain, no longer available

1шт.

7

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

(Replaces O-ring 355966R1) -111, 70 Duro, .424" ID x .103" Thk

1шт.

8

321722R91

RETAINER

- gasket, no longer available

1шт.

9

321721R1

VALVE SPRING

SPRING - retaining

1шт.

10

111638H

GASKET

- screw retaining (Replaces gasket 368334R1)

1шт.

11

321727R1

CAPSCREW,3/8" - 24 x 1 11/16"

SCREW - cover retaining

1шт.

134519

VALVE

COCK - drain, type B, 1/8 inch, used with primary fuel filter water separator element, not shown

1шт.

12

304104R91

HOLDER

BRACKET - fuel filter

1шт.

610933C91

FILTER

ASSEMBLY - primary fuel, Fram, interchangeable with filter assembly 610932C91 above, Includes: Ref. 13 - 21A, no longer available, order filter assembly 610932C91 above

1шт.

13

39677DA

VALVE

- bleeder, fuel filter

1шт.

14

304102R1

GASKET

- element cover

1шт.

15

306353R91

ELEMENT

- primary fuel filter

1шт.

16

610383C1

PLUG

- filter vent

1шт.

17

368492R1

SCREW - filter vent cap

1шт.

18

111638H

GASKET

- filter vent cap screw (Replaces gasket 368493R1)

1шт.

19

603941C91

COVER - filter, no longer available

1шт.

20

306777R1

O-RING

O-RING - filter body

1шт.

21

NSS

NOT SOLD SEPARAT

CASE - filter, order filter assembly 610933C91

1шт.

21a

134519

VALVE

COCK - drain, type B, 1/8 inch, used with primary fuel filter water separator element, not shown

1шт.

22

306780R1

STRAP - filter bracket

1шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (Replaces nut 120372)

1шт.

133086

SCREW - machine, slotted round head, 1/4 NC x 3 inch, no longer used

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 131200) 1/4"

1шт.
