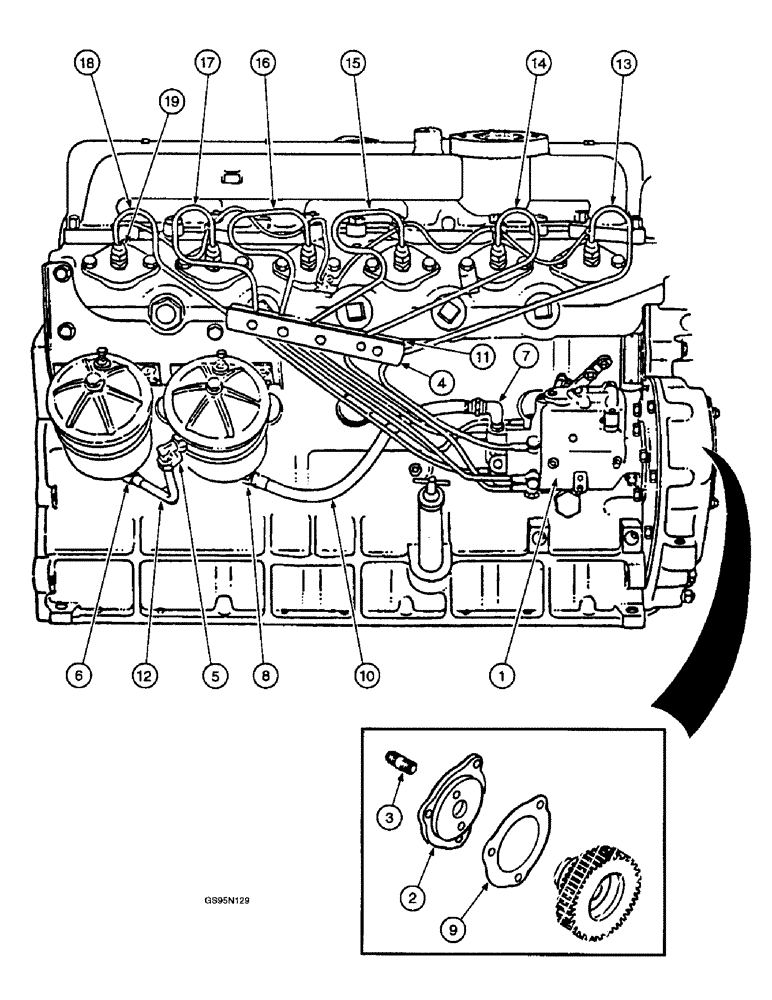

Запчасти Case IH D-282 (2-092) - ROOSA MASTER INJECTION PUMP CONVERSION KIT, 706 TRACTORS

394968R91

KIT - Roosa master injection pump conversion service, for converting engines equipped with International RD fuel injection pump to Roosa master fuel injection pump, no longer available

1шт.

1

749524C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured for 347886R91 (North America only), component parts do not apply to the remanufactured assembly

1шт.

1934035C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

347886R91

PUMP

ASSEMBLY - fuel injection, new, no longer available, order remanufactured assembly 749524C91

1шт.

749524C91

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP - for N.A. Only

1шт.

2

303462R11

ADAPTER ASSEMBLY - injection pump, Includes: Ref. 3, no longer available

1шт.

3

303463R1

STUD

- adapter, no longer available

2шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.

332489R1

CLAMP - injection pipe, drilled, no longer available

1шт.

4

332490R1

CLAMP

- injection pipe, tapped

1шт.

114-6

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

(Replaces 181317) Hex, 1/4"-28 x 1 1/4", G5

5шт.

370675R1

CLIP - fuel return pipe, no longer available

1шт.

5

22510D

ELBOW UNION

ELBOW - final filter inlet

1шт.

6

65834D

ELBOW

- auxiliary filter outlet

1шт.

7

222-768

ELBOW,90 Degree, 5/8"-18, 45 Degree Fl x 1/4" NPT

- pump inlet, 90 degree x 5/8 inch x 1/4 inch PT (Replaces elbow 118755)

1шт.

8

137538

YOKE

ELBOW - final filter outlet, 1/4 inch x 90 degree flared

1шт.

9

278347R1

GASKET

- injection pump adapter

1шт.

10

275946R91

HOSE,7.92mm ID x 368.3mm L, SAE 30R2

- final filter to pump, 14-1/2 inch (368 mm) long

1шт.

19984R1

TUBE NUT,7/16"-24

NUT - hi-duty tube fitting, 7/16 inch NC

1шт.

250617R1

NUT

- injection pipe, nozzle end

6шт.

11

332491R2

PAD

- injection pipe clamp

2шт.

12

278335R11

TUBE

PIPE - auxiliary to final filter

1шт.

13

278702R21

INJECTION PIPE

PIPE - injection cylinder no. 1

1шт.

14

278703R11

FUEL TUBE,28.33" Length

PIPE - injection cylinder no. 2

1шт.

15

278704R11

FUEL TUBE

PIPE - injection cylinder no. 3

1шт.

16

278705R11

FUEL TUBE

PIPE - injection cylinder no. 4

1шт.

17

278706R11

FUEL TUBE

PIPE - injection cylinder no. 5

1шт.

18

278707R11

FUEL TUBE

PIPE - injection cylinder no. 6

1шт.

384620R11

PIPE

- fuel return, 39 inch (991 mm) long, cut from bulk roll 995061R1, also order two tube nuts 19984R1

1шт.

384617R1

ROD - governor control, no longer available

1шт.

19

250610R2

GUARD

SLEEVE - injection pipe

6шт.

995061R1

TUBE

TUBING - bulk, 50 foot (15240 mm) long

1шт.
