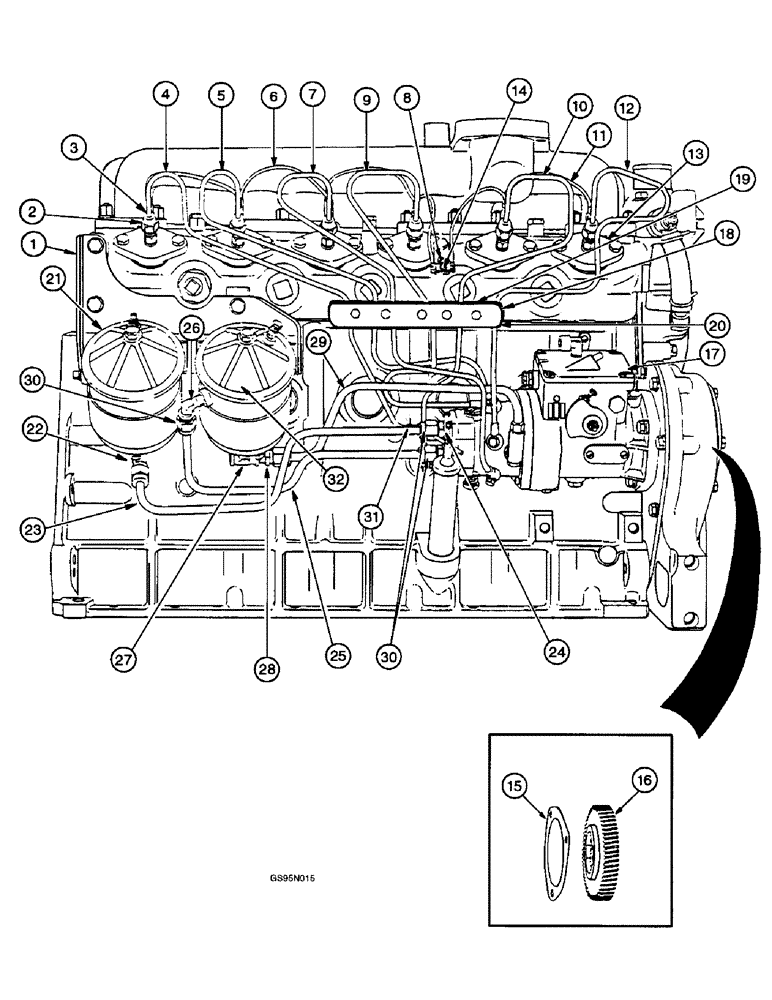

Запчасти Case IH D-282 (2-086) - FUEL INJECTION PUMP AND CONNECTIONS, 706 TRACTORS W/INTERNATIONAL R.D. PUMP

1

278318R1

BRACKET

- fuel filter

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

(Replaces 179858) Hex, 7/16"-14 x 1", G5, Full Thd

3шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

3шт.

2

250617R1

NUT

- injection pipe, nozzle end

7шт.

3

250610R2

GUARD

SLEEVE - injection pipe

7шт.

4

323717R1

PIPE - injection cylinder no. 6

1шт.

5

323716R11

PIPE - injection cylinder no. 5, no longer available

1шт.

6

319966R91

CABLE PULLING GRIP

HARNESS - glow plug cable rear

1шт.

7

332618R11

PIPE - injection cylinder no. 4, no longer available

1шт.

8

304313R1

BRACKET

- junction block

1шт.

9

601133C11

PIPE - injection cylinder no. 3

1шт.

10

601132C11

PIPE

- injection cylinder no. 2, no longer available

1шт.

11

320150R91

HARNESS

- glow plug cable front, no longer available

1шт.

12

601131C11

PIPE - injection cylinder no. 1, no longer available

1шт.

13

332495R91

NOZZLE INJECTION

NOZZLE ASSEMBLY - injection, parts list page 2-91

6шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch (Replaces screw 179849)

12шт.

14

1998754

BLOCK

- junction (Replaces junction block 42915D)

1шт.

225-14210

NUT,#10-32

(Replaces nut 120614) #10-32

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch (Replaces screw 100764)

1шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer 106497) #10

1шт.

15

278347R1

GASKET

- injection pump

1шт.

16

278315R1

PINION

GEAR - injection pump

1шт.

347230R91

SCREW - hex, 5/16 NC x 1-1/4 inch, no longer available

3шт.

278317R1

WASHER - injection pump gear, no longer available

1шт.

17

REF

INSTRUCTION

PUMP ASSEMBLY - International R.D. injection, also order Roosa master injection pump conversion service kit 394968R91, see page 2-93

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.

113934H

WASHER

- injection pump

3шт.

18

263178R1

CLAMP - injection pipe, drilled, no longer available

1шт.

114-6

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

(Replaces 181317) Hex, 1/4"-28 x 1 1/4", G5

5шт.

19

263179R1

PLATE ASSY.

PAD - injection pipe clamp, no longer available

1шт.

20

264718R1

CLAMP - injection pipe, tapped, no longer available

1шт.

21

REF

INSTRUCTION

FILTER ASSEMBLY - primary fuel, parts list page 2-95

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch (Replaces washer 103340)

4шт.

22

REF

INSTRUCTION

ELBOW - filter outlet, no longer available

1шт.

23

601356C1

PIPE - filter outlet to pump inlet, no longer available

1шт.

303545R1

O-RING

SEAL - pipe

1шт.

24

606171C91

CONNECTOR - pump inlet and outlet, no longer available

2шт.

25

601357C1

PIPE - pump outlet to filter inlet, no longer available

1шт.

303545R1

O-RING

SEAL - pipe

1шт.

26

606173C91

ELBOW - filter inlet, no longer available

1шт.

27

120498

TEE,1/4" NPT, Fem

- female, filter outlet

1шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, filter outlet, hose to pump, used with hose 347823R91, item 29

1шт.

28

606174C91

CONNECTOR - filter outlet, pipe to pump, used with pipe 601358C1, item 29, no longer available

1шт.

29

347823R92

HOSE

- filter to injection pump, order pipe 601358C1 and connector 606174C91 (Replaces hose 347823R91)

1шт.

303545R1

O-RING

SEAL - hose

1шт.

29

601358C1

PIPE - filter to injection pump, no longer available

1шт.

303545R1

O-RING

SEAL - pipe

1шт.

30

606180C91

CUSHION - includes nut

3шт.

31

318374R1

FITTING - extended banjo, no longer available

1шт.

32

REF

INSTRUCTION

FILTER ASSEMBLY - final fuel, parts list page 2-95

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Replaces screw 179817) Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch (Replaces washer 103340)

4шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
