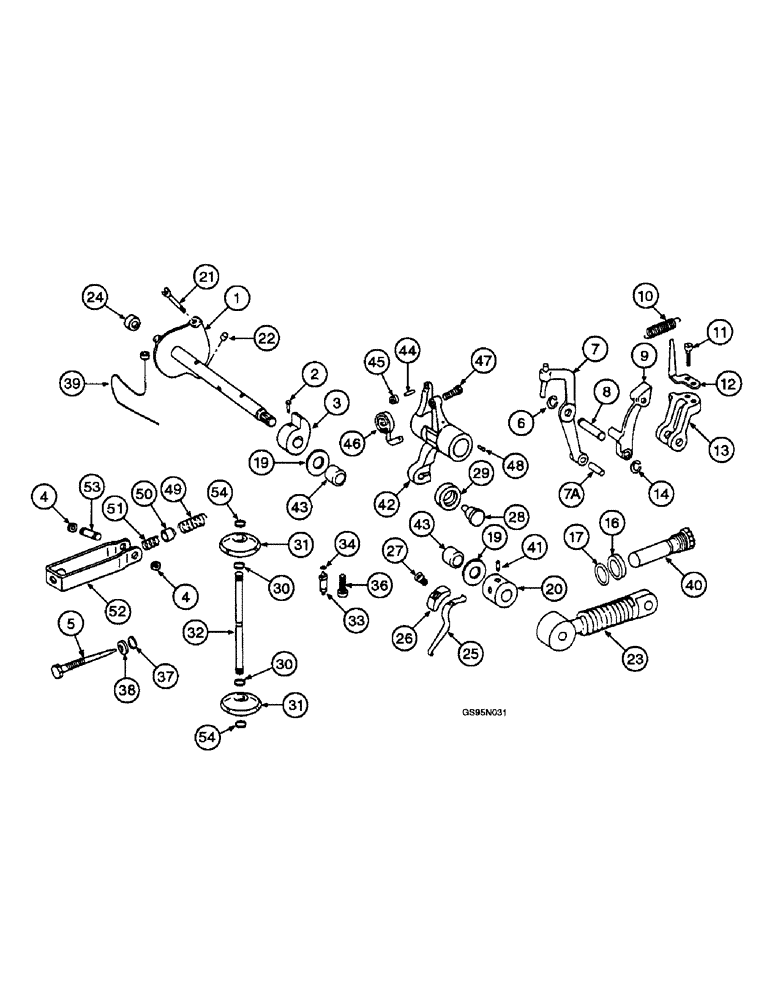

Запчасти Case IH D-282 (2-074) - INTERNATIONAL R.D. FUEL INJECTION PUMP, GOVERNOR, 706 TRACTORS

1

601113C12

SHAFT - control, no longer available

1шт.

25652R1

BOLT,Hex, 1/4" - 28 x 1", Gr 8

SCREW - hex, 1/4 NC x 1 inch (Replaces screw 181315)

1шт.

2

20683R1

SCREW - hex socket, No. 10-32 x 1/4 inch, no longer used

1шт.

3

310016R2

CAM - control shaft, no longer available

1шт.

4

606912C1

O-RING - governor spring yoke pin, no longer available

2шт.

5

345304R2

SCREW - governor spring arm yoke guide

1шт.

6

606913C1

RING - governor spring arm bracket pin

1шт.

7

601200C11

LEVER ASSEMBLY - shut-off, Includes: Ref. 7A

1шт.

7a

20686R1

PIN - roll, 3/16 x 5/8 inch, no longer used

1шт.

8

601201C1

PIN - governor spring arm bracket, no longer available

1шт.

9

341332R1

ARM - governor spring, no longer available

1шт.

10

320065R1

SPRING - shut-off lever, no longer available

1шт.

11

20680R1

SCREW - hex socket, No. 8-32 x 5/8 inch, no longer used

2шт.

12

320066R1

BRACKET - shut-off lever spring, no longer used

1шт.

13

310033R1

BRACKET - governor spring arm, no longer available

1шт.

14

606911C1

RING - bracket pin thrust

1шт.

16

310036R1

NUT - load adjusting screw, no longer available

1шт.

17

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Load adjusting screw (Replaces seals 310137R1 and 375271R1)

1шт.

19

310009R1

WASHER

- control shaft

2шт.

20

341328R1

SPACER - excess fuel spring, no longer available

1шт.

21

601348C1

SCREW - stop plate

1шт.

225-13108

NUT,#8-32

Stop plate screw lock #8-32

1шт.

22

20682R1

SCREW - hex socket, No. 8-32 x 3/8 inch, no longer used

1шт.

23

601115C11

LEVER - control, no longer available

1шт.

24

425-114

NUT,1/4"-28, G5

Control shaft (Replaces nut 103024) 1/4"-28, G5

1шт.

25

345308R1

VALVE SPRING

SPRING - excess fuel, no longer available

1шт.

26

341329R1

CLAMP - excess fuel spring, no longer available

1шт.

27

20677R1

SCREW - hex socket, No. 8-32 x 1/4 inch, excess fuel spring clamp, no longer used

1шт.

28

320060R1

PIN - governor arm roller, no longer available

1шт.

29

320061R1

ROLLER

- governor arm

1шт.

30

100-1325

SNAP RING,#25, Ext, Crescent

Ring, Snap, , governor weight, used only with shaft 310025R1, item 32 below (replaces ring 606910C1) #25, Ext, Crescent

2шт.

31

310024R2

WEIGHT - governor, no longer available

2шт.

32

310025R1

SHAFT - governor weight, four grooves on shaft for snap rings, no longer available

1шт.

32

607237C1

SHAFT - governor weight, two grooves on end of shaft for snap rings

1шт.

33

332372R91

PIN ASSEMBLY - governor timing, Includes: Ref. 34

1шт.

34

606909C1

RING - governor cup timing pin snap

1шт.

36

20678R1

SCREW - hex socket, No. 8-32 x 1/2 inch, governor arm, no longer used

1шт.

37

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk, Governor spring screw (Replaces seals 310135R1 and 360599R1)

1шт.

38

395-31022

WASHER,#10

- governor spring screw, flat, 7/32 x 1/2 x 1/16 inch (Replaces washer 446153)

1шт.

39

279673R91

WASHER

WIRE - seal

1шт.

40

349149R1

SCREW - fuel load adjusting

1шт.

41

20681R1

SCREW - hex socket, No. 8-32 x 1/4 inch, no longer used

1шт.

42

601105C11

ARM ASSEMBLY - governor, Includes: Ref. 43 - 48

1шт.

43

309209R91

NEEDLE BEARING

- governor arm

2шт.

44

20685R1

PIN - spring slotted, no longer used

1шт.

45

601106C1

SEAT - governor arm spring, no longer available

1шт.

46

601107C1

SPRING - temperature compensation

1шт.

47

601108C1

SCREW - governor arm, no longer available

1шт.

48

109371

STUD - drive, no longer used

1шт.

49

601214C1

SPRING - governor

1шт.

50

601111C1

SEAT - governor spring, no longer available

1шт.

51

601112C1

SPRING - idle, no longer available

1шт.

52

601109C11

YOKE - governor spring arm

1шт.

53

601202C1

PIN - governor spring arm, no longer available

1шт.

54

610379C1

RING - weight shaft snap, no longer available

2шт.
