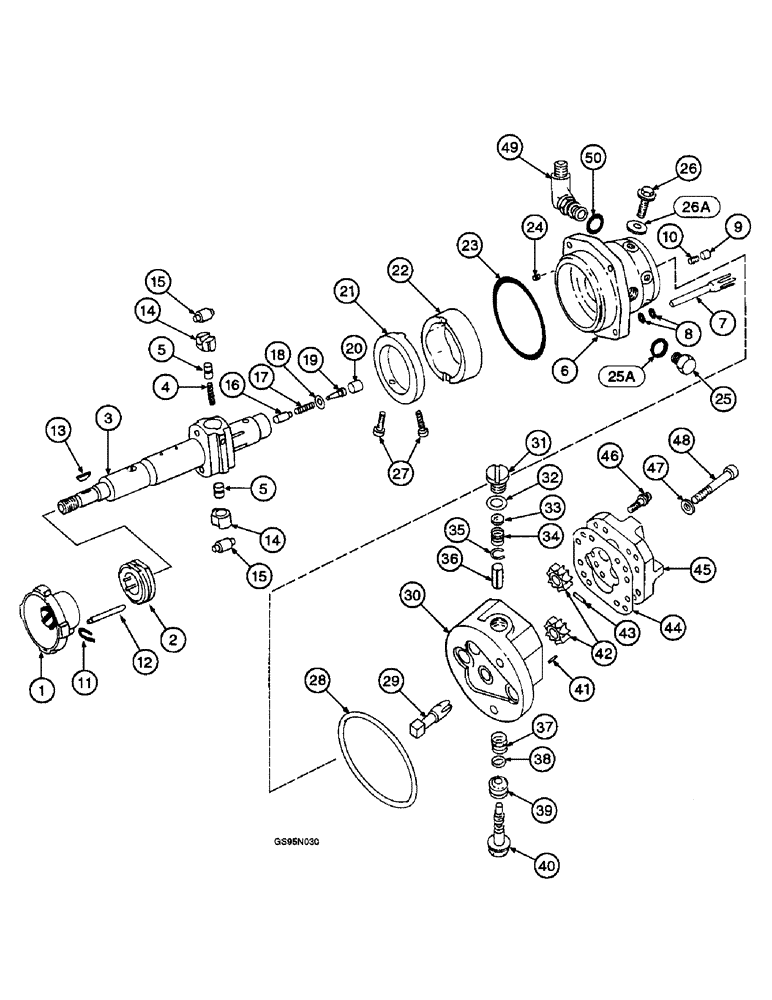

Запчасти Case IH D-282 (2-070) - INTERNATIONAL R.D. FUEL INJECTION PUMP, MAIN SHAFT, PRIMARY PUMP & CONNECTIONS, 706 TRACTORS

607231C11

SHAFT ASSEMBLY - main, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

CUP - governor, order mainshaft assembly 607231C11 above

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - timing, order mainshaft assembly 607231C11 above

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - main, order mainshaft assembly 607231C11 above

1шт.

4

607392C1

VALVE SPRING

SPRING - plunger

1шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER - mainshaft, order mainshaft assembly 607231C11 above

2шт.

6

NSS

NOT SOLD SEPARAT

HEAD - distributor, order mainshaft assembly 607231C11 above

1шт.

7

345213R91

VALVE - fuel recirculation check

1шт.

8

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Recirculation valve (Replaces O-ring 310136R1)

2шт.

9

607290C1

PISTON ASSY.

PISTON - surge, also order spring 607291C1, item 10 below, no longer available

1шт.

10

607291C1

VALVE SPRING

SPRING - surge piston, also order piston 607290C1, item 9 above

1шт.

610324C1

PIN

- governor shaft dowel, no longer available

1шт.

20796R1

PIN,1/8" x 1/4", Slotted

2шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Used with distributor head, item 6 above (Replaces screw 179797) Hex, 1/4"-20 x 1", G5

4шт.

11

320068R1

RETAINER - governor cup pin

1шт.

12

320067R1

PIN - governor cup

1шт.

13

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

(Replaces key 124543) #3, 1/8" x 1/2", HT

1шт.

14

349326R11

LOCK VALVE

TAPPET - mainshaft, no longer available

2шт.

15

310053R1

ROLLER - tappet, no longer available

2шт.

16

318351R1

VALVE - retraction

1шт.

17

310058R1

SPRING - retraction valve, no longer available

1шт.

18

310142R1

SEAL

- valve retainer

1шт.

19

318333R1

STOP - retraction valve, no longer available

1шт.

20

318349R1

SCREW - traction valve

1шт.

21

318332R1

RETAINER - cam, no longer available

1шт.

22

318344R1

CAM - mainshaft, no longer available

1шт.

23

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

Distributor head (Replaces O-rings 310141R1 and 610411C1) -238, 70 Duro, 3.484" ID x .139" Thk

1шт.

24

318413R1

SCREW - distributor head bleed, prior to pump serial number 26954, no longer available

1шт.

25

76349

PLUG,9/16" - 18 ORB

Distributor head, Incl. Ref 25A Hex Hd, 9/16"-18 ORB

1шт.

26

341193R1

CAPSCREW,5/16" x 1.33"

SCREW - fuel line connecting

6шт.

26a

318335R1

GASKET

- fuel line fitting

12шт.

27

601206C91

BOLT

SEELBOLT - cam retainer, no longer available

2шт.

28

310067R1

GASKET

O-RING - primary pump

1шт.

29

310068R1

SHAFT

- primary pump drive

1шт.

30

341336R91

PUMP ASSEMBLY - primary, Includes: Ref. 31 - 46, no longer available

1шт.

31

347531R1

CAP - primary pump, no longer available

1шт.

32

347532R1

GASKET

O-RING - cap

1шт.

33

347541R1

SHIM

- .005 inch

1шт.

33

347539R1

SHIM

- .010 inch

1шт.

33

347542R1

SHIM

- .015 inch

1шт.

33

347540R1

SHIM

- .020 inch, no longer available

1шт.

34

347537R1

SPRING - relief valve, no longer available

1шт.

35

268552R1

SNAP RING,#18, .145" Dia, E-Type

Ring, Retaining, , plunger #18, .145" Dia, E-Type

1шт.

36

610333C91

PLUNGER

- primary pump (Replaces plunger 347536R1)

1шт.

37

347538R1

SPRING - return

1шт.

38

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Stem (Replaces seal 352219R1)

1шт.

39

347535R1

BOOT

- rubber, no longer available

1шт.

40

347534R1

STEM - primary pump, no longer available

1шт.

41

610329C1

PIN - stem stop, no longer available

1шт.

42

347529R91

GEAR - can be used for either drive or driven gear, no longer available

2шт.

43

610329C1

PIN - shear

1шт.

44

347530R1

GASKET - plastic

1шт.

45

347528R1

CAP - end, no longer available

1шт.

46

347533R91

SCREW - cap, twelve point, 1/4 NC x 3/4 inch, no longer available

6шт.

47

59624D

GASKET

- primary pump screw

2шт.

48

20098R1

SCREW - primary pump mounting, hex, 1/4 NC x 1-7/8 inch

2шт.

49

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adjustable O-ring boss, Includes: Ref. 50

1шт.

25a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Distributor head plug

1шт.

50

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
