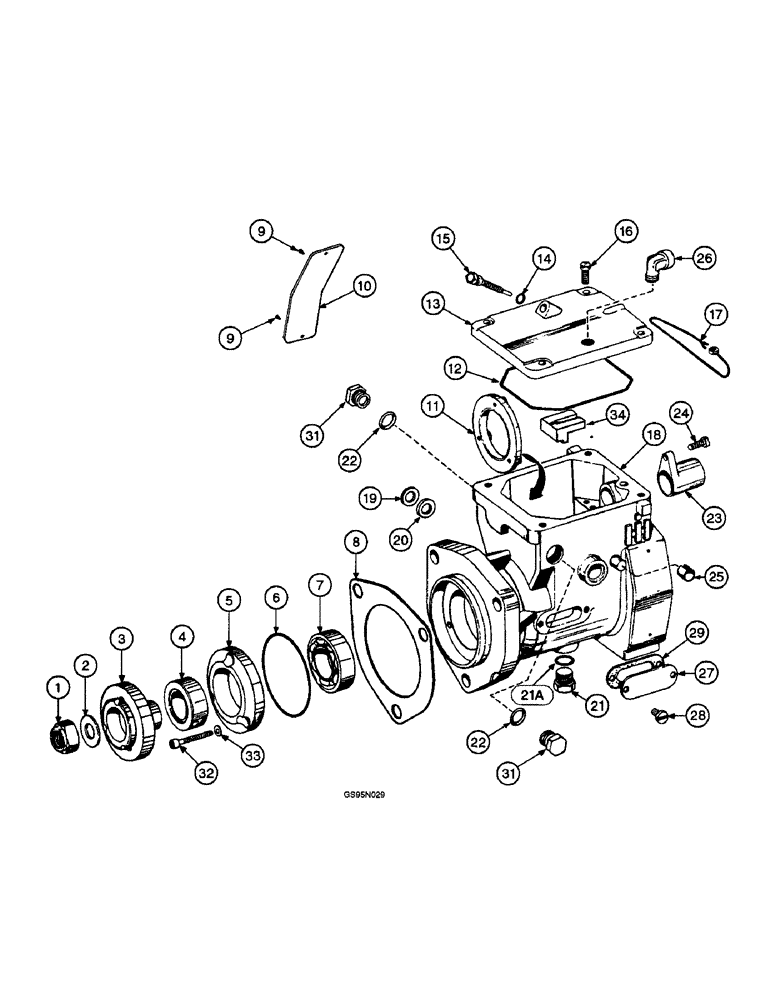

Запчасти Case IH D-282 (2-068) - INTERNATIONAL R.D. FUEL INJECTION PUMP, PUMP HOUSING AND COVERS, 706 TRACTORS

1

19899R1

NUT

- gear hub lock

1шт.

2

345032R1

GASKET

- gear hub, no longer available

1шт.

3

341386R1

HUB - gear, no longer available

1шт.

4

343715R91

SEAL

- main shaft oil

1шт.

5

310130R2

PLATE - main shaft oil seal

1шт.

6

238-5149

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

Main shaft oil seal plate (Replaces gaskets 310140R1 and 295204R1) -149, 90 Duro, 2.8" ID x .103" Thk

1шт.

7

ST681

BEARING - main shaft front ball, no longer used

1шт.

8

278347R1

GASKET

- injection pump

1шт.

9

40329DA

RIVET

- identification plate

2шт.

10

323745R1

PLATE - identification, no longer available

1шт.

11

310131R1

RETAINER - main shaft front bearing, no longer available

1шт.

12

310126R1

GASKET

- pump housing top cover

1шт.

13

310074R1

COVER - pump housing top

1шт.

110488

SCREW - machine, slotted fillister head, No. 10-24 x 5/8 inch, no longer used

2шт.

14

238-5009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

-009, 70 Duro, .208" ID x .070" Thk, Low idle screw (Replaces seals 321730R1 and 3046105R1)

1шт.

15

349325R1

SCREW - low idle, no longer available

1шт.

16

310125R1

SCREW

- pump housing top cover seal

2шт.

17

279673R91

WASHER

SEAL - torque

1шт.

18

601452C11

HOUSING ASSEMBLY - pump, no longer available, Includes: Ref. 18 - 22

1шт.

19

312594R1

RETAINER

- control shaft seal

2шт.

20

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- control shaft, 3/8 x 9/16 inch (Replaces seals 312593R1 and 252738R1)

2шт.

21

76349

PLUG,9/16" - 18 ORB

Pump housing, Incl. Ref 21A Hex Hd, 9/16"-18 ORB

1шт.

22

303545R1

O-RING

- housing plug

2шт.

23

310129R1

COVER - torque adjusting screw

1шт.

24

310125R1

SCREW

- torque adjusting cover

1шт.

25

310073R1

RING - stop screw contact, no longer available

1шт.

26

346794R1

ELBOW - 90 degree restricted, used with Farmall tractors having engine serial numbers prior to 30626, International tractors having engine serial numbers prior to 4845, no longer available

1шт.

26

610206C1

ELBOW - 90 degree inverted flare restricted, used with Farmall tractor having engine serial number 30626 and after, International tractor having engine serial number 4845 and after, no longer available

1шт.

27

349061R1

COVER - timing window, no longer available

2шт.

28

349062R91

SCREW - timing window cover, includes seal, no longer available

4шт.

29

310128R1

GASKET

- timing window cover

2шт.

31

318338R1

PLUG - housing, no longer available

2шт.

32

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW, (Replaces screw 147114) Hex Soc Hd, #10-24 x 1 1/4"

3шт.

33

312589R1

SEAL - plate screw, no longer available

3шт.

34

323964R1

PLATE - timing

1шт.

20679R1

SCREW - hex, 8-32 x 9/16 inch, no longer used

1шт.

332374R92

SET

KIT - injection pump O-ring and gasket

1шт.

21a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Housing plug (Replaces O-ring 303545R1)

1шт.
