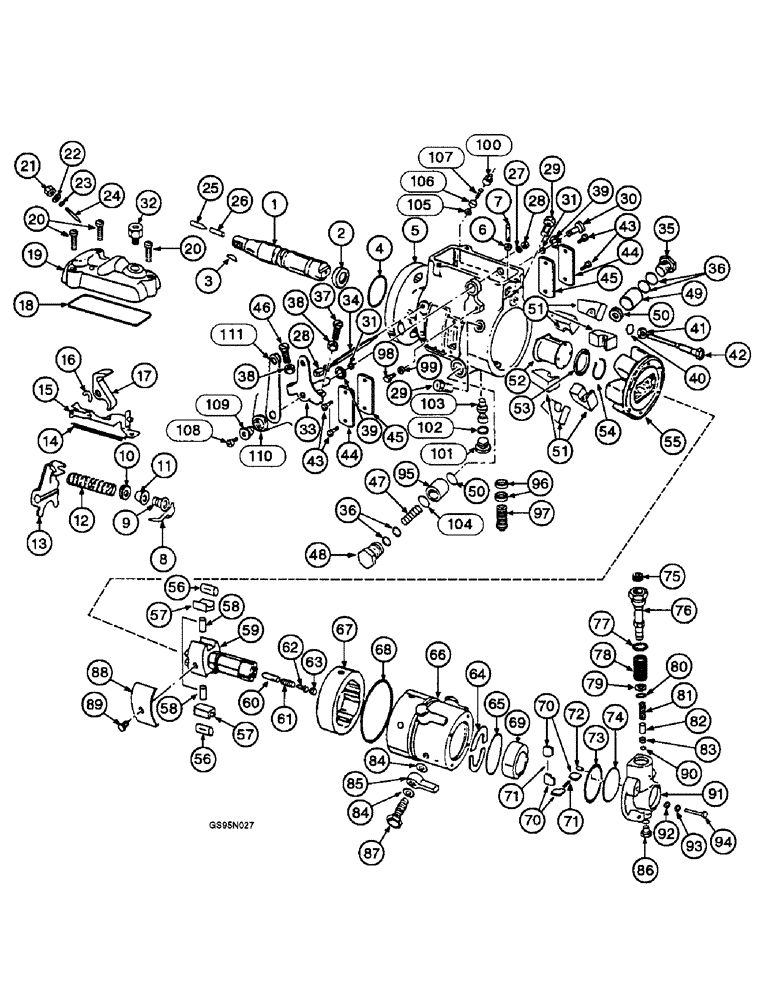

Запчасти Case IH D-282 (2-062) - FUEL INJECTION PUMP - 749535C91

749535C91

PUMP

ASSEMBLY - fuel injection, remanufactured for 613931C91, used with 416 and 422 cotton pickers, Includes: Ref. 1 - 111, no longer available

1шт.

1

A44710

SHAFT

- drive (Replaces drive shaft 304715R1)

1шт.

2

R14711

SEAL

- oil, drive shaft (Replaces seal 313288R1)

2шт.

3

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

(Replaces key 124546) #6, 5/32" x 5/8", HT

1шт.

4

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- pilot tube oil, 1-1/16 ID x 1/8 inch (Replaces seal 304720R1)

1шт.

5

702858C91

HOUSING

ASSEMBLY - fuel injection pump

1шт.

619449C1

BUSHING

- housing, no longer available

2шт.

6

304746R1

VALVE SPRING

SPRING - metering valve

1шт.

7

313673R1

LOCK VALVE

VALVE - metering

1шт.

313286R1

WASHER

SHIM - metering valve

1шт.

8

324188R91

ARM

- metering valve

1шт.

9

368015R1

RETAINER - idling spring

1шт.

10

338891R1

SPACER - idling spring, no longer available

1шт.

11

367998R1

GUIDE

- idling spring

1шт.

12

615987C1

SPRING

- governor control (Replaces spring 319738R1)

1шт.

13

321367R1

ARM

- governor

1шт.

14

367995R1

VALVE SPRING

SPRING - governor linkage

1шт.

15

702350C1

LINKAGE

HOOK - governor linkage

1шт.

313242R1

SCREW - linkage hook adjusting, no longer available

1шт.

313240R1

WASHER - hook adjusting screw, no longer available

1шт.

16

368023R1

CAM

- fuel shut-off shaft stop, no longer available

1шт.

17

304794R1

LEVER

- throttle shaft

1шт.

18

368012R1

SEAL

RING - seal, control cover

1шт.

19

304744R1

COVER ASSY

COVER - governor control

1шт.

20

319674R1

SCREW

- cover hold-down, no longer available

3шт.

319676R1

WASHER

- cover hold down screw

3шт.

138534

LOCK WASHER,Int Tooth, #10

WASHER - lock, internal tooth, No. 10

3шт.

21

51200274

NUT

- low idle adjusting screw (Replaces nut 368009R1)

1шт.

22

304728R1

WASHER

- low idle adjusting screw

1шт.

23

304721R1

SEAL

- low idle adjusting screw (Replaces seal 304729R1)

1шт.

24

304788R1

SET SCREW

- low idle adjusting

1шт.

25

304716R1

KNOB

BUTTON - thrust

1шт.

26

G48502

SPRING

- thrust button (Replaces spring 304717R1)

1шт.

27

304721R1

SEAL

- pivot shaft

2шт.

28

368018R1

NUT

- pivot shaft retaining

2шт.

29

368810R1

SCREW - head locking

2шт.

30

691424C1

SHAFT - shut-off (Replaces shaft 615828C1)

1шт.

313690R1

LOCK ASSY

CLIP - shaft retainer

1шт.

31

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Throttle shaft (Replaces seal 352219R1)

2шт.

32

A47066

COUPLING

CONNNECTOR - return line (Replaces connector 346729R91)

1шт.

33

691471C1

SHAFT

- throttle (Replaces shaft 702393C1)

1шт.

34

368016R1

SHAFT

- governor arm pivot

1шт.

35

319729R1

PLUG - piston hole power, no longer available

1шт.

36

319687R1

WIPER SEAL

- advance piston hole plug

4шт.

37

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- high idle adjusting (Replaces screw 304789R1)

1шт.

38

86837534

LOCK WASHER

- high idle adjusting (Replaces nut 368009R1)

2шт.

39

R22936

WASHER

- throttle shaft seal (Replaces washer 319744R1)

2шт.

40

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Guide stud (Replaces seal 352219R1)

1шт.

41

304742R1

NUT

- governor idling spring guide stud

1шт.

42

304793R1

STUD

- governor idling spring

1шт.

43

134-213

SCREW - cover

4шт.

44

304740R1

COVER ASSY

COVER - timing line

2шт.

45

NLS

NO LONGER SERVICED

- cover (Replaces gasket 367979R1)

2шт.

46

627588C1

SCREW - high idle adjusting, no longer used

1шт.

47

304799R1

SPRING - outer advance

1шт.

48

319684R1

PLUG - piston hole spring, no longer available

1шт.

49

1802902C1

PISTON

- power (Replaces piston 338908R1)

1шт.

50

368035R1

WASHER

- advance slide

2шт.

51

319669R1

WEIGHT

- governor

6шт.

52

321369R1

ARM

SLEEVE - governor thrust, no longer available

1шт.

53

368342R1

THRUST WASHER

- governor sleeve thrust

1шт.

54

100-1193

SNAP RING,#93, Ext

Ring, Snap, , governor cage (Replaces ring 368345R1) #93, Ext

1шт.

55

627946C91

RETAINER

- governor weight (Replaces retainer 702586R91)

1шт.

56

368805R1

ROLLER

- plunger cam

2шт.

57

368804R1

SHOE (ASSY)

SHOE - cam roller

2шт.

304719R91

ROTOR

HEAD ASSEMBLY - hydraulic, Includes: Ref. 58 - 66

1шт.

58

NSS

NOT SOLD SEPARAT

PLUNGER - rotor, order head assembly 304719R91

1шт.

59

NSS

NOT SOLD SEPARAT

ROTOR - order head assembly 304719R91

1шт.

60

606141C1

LOCK VALVE

VALVE - distributor rotor delivery, standard

1шт.

60

606142C1

LOCK VALVE

VALVE - distributor rotor delivery, oversize

1шт.

61

606144C1

VALVE SPRING

SPRING - distributor rotor delivery valve

1шт.

62

606145C1

LOCK ASSY

STOP - distributor rotor delivery valve

1шт.

63

317901R1

CAPSCREW,3/25" x 7/32"

SCREW - delivery valve retaining

1шт.

64

304800R1

WASHER

RETAINER - distributor rotor

2шт.

65

304801R1

RING

- distributor rotor retainer

1шт.

66

NSS

NOT SOLD SEPARAT

HEAD - hydraulic, order head assembly 304719R91

1шт.

67

613560C1

RING

- cam

1шт.

68

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

69

304745R1

GUIDE

LINER - transfer pump

1шт.

70

619761C1

BLADE

- transfer pump

4шт.

71

346724R1

SPRING

- transfer pump blade

2шт.

72

368812R1

DOWEL

PIN - roll, end plate

1шт.

73

367982R1

O-RING,0.154" Width

SEAL - transfer pump, no longer available

1шт.

74

346725R1

PLATE ASSY.

PLATE - thrust

1шт.

75

346705R91

PLUG

- end plate adjusting

1шт.

76

615442C1

SLEEVE CYLINDER

SLEEVE - end plate, no longer available

1шт.

77

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, End plate sleeve

1шт.

78

A43870

FILTER, FUEL

ELEMENT - filter (Replaces element 346708R1)

1шт.

79

A43871

SEAL

- element (Replaces seal 346709R1)

1шт.

80

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, End plate sleeve

1шт.

81

613556C1

VALVE SPRING

SPRING - regulating

1шт.

82

367988R1

PLUNGER

PISTON - regulating

1шт.

83

615142C1

SEAL

SEAL - regulating piston, order sleeve 1808814C1

1шт.

84

367984R1

SEALING WASHER

WASHER - fuel line connector screw

12шт.

85

REF

INSTRUCTION

CONNECTOR - injector pipe, furnished as part of injector pipe

1шт.

86

615695C1

PLUG

- end plate pipe, also order seal 340214R1 below (Replaces plug 346712R1)

1шт.

86a

340214R1

SEAL

- end plate pipe, not shown

1шт.

87

73613

SCREW

- fuel line connector (Replaces screw 367983R1)

6шт.

88

304797R1

VALVE SPRING

SPRING - leaf

1шт.

89

368806R1

SCREW - leaf spring adjusting

1шт.

90

D61943

SNAP RING,0.25", Int, #25

Ring, Snap, (replaces ring 346731R1) 0.25", Int, #25

1шт.

91

346704R1

PLATE ASSY.

PLATE - end

1шт.

92

319676R1

WASHER

- end plate screw

4шт.

93

138534

LOCK WASHER,Int Tooth, #10

WASHER - lock, internal tooth, No. 10, end plate screw (Replaces washer 115545)

4шт.

94

615491C1

SCREW

- end plate

4шт.

615733C1

CLIP

- end plate screw

4шт.

615789C1

STRAP - end plate

2шт.

95

319686R1

PISTON ASSY

PISTON - spring, no longer available

1шт.

96

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Head locating screw

2шт.

97

1802904C1

SCREW

- head locating (Replaces screw 627587C1)

1шт.

98

20789R1

SCREW - torque screw hole plug, 1/4 NF x 1/2 inch, no longer used

1шт.

99

324791R1

SEAL ASSY.

WASHER - torque screw hole plug

1шт.

100

313287R1

COVER ASSY

CAP - torque screw

1шт.

101

1805552C1

PLUG

- advance screw hole

1шт.

102

319689R1

WIPER SEAL

- advance screw hole plug

1шт.

103

347316R1

SCREW

- cam advance

1шт.

104

372618R1

SHIM

- advance, .032, .034 inch

1шт.

105

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Torque screw (Replaces seal 352219R1)

1шт.

106

321313R1

NUT

- torque screw

1шт.

107

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW - torque

1шт.

108

217921

SCREW - throttle lever spring, no longer available

1шт.

109

G49621

RETAINER

- throttle lever spring (Replaces retainer 304739R1)

1шт.

110

G48505

SPRING

- throttle lever (Replaces spring 304739R1)

1шт.

111

304738R91

LEVER

- throttle

1шт.

12736D

ELECTRICAL WIRE

WIRE - enclosed seal, lead pump and sealing

6шт.

279673R91

WASHER

WIRE - torque screw cap seal

1шт.
