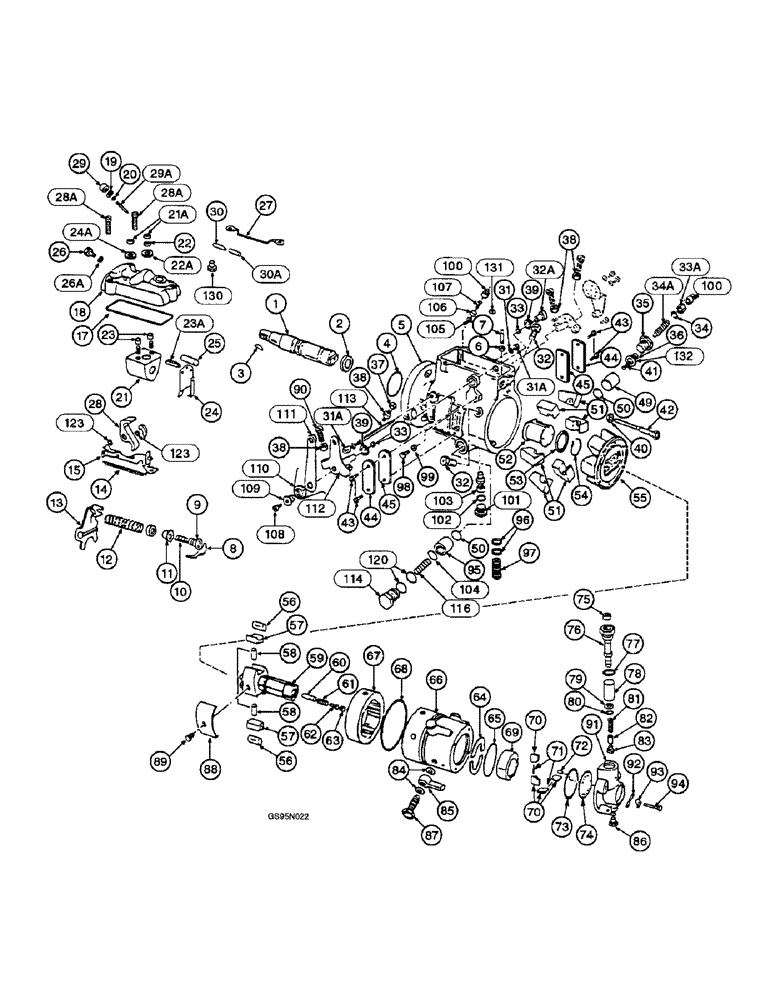

Запчасти Case IH D-282 (2-034) - FUEL INJECTION PUMP - 627142C91

749728C91

PUMP

ASSEMBLY - fuel injection, remanufactured (North America only), used with 615 combines, component parts do not apply to the remanufactured assembly, no longer available

1шт.

627142C91

PUMP ASSEMBLY - fuel injection, new, 615 combines, Includes: Ref. 1 - 132, no longer available

1шт.

1

A44710

SHAFT

- drive (Replaces drive shaft 304715R1)

1шт.

2

R14711

SEAL

- oil, drive shaft (Replaces seal 313288R1)

2шт.

3

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Drive shaft (Replaces key 124546) #6, 5/32" x 5/8", HT

1шт.

4

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- pilot tube, 1-1/16 ID x 1/8 inch (Replaces seal 304720R1)

1шт.

5

702858C91

HOUSING

ASSEMBLY - fuel injection pump

1шт.

619449C1

BUSHING

- housing, no longer available

2шт.

6

304746R1

VALVE SPRING

SPRING - fuel metering valve

1шт.

7

630224C1

PUSH BUTTON

VALVE - fuel metering

1шт.

8

324188R91

ARM

- fuel metering valve

1шт.

9

368015R1

RETAINER - governor idling spring

1шт.

10

304810R1

SPRING

- governor idling, no longer available

1шт.

11

367998R1

GUIDE

- governor idling spring

1шт.

12

615987C1

SPRING

- governor control (Replaces spring 319738R1)

1шт.

13

321367R1

ARM

- governor

1шт.

14

367995R1

VALVE SPRING

SPRING - governor linkage

1шт.

15

702350C1

LINKAGE

HOOK - governor linkage

1шт.

627313C91

SOLENOID

COVER AND SOLENOID ASSEMBLY - will work for 313676R92, Includes: Ref. 17 - 27

1шт.

17

368012R1

SEAL

RING - seal, governor control cover

1шт.

18

308614R1

COVER - control

1шт.

19

304728R1

WASHER

- idle adjusting screw cover

1шт.

20

304721R1

SEAL

- oil, idle adjusting screw, cover (Replaces seal 304729R1)

1шт.

21

691360C91

SWITCH

FRAME ASSEMBLY - shut down coil and solenoid, Includes: Ref. 21A - 25

1шт.

21a

321314R3

NUT

- terminal contact lock, one used with cover and solenoid assembly 313676R92, two used with cover and solenoid assembly 627313C91, no longer available

1шт.

22

308618R1

NUT - contact screw retaining, one used with cover and solenoid assembly 313676R92, two used with cover and solenoid assembly 627313C91

1шт.

22a

308617R1

WASHER - insulating, one used with cover and solenoid assembly 313676R92, two used with cover and solenoid assembly 627313C91

1шт.

23

1807718C1

TUBE

- cover insulating (Replaces tube 308619R1)

2шт.

23a

308616R1

VALVE SPRING

SPRING - shut down coil arm, no longer available

1шт.

24

308615R91

LEVER

ARM - shut down

1шт.

24a

24525R1

WASHER - ground terminal

1шт.

25

606103C1

SLEEVE - shut down coil arm

1шт.

26

217920

COVER

SCREW - hole plug, no longer available

1шт.

26a

395-31022

WASHER,#10

- hole plug, flat, 7/32 x 1/2 x 1/16 inch

1шт.

27

627601C91

CABLE PULLING GRIP

KIT - terminal ground wire, Includes: Parts Listed Below

1шт.

24525R1

WASHER - terminal ground

1шт.

NSS

NOT SOLD SEPARAT

WASHER - terminal ground

2шт.

NSS

NOT SOLD SEPARAT

WIRE - terminal ground

1шт.

28

304794R1

LEVER

- throttle shaft

1шт.

28a

319674R1

SCREW

- governor control cover hold down, no longer available

3шт.

319676R1

WASHER

- cover hold down screw

3шт.

138534

LOCK WASHER,Int Tooth, #10

WASHER - lock, internal tooth, No. 10

3шт.

29

86837534

LOCK WASHER

- idle adjusting screw lock, cover (Replaces nut 368009R1)

1шт.

29a

304788R1

SET SCREW

- idle adjusting, cover

1шт.

30

304716R1

KNOB

BUTTON - drive shaft thrust

1шт.

30a

G48502

SPRING

- drive shaft thrust button (Replaces spring 304717R1)

1шт.

31

304721R1

SEAL

- governor arm pivot shaft retaining nut

2шт.

31a

368018R1

NUT

- governor arm pivot shaft retaining

2шт.

32

368810R1

SCREW - hydraulic head locking

2шт.

32a

691424C1

SHAFT - shut-off, used with pump 627142C91 (Replaces shaft 615828C1)

1шт.

33

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Throttle shaft

2шт.

33a

321313R1

NUT

- advance adjusting screw lock

1шт.

34

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Advance adjusting screw

1шт.

34a

319691R1

CAPSCREW,1/4" x 1.385"

SCREW - advance adjusting

1шт.

35

680209C1

PLUG

- piston hole, no longer available

1шт.

36

319692R1

GUIDE

- advance adjusting spring

1шт.

37

368008R1

SCREW,Drilled Sl Hex, #10 - 32 x 1.53"

- shut-off arm adjusting

1шт.

38

51200274

NUT

- idle adjusting screw (Replaces nut 368009R1)

4шт.

39

R22936

WASHER

- throttle shaft seal (Replaces washer 319744R1)

2шт.

40

368014R1

WASHER

- guide stud

1шт.

41

319683R1

SPRING

- advance trimmer

1шт.

42

313677R1

STUD

- governor idling spring guide

1шт.

43

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

- machine, slit oval head, No. 8 x 5/16 inch, used with timing line cover

4шт.

44

304740R1

COVER ASSY

COVER - timing line

2шт.

45

NLS

NO LONGER SERVICED

- timing line cover (Replaces gasket 367979R1)

2шт.

49

603920C1

PISTON - power

1шт.

50

368035R1

WASHER

- automatic advance slide

2шт.

51

319669R1

WEIGHT

- governor

6шт.

52

321369R1

ARM

SLEEVE - governor thrust, no longer available

1шт.

53

368342R1

THRUST WASHER

- governor thrust

1шт.

54

100-1193

SNAP RING,#93, Ext

Ring, Snap, , governor weight (Replaces ring 368345R1) #93, Ext

1шт.

55

627946C91

RETAINER

ASSEMBLY - governor weight (Replaces retainer assembly 702568C91)

1шт.

615768C1

CLIP

RING - flexible retaining

1шт.

56

368805R1

ROLLER

- plunger acutating cam

2шт.

57

368804R1

SHOE (ASSY)

SHOE - plunger acutating cam

2шт.

304719R91

ROTOR

HEAD ASSEMBLY - hydraulic, Includes: Ref. 58 - 66

1шт.

58

NSS

NOT SOLD SEPARAT

PLUNGER - rotor, order head assembly 304719R91

1шт.

59

NSS

NOT SOLD SEPARAT

ROTOR - order head assembly 304719R91

1шт.

60

606141C1

LOCK VALVE

VALVE - distributor rotor delivery, standard

1шт.

60

606142C1

LOCK VALVE

VALVE - distributor rotor delivery, oversize

1шт.

61

606144C1

VALVE SPRING

SPRING - distributor rotor delivery valve

1шт.

62

606145C1

LOCK ASSY

STOP - distributor rotor delivery valve

1шт.

63

317901R1

CAPSCREW,3/25" x 7/32"

SCREW - distributor rotor delivery valve retaining

1шт.

64

304800R1

WASHER

RETAINER - distributor rotor

2шт.

65

304801R1

RING

- distributor rotor retainer

1шт.

66

NSS

NOT SOLD SEPARAT

HEAD - hydraulic

1шт.

317902R2

SCREW - head assembly

1шт.

67

613560C1

RING

- cam

1шт.

68

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

69

304745R1

GUIDE

LINER - transfer pump

1шт.

70

619761C1

BLADE

- transfer pump (Replaces blade 346728R1)

4шт.

71

346724R1

SPRING

- transfer pump blade

2шт.

72

368812R1

DOWEL

PIN - roll, end plate location

1шт.

73

367982R1

O-RING,0.154" Width

SEAL - transfer pump, 1-5/16 x 1-13/16 x 5/32 inch, no longer available

1шт.

74

346725R1

PLATE ASSY.

PLATE - thrust

1шт.

75

346705R91

PLUG

- end plate adjusting

1шт.

76

1808814C1

SPOOL

SLEEVE - end plate

1шт.

77

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Cap and filter fuel inlet strainer (Replaces seal 368030R1)

1шт.

78

A43870

FILTER, FUEL

ELEMENT - filter (Replaces element 346708R1)

1шт.

79

A43871

SEAL

- element (Replaces seal 346709R1)

1шт.

80

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Sleeve set

1шт.

81

A43867

SPRING

- regulating (Replaces spring 346707R1)

1шт.

82

367988R1

PLUNGER

PISTON - regulating

1шт.

83

615142C1

SEAL

SEAL - regulating piston, order sleeve 1808814C1, item 76

1шт.

84

367984R1

SEALING WASHER

WASHER - fuel line connector

12шт.

85

NSS

NOT SOLD SEPARAT

CONNECTOR - injection pipe, furnished as part of injection pipe, see Figure 2-78

1шт.

86

615695C1

PLUG

- end plate pipe, also order seal 340214R1 below (Replaces plug 346712R1)

1шт.

86a

340214R1

SEAL

- end plate plug, not shown

1шт.

87

73613

SCREW

- fuel line connector (Replaces screw 367983R1)

6шт.

88

304797R1

VALVE SPRING

SPRING - plunger limiting leaf

1шт.

89

368806R1

SCREW - plunger limiting leaf spring adjusting

1шт.

90

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- high idle, used with pump 673600C91 (Replaces screw 304789R1)

1шт.

90

627588R1

SCREW - high idle, used with pump 627142C91, no longer used

1шт.

91

346704R1

PLATE ASSY.

PLATE - injection pump end

1шт.

92

615489C1

LOCK ASSY

STRAP - end plate

2шт.

93

615733C1

CLIP

- end plate screw

4шт.

94

615491C1

SCREW

- end plate

4шт.

95

319686R1

PISTON ASSY

PISTON - load advance spring, no longer available

1шт.

96

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Head locating screw

2шт.

97

1802905C1

SCREW

- head locating (Replaces screw 627207C1)

1шт.

98

20789R1

SCREW - torque hole plug, 1/4 NF x 1/2 inch, no longer available

1шт.

99

324791R1

SEAL ASSY.

WASHER - torque screw hole plug

1шт.

100

313287R1

COVER ASSY

CAP - torque

2шт.

101

1805552C1

PLUG

- advance screw hole

1шт.

102

319689R1

WIPER SEAL

- advance screw hole

1шт.

103

347316R1

SCREW

- cam advance

1шт.

104

368575R1

SHIM

- advance spring, 0.004, 0.006 inch

1шт.

104

372617R1

SHIM - advance spring, 0.0155, 0.0175 inch

1шт.

104

372618R1

SHIM

- advance spring, 0.032, 0.034 inch

1шт.

105

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Metering valve controlling torque screw seal nut (Replaces seal 352219R1)

1шт.

106

321313R1

NUT

- metering valve controlling torque screw lock

1шт.

107

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW - torque

1шт.

108

217921

SCREW - throttle lever spring, no longer available

1шт.

109

G49621

RETAINER

- throttle lever spring (Replaces retainer 304743R1)

1шт.

110

G48505

SPRING

- throttle lever (Replaces spring 304739R1)

1шт.

111

304738R91

LEVER

- throttle

1шт.

112

691471C1

SHAFT

- throttle (Replaces shaft 702393C1)

1шт.

113

368016R1

SHAFT

- governor arm pivot

1шт.

114

319684R1

PLUG - piston hole, no longer available

1шт.

116

347252R1

SPRING

- advance, inner

1шт.

116

347251R1

SPRING - advance, outer, no longer available

1шт.

120

319687R1

WIPER SEAL

- piston hole plug

4шт.

123

313690R1

LOCK ASSY

CLIP - shaft retaining

2шт.

130

NSS

NOT SOLD SEPARAT

NUT - terminal ground, used with cover and solenoid assembly 313676R92

1шт.

131

313286R1

WASHER

SHIM - valve stem

1шт.

132

627885C1

RING

- power piston (Replaces ring 346659R1)

1шт.

606491C1

PLATE ASSY.

PLATE - name

1шт.

168-1

DRIVE SCREW,Rnd Hd, #10 x 1/8"

- name plate, drive, round head, No. 10 x 1/8 inch (Replaces screw 145362)

2шт.

1806929C91

GASKET KIT

- fuel injection pump overhaul (Replaces kit 347784R91)

1шт.
