Запчасти Case IH D-282 (2-026) - FUEL INJECTION PUMP - 749725C91

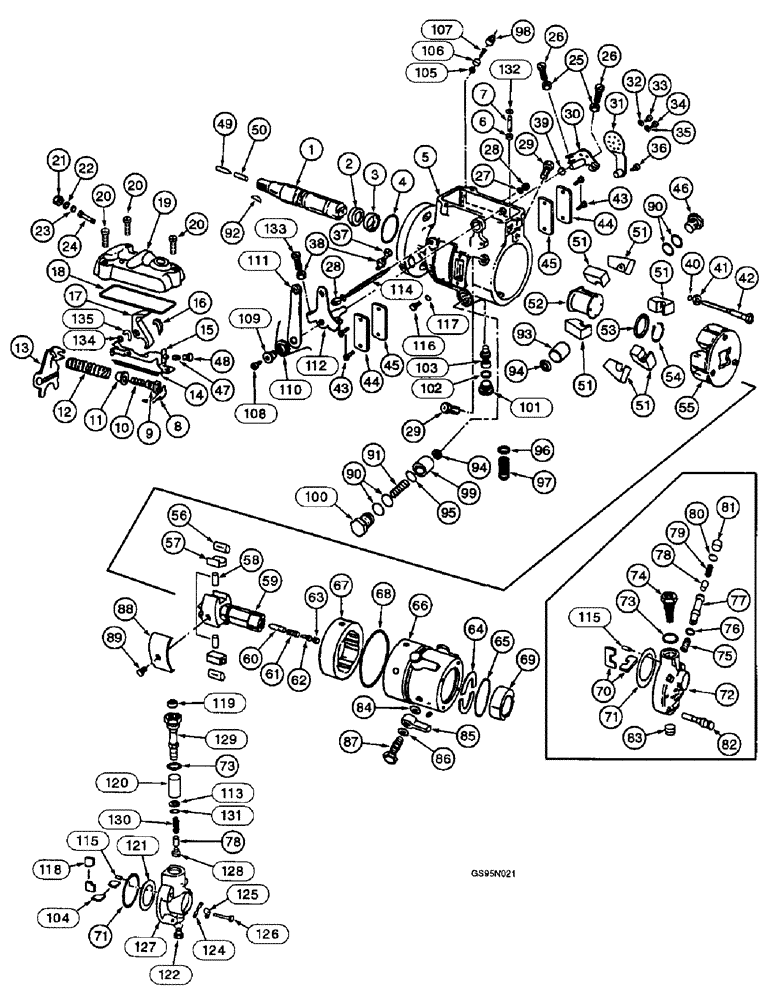

Схема запчастей Case IH D-282 - (2-026) - FUEL INJECTION PUMP - 749725C91
4
117
45
131
104
89
52
75
23
18
108
71
121
129
46
26
45
37
65
62
22
93
80
110
116
118
68
77
94
74
51
112
15
82
98
42
30
105
48
111
119
127
24
101
67
43
33
64
96
16
43
1
134
55
73
3
19
25
44
85
7
132
90
130
81
9
39
51
86
44
53
57
84
135
95
78
78
10
128
20
54
70
20
113
17
90
2
31
28
103
91
27
124
29
100
63
32
107
50
29
71
49
58
115
115
87
51
56
6
12
126
51
125
122
13
14
69
133
97
83
28
5
38
66
88
61
21
8
99
36
92
109
106
51
11
73
120
60
114
102
79
76
26
34
47
41
20
40
94
72
35
59

Артикул

Название

Примечание

Количество

749725C91

PUMP ASSEMBLY - fuel injection, remanufactured for 319958R91, used with 403 combines, Includes: Ref. 1 - 135, no longer available

1шт.

1

A44710

SHAFT

- drive (Replaces drive shaft 304715R1)

1шт.

2

R14711

SEAL

- oil, drive shaft (Replaces seal 313288R1)

1шт.

3

R14711

SEAL

- oil, drive shaft (Replaces seal 313288R1)

1шт.

4

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- pilot tube, 1-1/16 ID x 1/8 inch (Replaces seal 304720R1)

1шт.

5

702858C91

HOUSING

ASSEMBLY - fuel injection pump

1шт.

619449C1

BUSHING

- housing, no longer available

2шт.

6

304746R1

VALVE SPRING

SPRING - fuel metering valve

1шт.

7

313673R1

LOCK VALVE

VALVE - fuel metering

1шт.

8

324188R91

ARM

- fuel metering valve

1шт.

9

368015R1

RETAINER - governor idling spring

1шт.

10

304810R1

SPRING

- governor idling, no longer available

1шт.

11

367998R1

GUIDE

- governor idling spring

1шт.

12

368000R1

VALVE SPRING

SPRING - governor control

1шт.

13

321367R1

ARM

- governor

1шт.

14

367995R1

VALVE SPRING

SPRING - governor linkage

1шт.

15

702350C1

LINKAGE

HOOK - governor linkage (Replaces hook 313241R91)

1шт.

16

368023R1

CAM

- fuel shut-off, no longer available

1шт.

17

304794R1

LEVER

- throttle shaft

1шт.

18

368012R1

SEAL

RING - seal, governor control cover

1шт.

19

304744R1

COVER ASSY

COVER - governor control

1шт.

20

319674R1

SCREW

- governor control cover hold down, no longer available

3шт.

319676R1

WASHER

- cover hold down screw

3шт.

138534

LOCK WASHER,Int Tooth, #10

WASHER - lock, internal tooth, No. 10

3шт.

21

51200274

NUT

- idle adjusting screw lock, cover (Replaces nut 368009R1)

1шт.

22

304728R1

WASHER

- idle adjusting screw cover

1шт.

23

304721R1

SEAL

- idle adjusting screw oil, cover (Replaces seal 304729R1)

1шт.

24

304788R1

SET SCREW

- idle adjusting, cover

1шт.

25

51200274

NUT

- shut-off valve adjusting screw (Replaces nut 368009R1)

2шт.

26

51200273

SCREW

- shut-off lever adjusting (Replaces screw 368002R1)

2шт.

27

304721R1

SEAL

- governor arm pivot shaft retaining nut

2шт.

28

368018R1

NUT

- governor arm pivot shaft retaining

2шт.

29

368810R1

SCREW - hydraulic head locking

2шт.

30

1802101C91

SHAFT - shut-off, no longer available (Replaces shaft 702394C1)

1шт.

31

G45337

ARM

- adjustable shut-off (Replaces arm 304748R91)

1шт.

32

138534

LOCK WASHER,Int Tooth, #10

WASHER - lock, internal tooth, No. 10, shut-off lever positioning (Replaces washer 11545)

1шт.

33

217920

COVER

SCREW - hex socket, No. 10-32 x 3/8 inch, shut-off lever retaining, no longer available

1шт.

34

368026R1

SCREW - shut-off lever positioning

1шт.

35

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - lock, internal tooth, No. 8, shut-off lever positioning screw (Replaces washer 115544)

1шт.

36

463-1086

SCREW,Hex Hd, #8-32 x 3/8"

- machine, hex, No. 8 NC x 3/8 inch, shut-off arm fitting (Replaces screw 450643)

1шт.

37

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- throttle high idle adjustment (Replaces screw 304789R1)

1шт.

38

51200274

NUT

- throttle high idle adjusting screw lock (Replaces nut 368009R1)

2шт.

39

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Throttle shaft torque screw seal unit (Replaces seal 352219R1)

2шт.

40

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Guide stud (Replaces seal 352219R1)

1шт.

41

304742R1

NUT

- governor idling spring guide stud

1шт.

42

304793R1

STUD

- governor idling spring guide

1шт.

43

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

- machine, slotted oval head, No. 8-32 x 5/16 inch, used with timing line cover

4шт.

44

304740R1

COVER ASSY

COVER - timing line

2шт.

45

51200272

GASKET

- timing line cover (Replaces gasket 367979R1)

2шт.

46

627938C1

PLUG

- piston hole

1шт.

47

368019R1

SPRING - governor linkage hook action damper, used with linkage hook 313241R91

1шт.

48

368020R1

SLEEVE CYLINDER

SLEEVE - governor linkage hook action damper, used with linkage hook 313241R91

1шт.

49

304716R1

KNOB

BUTTON - drive shaft thrust

1шт.

50

G48502

SPRING

- drive shaft thrust button (Replaces spring 304717R1)

1шт.

51

368343R1

WEIGHT

- governor

6шт.

52

321369R1

ARM

SLEEVE - governor thrust, no longer available

1шт.

53

368342R1

THRUST WASHER

- governor thrust

1шт.

54

100-1193

SNAP RING,#93, Ext

Ring, Snap, , governor weight (Replaces ring 368345R1) #93, Ext

1шт.

55

627946C91

RETAINER

ASSEMBLY - governor weight (Replaces retainer assembly 702568C91)

1шт.

615768C1

CLIP

RING - flexible retaining

1шт.

56

368805R1

ROLLER

- plunger actuating cam

2шт.

57

368804R1

SHOE (ASSY)

SHOE - plunger actuating cam

2шт.

304719R91

ROTOR

HEAD ASSEMBLY - hydraulic, Includes: Ref. 58 - 66

1шт.

58

NSS

NOT SOLD SEPARAT

PLUNGER - rotor, order head assembly 304719R91

1шт.

59

NSS

NOT SOLD SEPARAT

ROTOR - order head assembly 304719R91

1шт.

60

606141C1

LOCK VALVE

VALVE - distributor rotor delivery, standard

1шт.

60

606142C1

LOCK VALVE

VALVE - distributor rotor delivery, oversize

1шт.

61

606144C1

VALVE SPRING

SPRING - distributor rotor delivery valve

1шт.

62

606145C1

LOCK ASSY

STOP - distributor rotor delivery valve

1шт.

63

317901R1

CAPSCREW,3/25" x 7/32"

SCREW - distributor rotor delivery valve retaining

1шт.

64

304800R1

WASHER

RETAINER - distributor rotor

2шт.

65

304801R1

RING

- distributor rotor retainer

1шт.

66

NSS

NOT SOLD SEPARAT

HEAD - hydraulic, order head assembly 304719R91

1шт.

67

613560C1

RING

- cam

1шт.

68

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

69

304745R1

GUIDE

LINER - transfer pump

1шт.

70

367981R1

SHEET

BLADE - transfer pump

2шт.

71

367982R1

O-RING,0.154" Width

SEAL - transfer pump, 1-5/16 x 1-13/16 x 5/32 inch, no longer available

1шт.

72

367985R91

COVER ASSY

PLATE - injection pump end

1шт.

73

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Cap and filter fuel inlet strainer

1шт.

74

368029R91

SIEVE

STRAINER - cap and filter fuel inlet

1шт.

75

367986R1

VALVE SPRING

SPRING - fuel pressure regulating valve, plunger retaining

1шт.

76

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Regulating valve plunger sleeve seal

1шт.

77

304795R1

SLEEVE - regulating valve plunger

1шт.

78

367988R1

PLUNGER

PISTON - fuel pressure regulating

1шт.

79

367989R1

VALVE SPRING

SPRING - fuel pressure regulating

1шт.

80

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Regulating valve plunger sleeve seal

1шт.

81

367990R1

PLUG - end plate sleeve retaining, standard

1шт.

81

343767R1

PLUG - end plate sleeve retaining, .010 inch, no longer available

1шт.

81

305139R1

PLUG

- end plate sleeve retaining, .020 inch

1шт.

81

367991R1

PLUG - end plate sleeve retaining, .030 inch, no longer available

1шт.

81

305140R1

PLUG - end plate sleeve retaining, .040 inch

1шт.

81

367992R1

PLUG - end plate sleeve retaining, .050 inch

1шт.

81

305141R1

PLUG

- end plate sleeve retaining, .060 inch

1шт.

81

305142R1

PLUG - end plate sleeve retaining, .070 inch

1шт.

81

317957R1

PLUG - end plate sleeve retaining, .080 inch, no longer available

1шт.

81

305144R1

PLUG

- end plate sleeve retaining, .090 inch

1шт.

82

304790R1

SCREW

- injection pump end plate, no longer available

4шт.

83

603836C1

PLUG - injection pump end plate pipe, no longer available (Replaces plug 321076R1)

1шт.

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- end plate pipe plug, 3/8 x 9/16 inch (Replaces seal 312593R1)

1шт.

84

367984R1

SEALING WASHER

WASHER - fuel line connector

6шт.

85

REF

INSTRUCTION

CONNECTOR - injection pipe, furnished as part of injection pipe, see Figure 2-78

1шт.

86

367984R1

SEALING WASHER

WASHER - fuel line connector

6шт.

87

73613

SCREW

- fuel line connector (Replaces screw 367983R1)

6шт.

88

304797R1

VALVE SPRING

SPRING - plunger limiting leaf

1шт.

89

368806R1

SCREW - plunger limiting leaf spring adjusting

1шт.

90

319687R1

WIPER SEAL

- piston hole plug

4шт.

91

304799R1

SPRING - automatic advance

1шт.

92

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

(Replaces key 124546) #6, 5/32" x 5/8", HT

1шт.

93

1802902C1

PISTON

- power (Replaces piston 338980R1)

1шт.

94

368035R1

WASHER

- automatic advance slide

2шт.

95

372618R1

SHIM

- advance spring, .032, .034

1шт.

96

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Head locating screw

1шт.

97

1802904C1

SCREW

- head locating (Replaces screw 627587C1)

1шт.

98

313287R1

COVER ASSY

CAP - torque

1шт.

279673R91

WASHER

TORQUE - screen cap seal, wire

1шт.

99

319686R1

PISTON ASSY

PISTON - load advance spring, no longer available

1шт.

100

319684R1

PLUG - piston hole, no longer available

1шт.

101

1805552C1

PLUG

- advance screw hole

1шт.

102

319689R1

WIPER SEAL

- advance screw hole

1шт.

103

347316R1

SCREW

- cam advance

1шт.

104

346724R1

SPRING

- transfer pump blade

2шт.

105

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Metering valve controlling torque screw seal nut (Replaces seal 352219R1)

1шт.

106

321313R1

NUT

- metering valve controlling torque screw lock

1шт.

107

321312R1

CAPSCREW,1/4" x 1 31/64"

SCREW - torque

1шт.

108

217921

SCREW - hex socket, No. 10-32 x 5/8 inch, throttle arm spring retainer screw, no longer available

1шт.

109

G49621

RETAINER

- throttle arm spring (Replaces retainer 304743R1)

1шт.

110

G48505

SPRING

- throttle arm (Replaces spring 304739R1)

1шт.

111

304738R91

LEVER

- throttle

1шт.

112

691471C1

SHAFT

- throttle (Replaces shaft 702393C1)

1шт.

113

A43871

SEAL

- filter element (Replaces seal 346709R1)

1шт.

114

368016R1

SHAFT

- governor arm pivot

1шт.

115

368812R1

DOWEL

PIN - roll, end plate location

1шт.

116

20789R1

SCREW - torque screw, 1/4 NF x 1/2 inch, no longer used

1шт.

117

324791R1

SEAL ASSY.

WASHER - torque screw plug

1шт.

118

619761C1

BLADE

- transfer pump

4шт.

119

346705R91

PLUG

- end plate adjusting

1шт.

120

A43870

FILTER, FUEL

ELEMENT - filter (Replaces element 346708R1)

1шт.

121

346725R1

PLATE ASSY.

PLATE - thrust

1шт.

122

615695C1

PLUG

- end plate pipe, also order seal 340214R1 below (Replaces plug 346712R1)

1шт.

123

340214R1

SEAL

- end plate plug, not shown

1шт.

124

615489C1

LOCK ASSY

STRAP - end plate

2шт.

125

615733C1

CLIP

- screw retaining

4шт.

126

615491C1

SCREW

- end plate retaining

4шт.

127

346704R1

PLATE ASSY.

PLATE - end

1шт.

128

615142C1

SEAL

SEAL - regulating piston

1шт.

129

615442C1

SLEEVE CYLINDER

SLEEVE - end plate, no longer available

1шт.

130

613556C1

VALVE SPRING

SPRING - regulating

1шт.

131

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

132

313286R1

WASHER

SHIM - metering valve

1шт.

133

627588C1

SCREW - throttle stop lever, no longer available

1шт.

134

R22936

WASHER

- throttle shaft seal (Replaces washer 319744R1)

2шт.

135

313690R1

LOCK ASSY

CLIP - shaft retainer

1шт.

606491C1

PLATE ASSY.

PLATE - name

1шт.

168-1

DRIVE SCREW,Rnd Hd, #10 x 1/8"

- name plate, drive round head, No. 10 x 1/8 Inch (Replaces screw 145362)

2шт.

1806929C91

GASKET KIT

- fuel injection pump overhaul (Replaces Kit 347784R91)

1шт.

Выбрано товаров: 156
