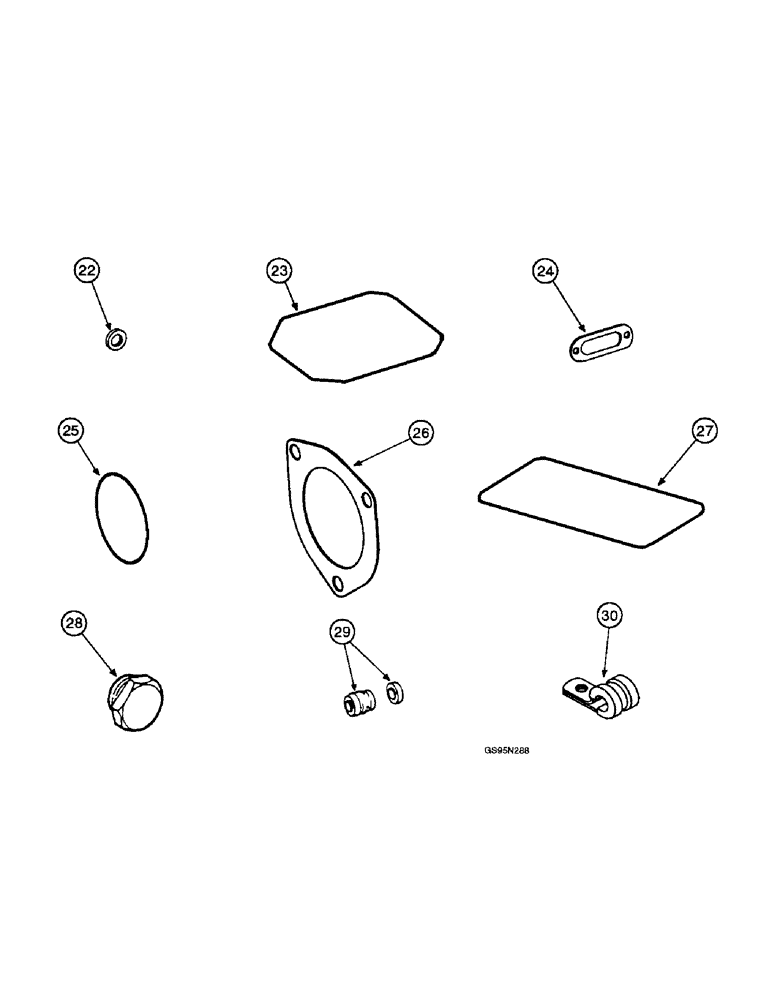

Запчасти Case IH D-282 (2-024) - SERVICE KITS / CLIPS

332374R92

SET

KIT - fuel injection pump overhaul, used with International R.D. pump, Includes: Ref. 22 - 26

1шт.

22

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- control shaft, 3/8 x 9/16 inch (Replaces seal 312593R1)

2шт.

238-5009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

-009, 70 Duro, .208" ID x .070" Thk, Low idle and window cover screws (Replaces seal 321730R1)

5шт.

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Load adjusting screw (Replaces seal 310137R1)

1шт.

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Torque spring adjusting screw (Replaces seal 310136R1)

3шт.

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk, Fuel stop and bumper spring screw (Replaces seal 310135R1)

2шт.

59624D

GASKET

- cam retainer screw and primary pump screw

4шт.

310142R1

SEAL

- retraction valve retainer

1шт.

318335R1

GASKET

- fuel line fitting

16шт.

303545R1

O-RING

SEAL - distributor head plug, pump housing plug and inlet fitting

3шт.

345032R1

GASKET

- gear hub, no longer available

1шт.

23

310126R1

GASKET

- pump housing top cover

1шт.

24

310128R1

GASKET

- timing window cover

2шт.

303545R1

O-RING

SEAL - housing plug

2шт.

312589R1

SEAL - oil seal plate screw, no longer available

3шт.

25

238-5149

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

Main shaft oil seal plate (Replaces gasket 310140R1) -149, 90 Duro, 2.8" ID x .103" Thk

1шт.

26

278347R1

GASKET

- injection pump

1шт.

1806929C91

GASKET KIT

- overhaul gasket, Roosa Master pumps (Replaces kit 347784R91), Includes: Ref. 27 - 28

1шт.

73453

GASKET

- timing cover (Replaces gasket 367979R1)

2шт.

27

368012R1

SEAL

RING - seal, governor control cover

1шт.

28

615695C1

PLUG

- end plate pipe, also order seal 340214R1 below (Replaces plug 346712R1)

1шт.

603936C1

PLUG

- end plate

1шт.

615768C1

CLIP

RING - flexible retaining

1шт.

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- pilot tube oil, 1-1/16 ID x 1/8 inch (Replaces seal 304720R1 )

1шт.

304721R1

SEAL

- pivot shaft

3шт.

R14711

SEAL

- oil, drive shaft (Replaces oil seal 313288R1)

2шт.

319687R1

WIPER SEAL

- piston hole plug

4шт.

319689R1

WIPER SEAL

- advance screw hole plug

1шт.

346706R1

SEAL - regulating piston, order sleeve 1808814C1

1шт.

A43871

SEAL

- element (Replaces seal 346709R1)

1шт.

340214R1

SEAL

- end plate plug

1шт.

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Advance adjusting screw

5шт.

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Head locating screw

4шт.

367982R1

O-RING,0.154" Width

SEAL - transfer pump, no longer available

1шт.

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, End plate sleeve, no longer available (Replaces seal 368030R1)

2шт.

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

615142C1

SEAL

SEAL - regulating piston, order sleeve 1808814C1

1шт.

R22936

WASHER

- throttle shaft seal (Replaces washer 319744R1)

2шт.

324791R1

SEAL ASSY.

WASHER - torque screw hole plug

1шт.

367984R1

SEALING WASHER

WASHER - fuel line connector screw

12шт.

368014R1

WASHER

- guide stud

1шт.

29

687161C92

KIT

- seal, water pump, includes seal and seat

1шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, four used on 416 and 422 cotton pickers; one used at rear of crankcase front plate and two used at front and rear valve covers on 615 combines

1шт.

30

370820R1

CLIP

CLAMP - water outlet housing, left-hand hole, used with 656 tractors

1шт.

370535R1

CLIP

- oil pressure switch cable, used with 656 tractors

2шт.

384559R1

CLIP

- oil pan mounting bolts, right-hand side, used with 615 combines

3шт.

263514R91

CLIP

- cable, used with 615 combines, 416 and 422 cotton pickers, no longer available

1шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.
