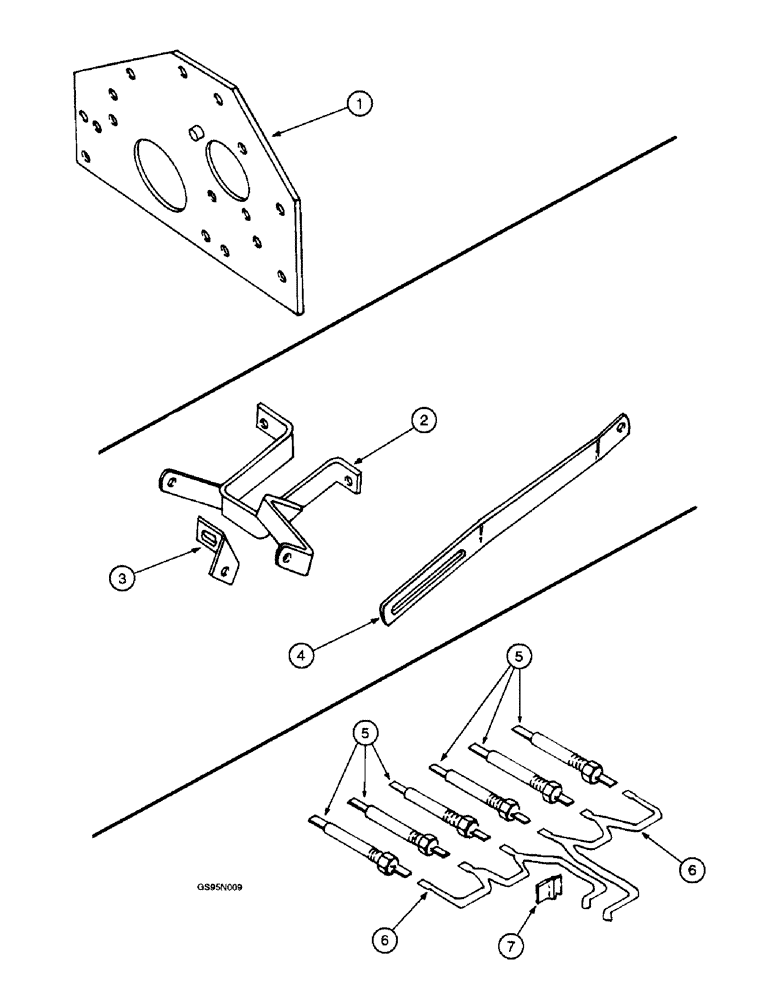

Запчасти Case IH D-282 (2-020) - ENGINE SUPPORT, 615 COMBINES / GENERATOR MOUNTING BRACKETS, 403 COMBINES / GLOW PLUGS & CABLES

1

312509R21

PLATE - rear engine support, 615 Combine, no longer available

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces screw 179883)

6шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

(Replaces 179858) Hex, 7/16"-14 x 1", G5, Full Thd

4шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC (Replaces nut 271500)

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

6шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

4шт.

2

379982R91

BRACKET - generator, 403 Combine, no longer available

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch (Replaces screw 179850)

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

2шт.

3

379986R1

STIFFENER - generator

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces screw 179881) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

1шт.

4

379987R1

SUPPORT

BRACER - generator

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch (Replaces bolt 179818)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

1шт.

95-81070

WASHER,.344" x 3/4" x .120"

- generator brace, flat, 11/32 x 3/4 x 1/8 inch (Replaces washer 557264R1)

1шт.

5

304131R3

GLOW PLUG

PLUG - glow (Replaces plugs 343894R1 and 343977R1)

6шт.

Ref # 5 (304131R3) : Though this page references combines, it also applies for the 656 tractor.

1шт.

6

319965R91

HARNESS

- glow plug cable

2шт.

7

1998754

BLOCK

- junction (Replaces junction block 42915D)

1шт.
