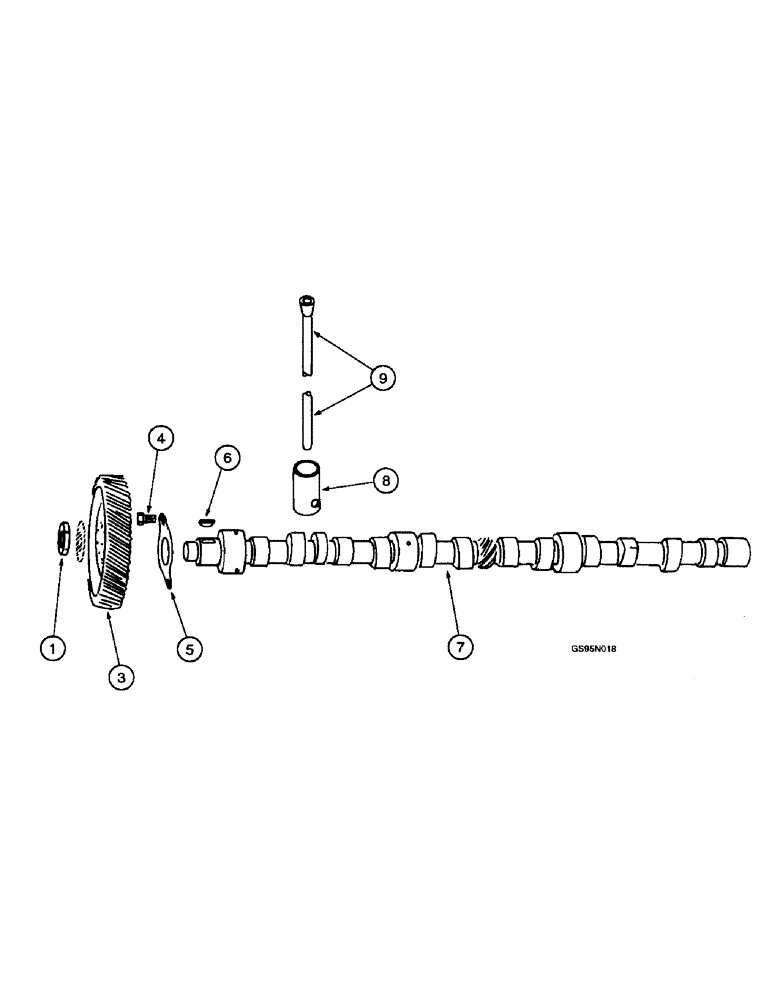

Запчасти Case IH D-282 (2-014) - CAMSHAFT AND RELATED PARTS

1

16026DB

NUT

- camshaft gear

1шт.

3

312500R1

PINION

GEAR - camshaft, used with 403 and 615 combines, 416 and 422 cotton pickers

1шт.

3

367240R1

PINION

GEAR - camshaft, used with 656 and 706 tractors, no longer available, order gear 312500R1 above

1шт.

4

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex lock, 3/8 NC x 3/4 inch, camshaft thrust plate

2шт.

5

35650HA

FLANGE

PLATE - camshaft thrust

1шт.

6

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

KEY - Woodruff, 5/32 x 7/8 inch, camshaft gear

1шт.

7

367229R1

SHAFT

CAMSHAFT - engine

1шт.

8

684729C1

TAPPET

- valve (Replaces tappets 75524R3 and 911776R3)

1шт.

9

164436R91

PUSH ROD

ROD - valve push

12шт.
