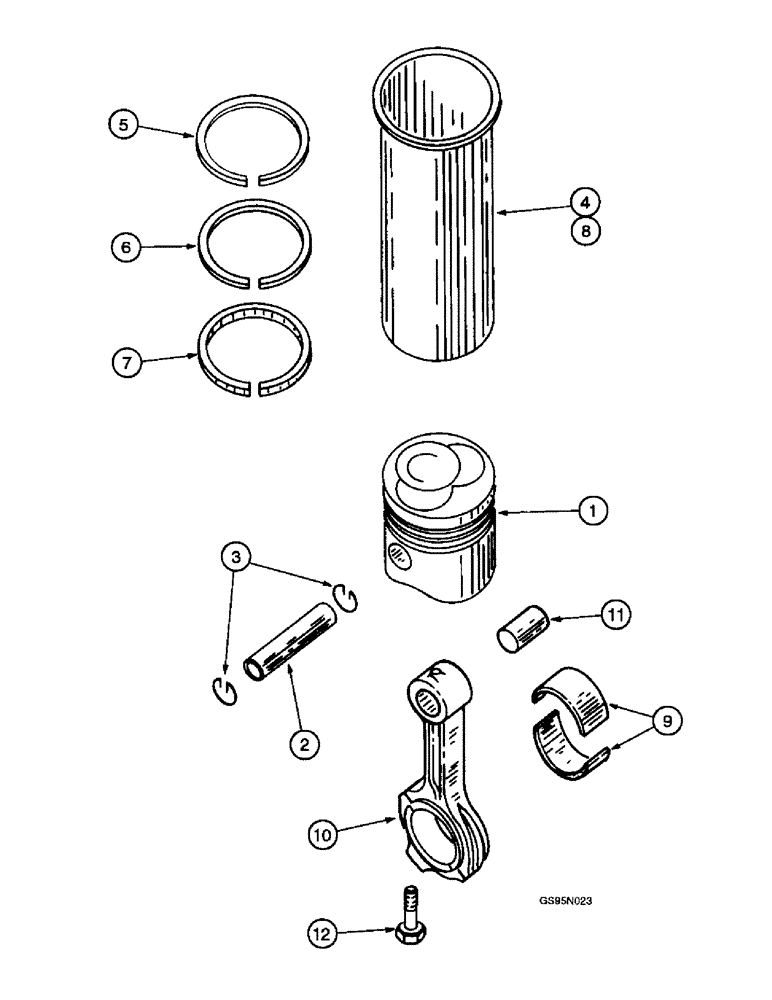

Запчасти Case IH D-282 (2-013A) - CONNECTING RODS, PISTONS AND SLEEVE SETS, ENGINE SERIAL NO. 71778 & AFTER

612008C91

PISTON

ASSEMBLY - includes cylinder sleeve, used with engine serial number 71778 and after, Includes: Ref. 1 - 7

6шт.

1

NSS

NOT SOLD SEPARAT

PISTON - order assembly

1шт.

2

332436R1

PIN,28.57mm OD x 17.48mm L

- piston

1шт.

3

100-21112

SNAP RING,1.125", Int, #112

Ring, Snap, , Piston pin (Replaces ring 338835R1) 1.125", Int, #112

2шт.

4

609028C1

SLEEVE

- cylinder, standard, used with piston assembly 612008C91 above

1шт.

674727C91

RING

KIT - piston ring, no longer available, order kit 680035C91

1шт.

680035C91

RING, SET

KIT - piston ring

1шт.

5

NSS

NOT SOLD SEPARAT

RING - compression, top or first groove, order kit 674727C91 or 680035C91

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression, second groove, order kit 674727C91 or 680035C91

1шт.

7

NSS

NOT SOLD SEPARAT

RING - oil regulating, piston, order kit 674727C91 or 680035C91

1шт.

8

612000C1

SLEEVE

- cylinder, 0.002 oversize, engine serial number 71778 and after

6шт.

8

612001C1

SLEEVE

- cylinder, 0.010 oversize, engine serial number 71778 and after

6шт.

9

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING - connecting rod, standard, two halves

6шт.

9

367632R11

BEARING ASSY

BEARING - connecting rod, 0.002 undersize, two halves

6шт.

9

376666R11

BEARING ASSY

- connecting rod, 0.010 undersize, two halves

6шт.

9

376668R11

CONN. ROD SHELL

BEARING - connecting rod, 0.020 undersize, two halves

6шт.

9

367631R11

BEARING ASSY

- connecting rod, 0.030 undersize, two halves

6шт.

10

735237C91

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured (North America only), component parts do not apply to the remanufactured assembly

6шт.

1928147C1

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return rods for credit when using a remanufactured assembly

6шт.

10

306280R12

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 11, 12

6шт.

10

735237C91

REMAN-CONNECTING ROD

Reman for New PN 306280R12

6шт.

10

1928147C1

CORE-ROD CONNECTING

Return Number

6шт.

11

306708R1

BUSHING,28.28mm ID x 31.89mm OD x 33.33mm L

- piston pin

1шт.

12

316366R1

BOLT,3/8" - 24 x 2"

- connecting rod

2шт.
