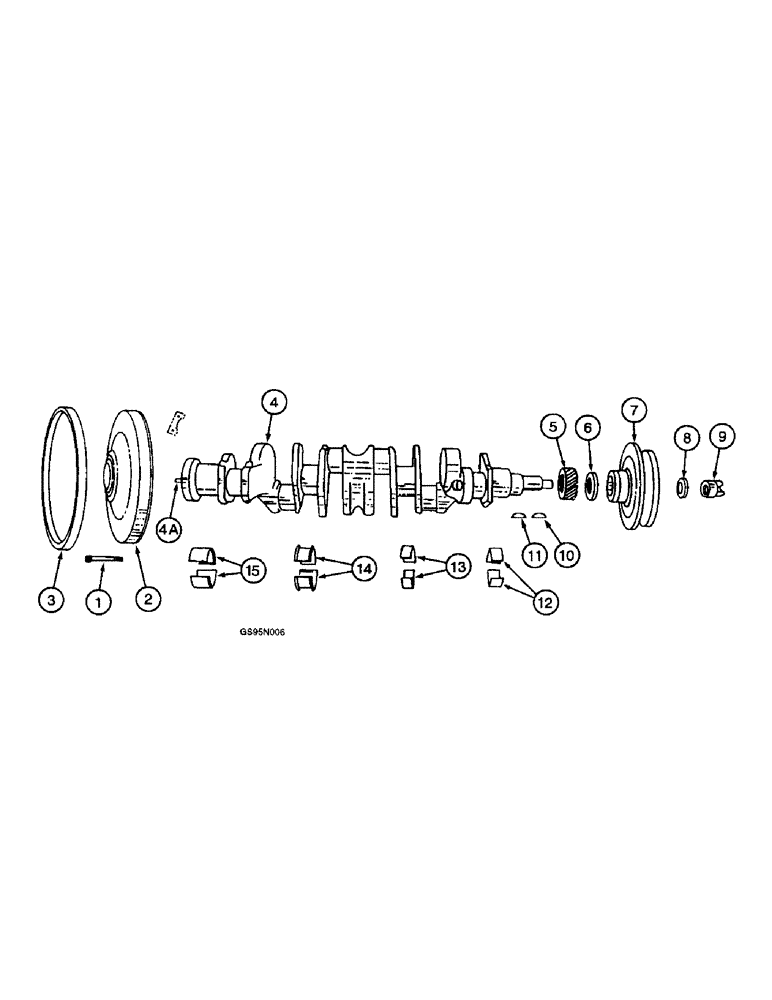

Запчасти Case IH D-282 (2-008) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

332136R1

BOLT (SPREADER),7/16" - 20 x 2 1/4"

BOLT - hex, 7/16 NC x 2-1/4 inch, used with 403 combines and 656 tractors with hydrostatic transmission

6шт.

1

323979R1

BOLT (SPREADER),Hex, 7/16" - 20 x 1.75"

BOLT - hex, 7/16 NC x 1-3/4 inch, used with 706 tractors, 615 combines, 416 and 422 cotton pickers

1шт.

1

601561C1

SPARE PART BOLT - hex, 7/16 NC x 2-1/4 inch, used with 656 tractors with gear drive, no longer available

6шт.

2

323751R11

SPARE PART FLYWHEEL ASSEMBLY - used with 403 combines

1шт.

2

678217C91

SPARE PART FLYWHEEL ASSEMBLY - used with 615 combines, no longer available

1шт.

2

323978R92

SPARE PART FLYWHEEL ASSEMBLY - used with 706 tractors

1шт.

2

388302R21

FLY JIB

FLYWHEEL ASSEMBLY - used with 656 tractors with gear drive, no longer available

1шт.

2

316138R11

FLYWHEEL

FLYWHEEL ASSEMBLY - used with 416 and 422 cotton pickers, no longer available

1шт.

537135R91

SPARE PART KIT - gear, flywheel service, no longer available (See Note), Includes: Ref. 3

1шт.

3

1818739C1

GEAR

GEAR - flywheel ring, used with 403 combines, 416 and 422 cotton pickers (Replaces gear 304439R1)

1шт.

3

308443R1

SPARE PART GEAR - flywheel ring, used with 615 combines

1шт.

3

396421R1

GEAR, RING

RING, GEAR GEAR - flywheel ring, used with 656 tractors with hydrostatic transmission

1шт.

3

367042R1

GEAR

GEAR - flywheel ring, used with 656 tractors with gear drive

1шт.

320188R93

CRANKSHAFT

CRANKSHAFT ASSEMBLY - standard, new, Includes: Crankshaft Bearing & Ref. 4, 4A

1шт.

735209C91

REMAN-CRANKSHAFT

Crankshaft Assembly - standard, remanufactured, component parts do not apply to the remanufactured assembly, no longer available

1шт.

1928163C1

CORE-CRANKSHAFT

Return Part Number - use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

749654C91

REMAN-CRANKSHAFT

Crankshaft

1шт.

1928175C1

CORE-CRANKSHAFT

Return Part Number

1шт.

367630R91

SPARE PART BEARING - crankshaft, no longer available

1шт.

382357R91

CRANKSHAFT BEARING

KIT - bearing, crankshaft

1шт.

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

BEARING - crankshaft

1шт.

4

NSS

NOT SOLD SEPARAT

CRANKSHAFT - standard, order crankshaft assembly 320188R93

1шт.

4a

82970R1

STUD

PIN - flywheel to crankshaft dowel

1шт.

320186R91

SPARE PART KIT - crankshaft with bearing, undersize, consists of six connecting rod bearings, four crankshaft bearings and crankshaft, no longer available

1шт.

5

367272R1

PINION

GEAR - crankshaft

1шт.

6

71763R2

DEFLECTOR

SLINGER - crankshaft oil

1шт.

7

372203R2

PULLEY

DAMPER - vibration, used with 403 combines, order damper 338952R91, no longer available

1шт.

7

702136C1

DAMPER

DAMPER - vibration, used with International 656 tractors with gear drive, no longer available

1шт.

7

347826R91

DAMPER

DAMPER - vibration, used with 615 combines, 706 tractors, 656 tractors with hydrostatic transmission and Farmall 656 tractors with gear drive

1шт.

7

338952R91

PULLEY

DAMPER - vibration, engines having serial numbers, Serial Range: 46441-49663

1шт.

7

338949R91

DAMPER

DAMPER - vibration, 416 and 422 cotton pickers, no longer available

1шт.

8

70109R1

WASHER

WASHER - starting crankshaft nut, no longer available

1шт.

9

425-1516

JAM NUT,Jam, 1"-14, G5

NUT - crankshaft, hex jam, 1 inch NF (Replaces nuts 231734V, 219760 and 111766H)

1шт.

10

126-136

WOODRUFF KEY,#23, 5/16" x 1 3/8", HT

KEY - Woodruff, fan drive pulley, 5/16 x 1-3/8 inch, No. 23

1шт.

11

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

WOODRUFF KEY, , Crankshaft gear #13, 3/16" x 1", HT

1шт.

12

367276R91

BEARING LINER

BEARING - crankshaft front, 2 halves, standard

2шт.

Included in Crankshaft Bearing Kit 367275R91

1шт.

Included in Crankshaft Bearing Kit 382357R91

1шт.

12

367300R91

CRANKSHAFT BEARING

BEARING - crankshaft front, 2 halves, 0.002 undersize

2шт.

12

376670R91

BEARING ASSY

BEARING - crankshaft front, 2 halves, 0.010 undersize

1шт.

12

376683R91

BEARING ASSY

BEARING - crankshaft front, 2 halves, 0.020 undersize

1шт.

12

367288R91

BEARING ASSY

BEARING - crankshaft front, 2 halves, 0.030 undersize

1шт.

13

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

BEARING - crankshaft intermediate, 2 halves, standard

1шт.

Included in Crankshaft Bearing Kit 367275R91

1шт.

Included in Crankshaft Bearing Kit 382357R91

1шт.

13

367303R91

BEARING ASSY

BEARING - crankshaft intermediate, 2 halves, 0.002 undersize

1шт.

13

376673R91

BEARING ASSY

BEARING - crankshaft intermediate, 2 halves, 0.010 undersize

1шт.

13

376686R91

BEARING ASSY

BEARING - crankshaft intermediate, 2 halves, 0.020 undersize

1шт.

13

367291R91

BEARING

BEARING - crankshaft intermediate, 2 halves, 0.030 undersize

1шт.

14

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

BEARING - crankshaft intermediate rear, 2 halves, standard, engine serial numbers, Serial Range: prior-44822

1шт.

Included in Crankshaft Bearing Kit 367275R91

1шт.

14

332267R91

BEARING SET

BEARING - crankshaft intermediate rear, 2 halves, standard, engine serial number 44822 and after

1шт.

Included in Crankshaft Bearing Kit 382357R91

1шт.

14

367306R91

BEARING ASSY

BEARING - crankshaft intermediate rear, 2 halves, 0.002 undersize, engine serial numbers, Serial Range: prior-44822

1шт.

14

332273R91

BEARING SET

BEARING - crankshaft intermediate, 2 halves, 0.002 undersize, engine serial number 44822 and after

1шт.

14

376676R91

JOURNAL

BEARING - crankshaft intermediate rear, 2 halves, 0.010 undersize, engine serial numbers, Serial Range: prior-44822

1шт.

14

332276R91

BEARING SET

BEARING - crankshaft intermediate rear, 2 halves, 0.010 undersize, engine serial number 44822 and after

1шт.

14

376689R91

BEARING ASSY

BEARING - crankshaft intermediate rear, 2 halves, 0.020 undersize, engine serial numbers, Serial Range: prior-44822

1шт.

14

332279R91

BEARING SET

BEARING - crankshaft intermediate rear, 2 halves, 0.020 undersize, engine serial number 44822 and after

1шт.

14

367294R91

BEARING ASSY

BEARING - crankshaft intermediate rear, 2 halves, 0.030 undersize, engine serial numbers, Serial Range: prior-44822

1шт.

14

332270R91

BEARING SET

BEARING - crankshaft intermediate rear, 2 halves, 0.030 undersize, engine serial number 44822 and after

1шт.

15

367285R91

BEARING

BEARING - crankshaft rear, 2 halves, standard

2шт.

Included in Crankshaft Bearing Kit 367275R91

1шт.

Included in Crankshaft Bearing Kit 382357R91

1шт.

15

367309R91

BEARING ASSY

BEARING - crankshaft rear, 2 halves, 0.002 undersize

2шт.

15

376679R91

BEARING ASSY

BEARING - crankshaft rear, 2 halves, 0.010 undersize

2шт.

15

376692R91

BEARING ASSY

BEARING - crankshaft rear, 2 halves, 0.020 undersize

1шт.

15

367297R91

BEARING ASSY

BEARING - crankshaft rear, 2 halves, 0.030 undersize

1шт.

367275R91

KIT

KIT - crankshaft, standard, engine serial numbers prior to 44822, no longer available, order components

1шт.

382357R91

CRANKSHAFT BEARING

KIT - crankshaft, standard, engine serial number 44822 and after, no longer available, order components

1шт.

532249R91

CLUTCH ASSEMBLY

KIT - drive plate assembly service, includes instructions, consists of one drive plate, six 324711R1 screws, six 615890C1 washers and lubricant

1шт.
