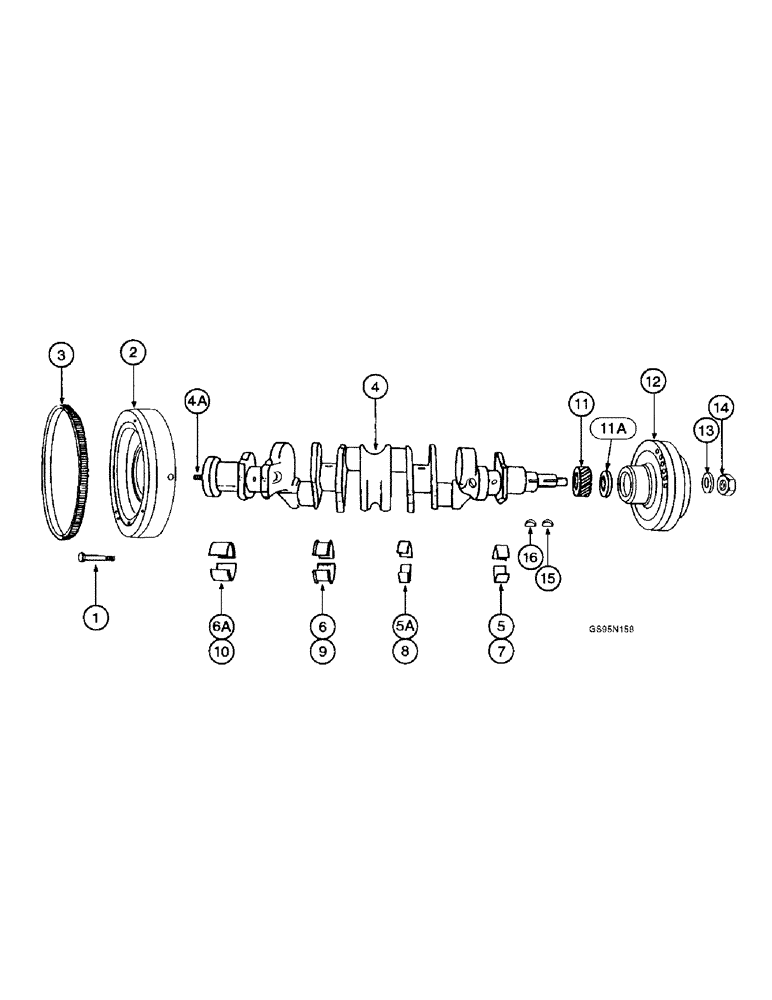

Запчасти Case IH D-236 (4-06) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

323979R1

BOLT (SPREADER),Hex, 7/16" - 20 x 1.75"

BOLT -, Serial Range: flywheel-crankshaft

6шт.

2

312507R11

FLYWHEEL ASSEMBLY - crankshaft, Includes: Ref. 3, no longer available

1шт.

3

308443R1

GEAR - flywheel ring, 109 tooth

1шт.

735215C91

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - standard, remanufactured (North America only), component parts do not apply to the remanufactured assembly, no longer available

1шт.

1928169C1

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly

1шт.

382355R91

CRANKSHAFT

ASSEMBLY - standard, new, no longer available

1шт.

367270R92

KIT - crankshaft, undersize, Includes: Ref. 4 - 9, no longer available

1шт.

4

NSS

NOT SOLD SEPARAT

CRANKSHAFT - order crankshaft assembly

1шт.

4a

82970R1

STUD

PIN - flywheel to crankshaft dowel, used with crankshaft 382355R91

1шт.

367630R91

BEARING - standard, no longer available

1шт.

382357R91

CRANKSHAFT BEARING

KIT - bearing, crankshaft, standard, Includes: Ref. 5 - 6A, no longer available, order components

1шт.

5

367276R91

BEARING LINER

BEARING - crankshaft front, two halves, standard

1шт.

Included in Standard Crankshaft Kit 3677275R91

1шт.

5a

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

- crankshaft intermediate front, two halves, standard (Replaces bearing 367379R91)

1шт.

Included in Standard Crankshaft Kit 3677275R91

1шт.

NOTE;REF#5A (B92224)IS ACTUALLY A THERMOSTAT. 5/29/98

1шт.

6

332267R91

BEARING SET

BEARING - crankshaft thrust rear, two halves, standard

1шт.

6

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

- crankshaft thrust front, two halves, standard

1шт.

Included in Standard Crankshaft Kit 3677275R91

1шт.

6a

367285R91

BEARING

- crankshaft rear, two halves, standard

1шт.

Included in Standard Crankshaft Kit 3677275R91

1шт.

382359R91

BEARING

KIT - bearing, crankshaft, 0.002 inch undersize, Includes: Ref. 7 - 9, no longer available, order components

1шт.

382360R91

CRANKSHAFT BEARING

KIT - bearing, crankshaft, 0.010 inch undersize, Includes: Ref. 7 - 9, no longer available, order components

1шт.

382361R91

BEARING SET

KIT - bearing, crankshaft, 0.020 inch undersize, Includes: Ref. 7 - 9, no longer available, order components

1шт.

382358R91

BEARING

KIT - bearing, crankshaft, 0.030 inch undersize, Includes: Ref. 7 - 9, no longer available, order components

1шт.

7

367300R91

CRANKSHAFT BEARING

BEARING - crankshaft front, two halves, 0.002 inch undersize

1шт.

7

376670R91

BEARING ASSY

BEARING - crankshaft front, two halves, 0.010 inch undersize

1шт.

7

376683R91

BEARING ASSY

BEARING - crankshaft front, two halves, 0.020 inch undersize

1шт.

7

367288R91

BEARING ASSY

- crankshaft front, two halves, 0.030 inch undersize

1шт.

8

367303R91

BEARING ASSY

BEARING - crankshaft intermediate front, two halves, 0.002 inch undersize

1шт.

8

376673R91

BEARING ASSY

BEARING - crankshaft intermediate front, two halves, 0.010 inch undersize

1шт.

8

376686R91

BEARING ASSY

BEARING - crankshaft intermediate front, two halves, 0.020 inch undersize

1шт.

8

367291R91

BEARING

- crankshaft intermediate front, two halves, 0.030 inch undersize

1шт.

9

332273R91

BEARING SET

- crankshaft thrust rear, two halves, 0.002 inch undersize

1шт.

9

332276R91

BEARING SET

- crankshaft thrust rear, two halves, 0.010 inch undersize

1шт.

9

332279R91

BEARING SET

- crankshaft thrust rear, two halves, 0.020 inch undersize

1шт.

9

332270R91

BEARING SET

- crankshaft thrust rear, two halves, 0.030 inch undersize

1шт.

3677275R91

KIT - crankshaft, standard, Includes: Ref. 5, 5A, 6, 6A

1шт.

10

367309R91

BEARING ASSY

- crankshaft rear, two halves, 0.002 inch undersize

1шт.

10

376679R91

BEARING ASSY

BEARING - crankshaft rear, two halves, 0.010 inch undersize

1шт.

10

376692R91

BEARING ASSY

BEARING - crankshaft rear, two halves, 0.020 inch undersize

1шт.

10

367297R91

BEARING ASSY

- crankshaft rear, two halves, 0.030 inch undersize

1шт.

11

367272R1

PINION

GEAR - crankshaft

1шт.

11a

71763R2

DEFLECTOR

SLINGER - crankshaft oil

1шт.

12

338952R91

PULLEY

DAMPER - crankshaft

1шт.

13

70109R1

WASHER

- starting crank nut, no longer available, order components

1шт.

14

425-1516

JAM NUT,Jam, 1"-14, G5

- starting crank, hex jam, 1 inch NF (Replaces nut 23174V)

1шт.

15

126-136

WOODRUFF KEY,#23, 5/16" x 1 3/8", HT

KEY - Woodruff, 5/16 x 1-3/8 inch, No. 23, damper and pulley

1шт.

16

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

Crankshaft gear #13, 3/16" x 1", HT

1шт.
