Запчасти Case IH D-236 (4-04) - CRANKCASE FRONT COVER AND IDLER GEAR

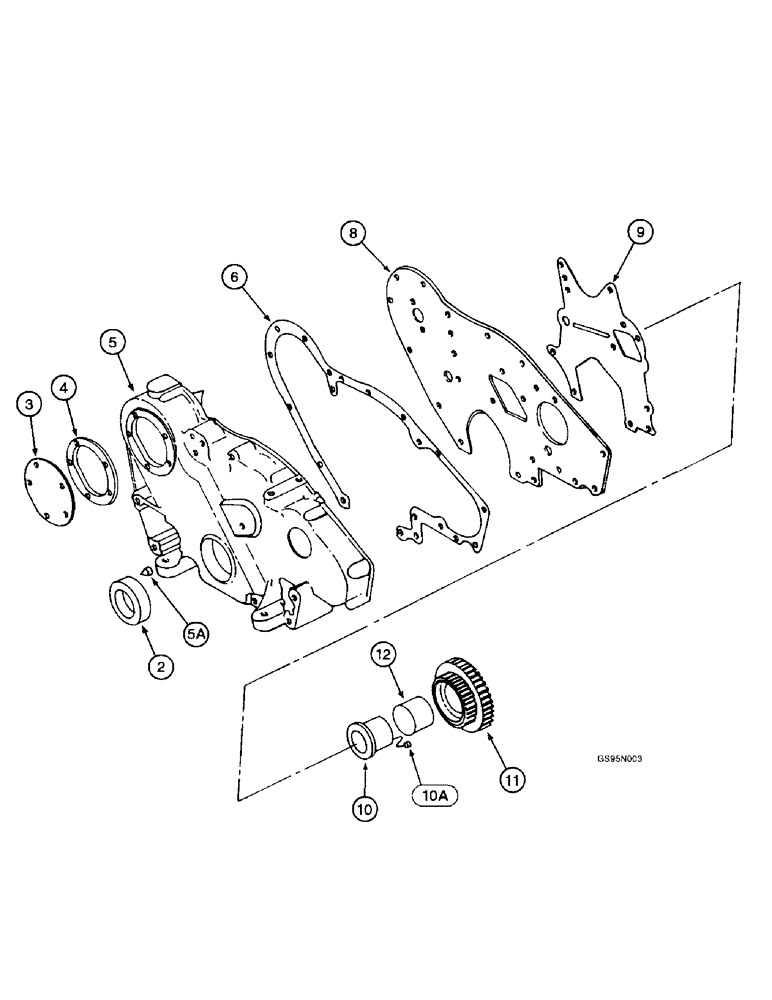

Схема запчастей Case IH D-236 - (4-04) - CRANKCASE FRONT COVER AND IDLER GEAR
12
8
10
9
4
11
5
6
5a
2
10a
3

Артикул

Название

Примечание

Количество

2

317549R91

OIL SEAL,58.22mm ID x 85.27mm OD x 12.27mm Thk

- crankshaft oil

1шт.

3

278269R1

COVER ASSY

COVER - injection pump gear, no longer available

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - hex, 5/16 NC x 3/4 inch (Replaces screw 179814)

5шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

5шт.

4

278270R3

GASKET

- injection pump gear cover

1шт.

5

312505R31

COVER

ASSEMBLY - crankcase front, Includes: Ref. 5A, no longer available

1шт.

5a

367572R1

INDICATOR

POINTER - timing

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch (Replaces screw 179883)

3шт.

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch (Replaces screw 179893)

5шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch (Replaces bolt 179839)

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

8шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

6шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch (Replaces bolt 271567)

1шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut 102639) 5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 103325) 5/8"

1шт.

6

312506R1

GASKET

- crankcase front cover

1шт.

7

264723R1

NUT - spline, not shown, no longer available

1шт.

8

612181C11

PLATE - crankcase front, no longer available

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

9

278265R1

GASKET

- crankcase front plate

1шт.

10

367580R11

HUB

SHAFT ASSEMBLY - idler gear, includes dowel, item 13, no longer available

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch (Replaces screw 179890)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

1шт.

11

278263R11

PINION

GEAR ASSEMBLY - idler, Includes: Ref. 12, no longer available

1шт.

12

367578R1

BUSHING

- idler gear

1шт.

13

NLS

NO LONGER SERVICED

DOWEL - idler gear shaft, 3/16 x 7/16 inch (Replaces dowel 141150)

1шт.

Выбрано товаров: 27
