Запчасти Case IH D-236 (4-02) - CRANKCASE AND RELATED PARTS

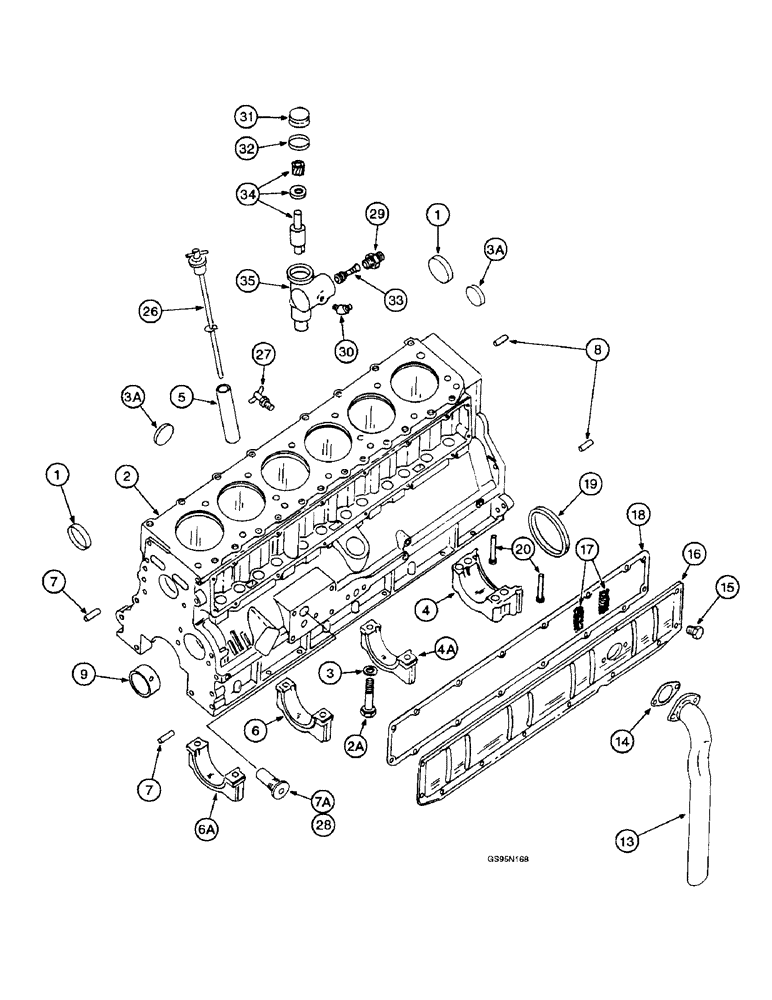

Схема запчастей Case IH D-236 - (4-02) - CRANKCASE AND RELATED PARTS
2
34
1
4
15
20
17
7
19
32
28
27
3a
13
9
35
7
3a
5
6
8
18
33
3
16
14
26
2a
6a
29
7a
31
1
4a
30

Артикул

Название

Примечание

Количество

612017C92

CRANKCASE ASSEMBLY - will work for 601776C91, used with engine serial numbers prior to 16026, Includes: Ref. 1- 9

1шт.

1

41-1632

PLUG,Cup, 2", Stainless

- cup type, 2 inch diameter, core hole (Replaces plug 20840R1)

2шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE - order crankcase assembly 612017C92

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - crankcase, order crankcase assembly 612017C92

1шт.

2a

328512R1

BOLT (SPREADER),1/2" - 13 x 3 1/4"

BOLT - crankshaft bearing cap

10шт.

3

345409R1

WASHER,13.84mm ID x 25.4mm OD x 2.34mm Thk

- crankshaft bearing cap bolt

10шт.

50410DA

PLUG

- hex socket, 1/8 inch PT

1шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket, 3/8 inch PT (Replaces plug 444782)

2шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- crankcase, hex socket, 1/8 inch PT (Replaces plug 445684)

3шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

3a

41-1626

PLUG,Cup, 1 5/8", Stainless

- core hole (Replaces plug 70128R1)

6шт.

4

306674R1

CAP - crankshaft rear bearing, partially finished, see service manual

1шт.

4a

306673R1

CYLINDER END CAP

CAP - crankshaft rear intermediate, partially finished, see service manual

1шт.

5

368985R2

TUBE

- oil filler

1шт.

6

306672R1

CYLINDER END CAP

CAP - crankshaft front intermediate, partially finished, see service manual

1шт.

6a

306671R1

CAP - crankshaft front, partially finished, see service manual

1шт.

7

37-1820

DOWEL,1/2" x 1 1/4"

PIN - crankcase front plate and cover, dowel, 1/2 x 1-1/4 inch, hardened (Replaces dowel 141285)

2шт.

7a

612092C91

LOCK VALVE

VALVE ASSEMBLY - oil pressure regulating, engine serial numbers 15401 to 16026, no longer available

1шт.

349055R2

RING

O-RING - oil pressure regulating valve

1шт.

8

371699R2

STUD

DOWEL - engine rear support

2шт.

9

70259R2

BUSHING

BEARING - camshaft front

1шт.

9

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

BEARING - camshaft intermediate front

1шт.

9

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

BEARING - camshaft intermediate rear

1шт.

9

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BEARING - camshaft rear

1шт.

13

368429R31

VENTILATION PIPE

PIPE - breather, no longer available

1шт.

374587R91

SCREW - breater pipe, includes washer, no longer available

2шт.

14

369981R1

GASKET

- breather pipe

1шт.

15

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW - push rod cover, includes washer

16шт.

16

315970R91

PLATE ASSY.

COVER ASSEMBLY - push rod, Includes: Ref. 17, no longer available

1шт.

17

349363R1

FILTER CARTRIDGE

ELEMENT - breather (Replaces element 315849R1)

2шт.

18

369982R1

GASKET

- push rod cover

1шт.

19

538983R1

OIL SEAL,99.44mm ID x 116.03mm OD x 9.53mm Thk

- crankshaft rear oil, will work for 403066R91

1шт.

20

310665R1

PLUG

- rear bearing cap filler

2шт.

26

368986R91

GAUGE ASSY.

GAUGE - oil level

1шт.

27

9982T

COCK

VALVE - drain, 1/4 inch

1шт.

27

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 444618)

1шт.

28

341195R92

VALVE

- oil pressure regulating, engine serial number 16027 and after

1шт.

670186C91

SUPPORT ASSEMBLY - oil pump shaft and tachometer drive (Replaces support assembly 349384R91), Includes: Ref. 29 - 35, no longer available

1шт.

29

368246R1

CONNECTION

HOUSING - tachometer connection

1шт.

30

62022R91

FITTING

- lubrication, no longer available

1шт.

31

A42013

PLUG

- oil pump shaft support housing (Replaces plug 172557)

1шт.

32

312162R1

PLATE ASSY.

PLATE - thrust

1шт.

349055R2

RING

O-RING - 13/16 x 1 x 3/32

1шт.

33

368245R12

PINION

GEAR - tachometer drive

1шт.

34

312159R11

SHAFT

- tachometer drive

1шт.

35

312158R1

HOUSING

- oil pump shaft support, no longer available

1шт.

Выбрано товаров: 46
