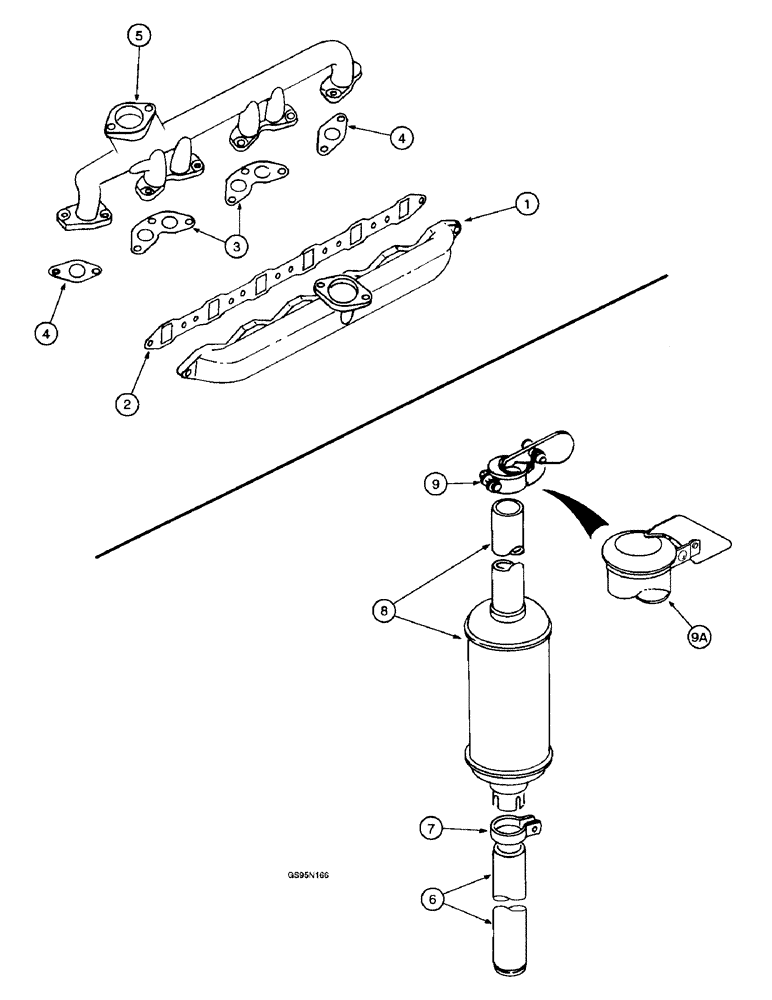

Запчасти Case IH D-236 (4-54) - INTAKE AND EXHAUST MANIFOLD / EXHAUST SYSTEM

1

332110R11

MANIFOLD

- intake, no longer available

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

12шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

12шт.

2

305804R1

MANIFOLD GASKET

- intake manifold

1шт.

3

278314R1

MANIFOLD GASKET

- exhaust manifold, center

2шт.

4

278313R3

MANIFOLD GASKET

- exhaust manifold, end

2шт.

5

278643R2

PIPE

MANIFOLD - exhaust

1шт.

39524DA

NUT

- exhaust manifold stud

10шт.

113934H

WASHER

- exhaust manifold stud

4шт.

6

664386R1

PIPE

- exhaust, no longer available

1шт.

7

1502294C1

CLAMP

- exhaust muffler (Replaces clamp 350602R1)

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex, 3/8 NC x 1-3/8 inch (Replaces screw 180125)

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

8

403551R1

MUFFLER

- exhaust (Replaces muffler 384346R92)

1шт.

8

403551R1GV

MUFFLER

Value, Muffler

1шт.

9

321574R91

PLUG

CAP - exhaust, no longer available, order exhaust cap D28028

1шт.

9a

D28028

CAP

- exhaust (Replaces cap 321574R91)

1шт.
