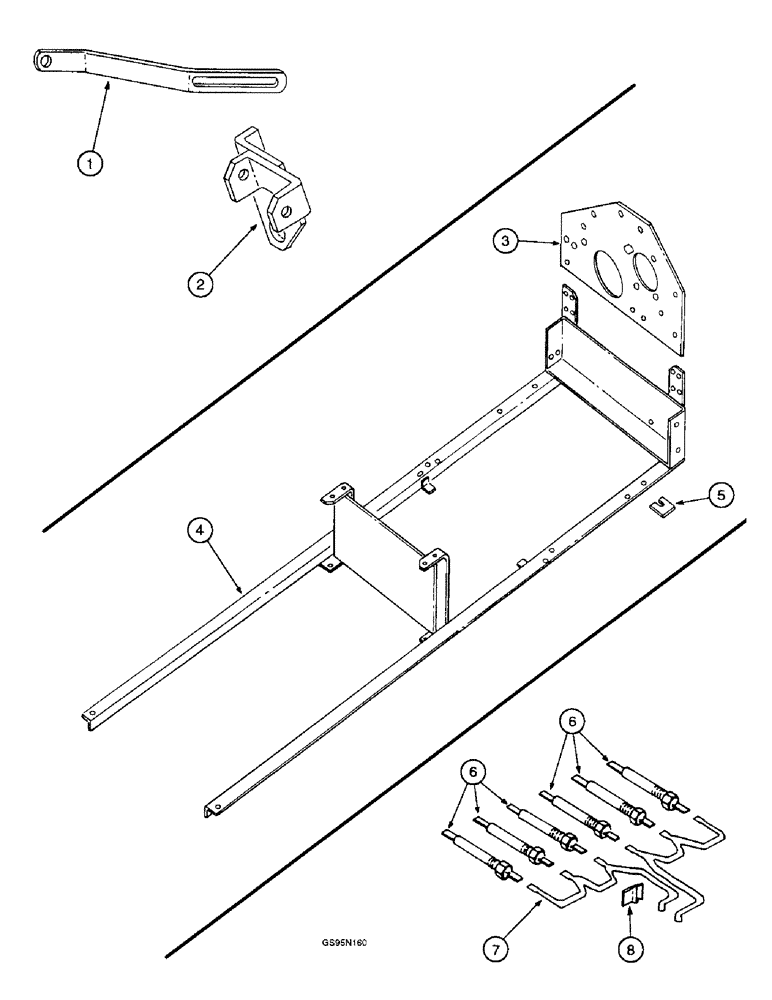

Запчасти Case IH D-236 (4-52) - ALTERNATOR-GENERATOR MOUNTING BRACKETS / ENGINE SUPPORT / GLOW PLUGS & CABLES

1

393775R1

BRACE - alternator-generator

1шт.

326-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/8 inch (Replaces bolt 180080)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch (Replaces washer 21496R1)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

2

393774R22

BRACKET

- alternator-generator mounting

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

326-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/8 inch (Replaces bolt 180080)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

312509R21

PLATE - rear engine support, no longer available

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Replaces bolt 179887) Hex, 1/2"-13 x 1 3/4", G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 102637) 1/2"-13, G5

4шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

(Replaces 179858) Hex, 7/16"-14 x 1", G5, Full Thd

4шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

4шт.

428-107

NUT - hex, 7/16 inch NC (Replaces nut 271500)

4шт.

4

165785C92

FRAME - engine support, no longer available

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carrage, 3/8 NC x 1 inch (Replaces bolt 17351R1)

3шт.

412-620

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

BOLT - hex, 3/8 NC x 1-1/4 inch (Replaces bolt 18684R1)

1шт.

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch, grade 2 (Replaces bolt 18474R1)

1шт.

424-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 2

- hex, 1/2 NC x 1-1/2 inch, grade 2 (Replaces bolt 18496R1)

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 120378) 1/2"-13, G5

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

1шт.

271718

SPECIAL WASHER

SCREW - hex, 5/8 NC x 1-3/8 inch, no longer available

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch (Replaces bolt 271548)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer 120382) 3/8"

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch (Replaces washer 614452R1)

3шт.

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch (Replaces washer 21375R1)

4шт.

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch (Replaces washer 607895R1)

4шт.

5

570012R1

STRIP - engine support frame shim

6шт.

6

304131R3

GLOW PLUG

PLUG - glow (Replaces plugs 343894R1 and 343977R1)

6шт.

6

343894R1

GLOW PLUG

PLUG - glow, no longer used, order plug 304131R3

6шт.

6

343977R1

GLOW PLUG

PLUG - glow, no longer used, order plug 304131R3

6шт.

7

319965R91

HARNESS

- glow plug cable

2шт.

8

1998754

BLOCK

- junction (Replaces junction block 42915D)

1шт.
