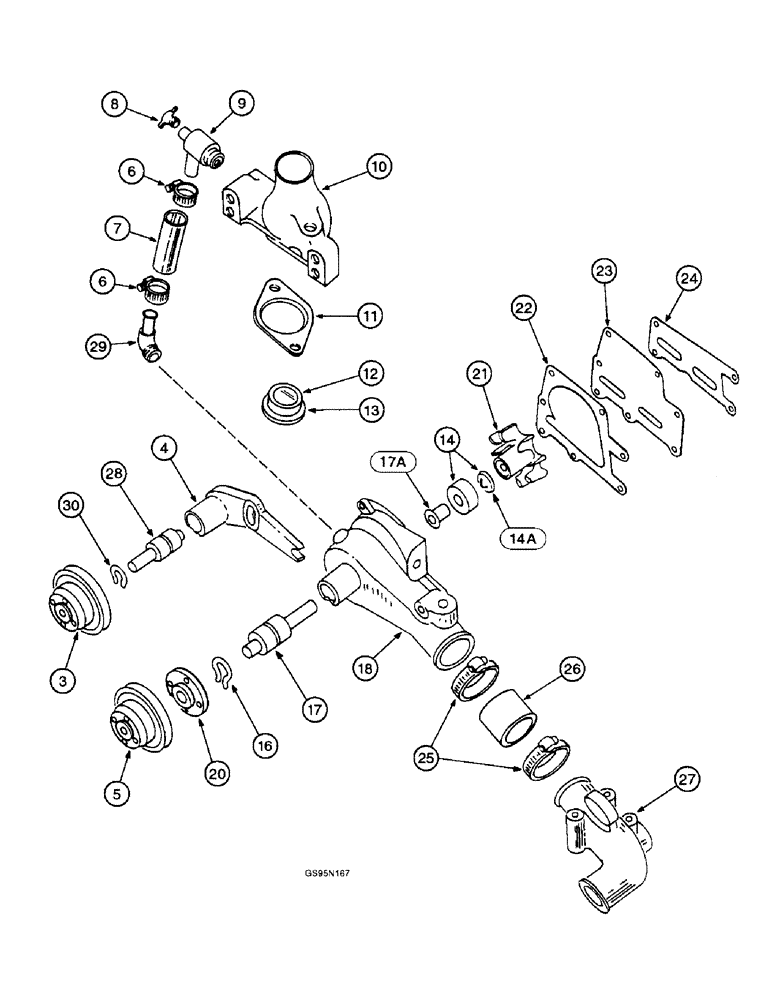

Запчасти Case IH D-236 (4-50) - THERMOSTAT AND WATER PUMP

3

396899R1

PULLEY

PULLEY - fan, no longer available

1шт.

4

379654R3

BRACKET

ADJUSTER - fan pulley, no longer available

1шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

BOLT, (Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

BOLT - hex, 1/2 NC x 3-1/2 inch (Replaces bolt 180193)

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

446230

WASHER

WASHER - flat, 9/16 x 1-1/4 x 7/64 inch, no longer used

2шт.

5

368502R1

PULLEY

PULLEY - water pump

1шт.

26080R1

BOLT,Hex, 1/4" - 28 x 1/2", Gr 8

SCREW - hex, 1/4 NC x 1/2 inch (Replaces screw 181309)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer 103319) 1/4"

4шт.

6

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable, Water pump by-pass hose (Replaces clamp 274085R91) #10, 0.56/1.06 Type F Worm

2шт.

7

437575C3

HOSE,0.63" ID x 6.50", SAE 30R1

Water Pump By-Pass, Replaces Elbow 169192R1

1шт.

8

538V

SPARE PART STEM - water pump by-pass valve

1шт.

9

320275R1

ELBOW UNION

Union Elbow ELBOW - 90 degree x 1/2 inch NPT (Replaces elbow 303483R1)

1шт.

10

278279R2

HOUSING

HOUSING - thermostat, will work for 306627R1, no longer available

1шт.

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

BOLT, (Replaces 179869) Hex, 7/16"-14 x 2 3/4", G5

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

2шт.

11

278280R2

GASKET

GASKET - thermostat housing

1шт.

12

262882R1

GASKET

SEAL - thermostat

1шт.

13

313942R92

THERMOSTAT

THERMOSTAT - 170-190 degree Fahrenheit

1шт.

601816C92

PUMP

PUMP ASSEMBLY - water, new, Includes: Ref. 14 - 23

1шт.

749170C91

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

1928129C1

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

14

687161C92

KIT

KIT - seal, water pump (Replaces kits 607467C91, 701331C93 and 688870C1), Includes: Ref. 14A

1шт.

14a

NSS

NOT SOLD SEPARAT

SEAT - water pump seal, order kit 687161C92

1шт.

14a

NSS

NOT SOLD SEPARAT

SEAL - water pump, order kit 687161C92

1шт.

16

102069H

RING

RING - bearing

2шт.

17

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT ASSEMBLY - water pump, includes bearing, Includes: Ref. 17A

1шт.

17a

151207R1

SLINGER

SLINGER - water pump (Replaces slinger 71315R1)

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - water pump, order water pump assembly 601816C92

1шт.

20

368501R2

HUB CAP

HUB - pulley

1шт.

21

387931R1

TORQ CONV IMPELLER

IMPELLER - water pump, also order seal kit 687161C92

1шт.

22

69674R1

GASKET

GASKET - water pump plate

1шт.

23

69675R1

PLATE

PLATE - water pump

1шт.

441444

SPARE PART

SCREW - machine, pan head, 1/4 NC x 1/2 inch, no longer used

3шт.

24

69676R2

GASKET

GASKET - water pump

1шт.

25

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Water pump inlet hose, Adjustable (Replaces clamp 279038R91) #32, 1.56/2.50 Type F Worm

2шт.

26

407008R1

HOSE,50.8mm ID x 914.4mm L

HOSE - water pump inlet, 2 inch ID x 1-3/4 inch long

1шт.

27

278278R2

SPARE PART ELBOW - water inlet, no longer available

1шт.

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - hex, 3/8 NC x 2-3/4 inch (Replaces bolt 179850)

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

3шт.

28

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

SHAFT - fan adjuster, includes bearing (Replaces shaft ST634)

1шт.

29

278089R1

FITTING

ELBOW - water pump by-pass hose

1шт.

30

102069H

RING

RING - bearing

1шт.

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT - hex, 3/8 NC x 2-1/4 inch (Replaces screw 179848)

1шт.

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOLT - hex, 3/8 NC x 2-1/2 inch (Replaces screw 179849)

3шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

4шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket, 3/8 inch PT (Replaces plug 444660)

1шт.

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

PLUG - hex socket, 1/2 inch PT (Replaces plugs 438159 and 444788)

3шт.
