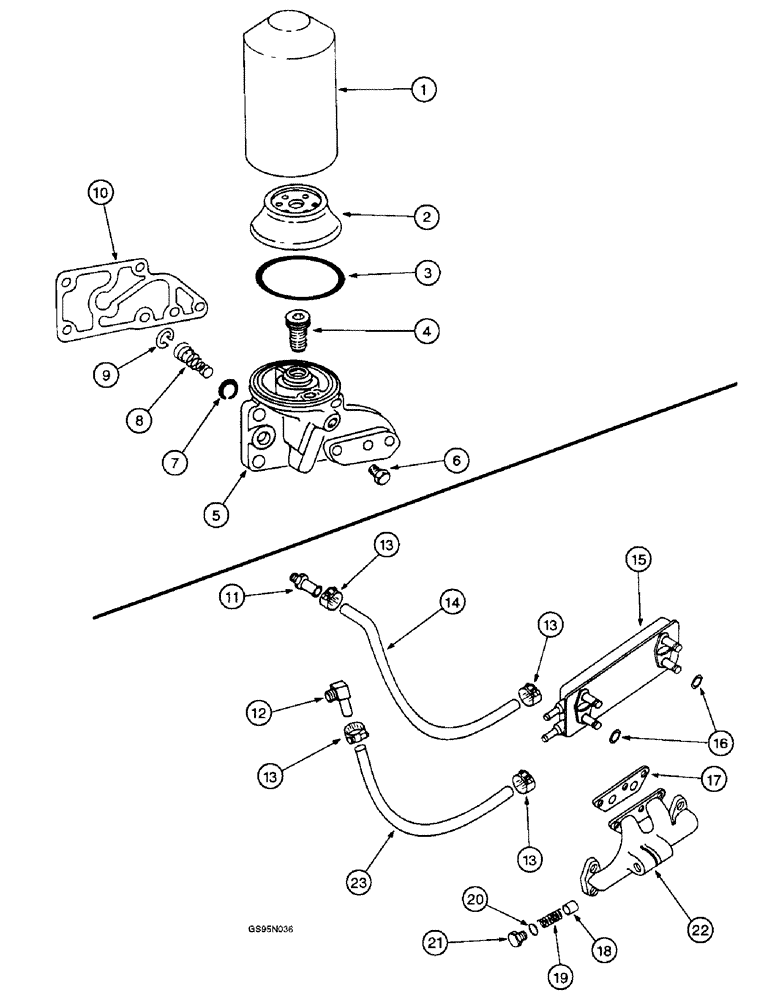

Запчасти Case IH D-236 (4-44) - LUBRICATING OIL FILTER, SPIN-ON TYPE / ENGINE OIL COOLER

674085C91

RESERVOIR, HYDRAULIC

FILTER ASSEMBLY - oil, Include: Ref. 1 - 9, no longer available as a unit, order components

1шт.

1

A184775

ENGINE OIL FILTER

FILTER - lubricating oil, 8 inch high (Replaces filter 675616C91)

1шт.

2

NSS

NOT SOLD SEPARAT

ADAPTER - spin-on filter, order kit 538837R91

1шт.

3

304854R1

RING

GASKET - oil filter adapter

1шт.

4

NSS

NOT SOLD SEPARAT

BOLT - filter base adapter, order kit 538837R91

1шт.

5

601789C11

BASE

ASSEMBLY - oil filter, no longer available

1шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- oil filter base, hex socket, 3/8 inch PT (Replaces plug 445673)

1шт.

21110R1

HEX SOC SCREW,5/16"-18 x 1 3/4"

- hex, 5/16 NC x 1-3/4 inch, no longer used

2шт.

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch (Replaces bolt 179860)

3шт.

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch (Replaces bolt 179866)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

4шт.

6

221-841

PLUG

- hex, 1/4 inch PT (Replaces plug 444618)

1шт.

7

534180R1

VALVE

- oil filter base

1шт.

8

384527R1

SPRING

- element by-pass

1шт.

9

100-21100

SNAP RING,1.00", Int, #100

Ring, Snap, (Replaces ring 303322R1) 1.00", Int, #100

1шт.

10

601790C2

GASKET

- oil filter base

1шт.

538837R91

KIT

- spin-on filter conversion, includes Ref. 2, 3, 4 & instructions

1шт.

11

320182R1

HOSE - water inlet hose, no longer available

1шт.

12

320275R1

ELBOW UNION

VALVE - water outlet hose

1шт.

13

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp 274085R91) #10, 0.56/1.06 Type F Worm

4шт.

14

321880R1

HOSE

- engine oil cooler water inlet

1шт.

15

279212R92

COOLER

ASSEMBLY - engine oil, if used, no longer available as a unit, order components

1шт.

3228132R1

COOLER

- oil

1шт.

349038R2

MANIFOLD GASKET

- oil cooler

1шт.

1810276C1

SPACER

- oil cooler

1шт.

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex, 7/16 NC x 2-1/4 inch

1шт.

61-33132

HEX SOC SCREW,5/16"-18 x 2"

BOLT - hex socket, 5/16 NC x 2 inch

1шт.

15

1810274C91

COOLER

ASSEMBLY - engine oil, if used, no longer available as a unit, order component parts (Replaces cooler 338905R91)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer 103320) 5/16"

4шт.

16

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Oil cooler to manifold -210, 70 Duro, .734" ID x .139" Thk

2шт.

17

304945R1

SPACER

- oil cooler manifold

1шт.

17

349038R2

MANIFOLD GASKET

- oil cooler manifold

2шт.

18

251400R1

VALVE

- oil cooler relief

1шт.

19

279163R1

SPRING

- relief valve, oil cooler

1шт.

20

251403R1

GASKET

- relief valve plug

1шт.

21

251402R1

PLUG

- relief valve

1шт.

22

279160R11

MANIFOLD - engine oil cooler

1шт.

23

312503R1

PIPE CLAMP

HOSE - engine oil cooler water outlet

1шт.
